Body base

Rear cross panel

Assembly diagrams

9 diagrams

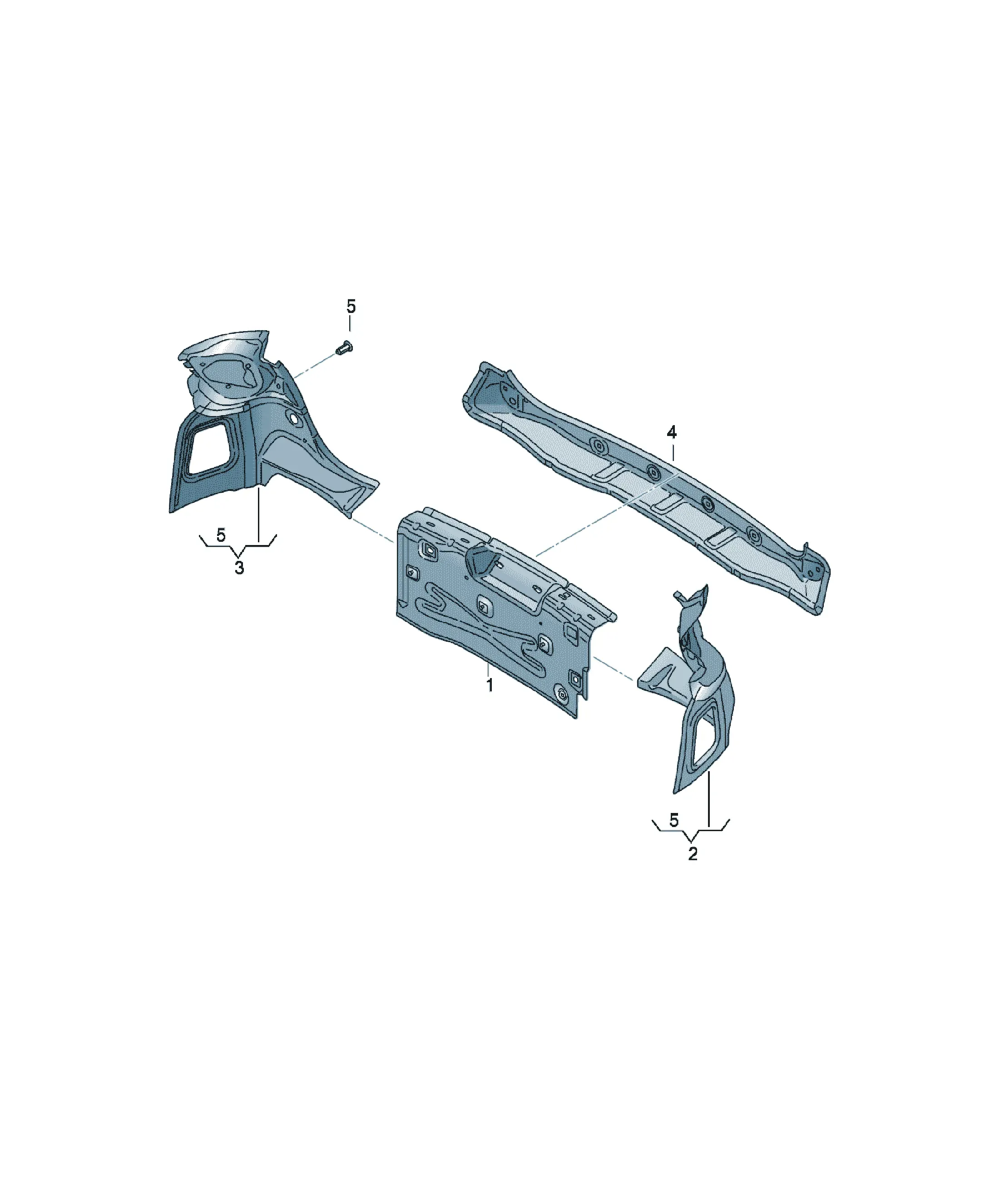

Rear cross panel diagram

Parts

7 parts

Приварной болт
N90652602 Offers

[Name] [Note] [QTY]
Weld screw 5X16 X
t-bolt
N90149504 Offers

[Name] [Note] [QTY]
t-bolt 5X10 X
6P8813303 Offers

[Name] [Note] [QTY]
Rear cross panel 1
use if required: N 901 495 04 3
N 906 526 02 1
Accompanying details: N 90149504; N 90652602
6J8813319 Offers

[Name] [Note] [QTY]
Mounting for tail light left 1
use if required: N 906 526 02 X
Accompanying details: N 90652602
6J8813320 Offers

[Name] [Note] [QTY]
Mounting for tail light right 1
use if required: N 906 526 02 X
Accompanying details: N 90652602
6J8813315 Offers

[Name] [QTY]
Cross member 1
Rear cross panel
WHT003567 Offers

[Name] [Note] [QTY]
rivetted cap nut M6/0,5-1-BV X
