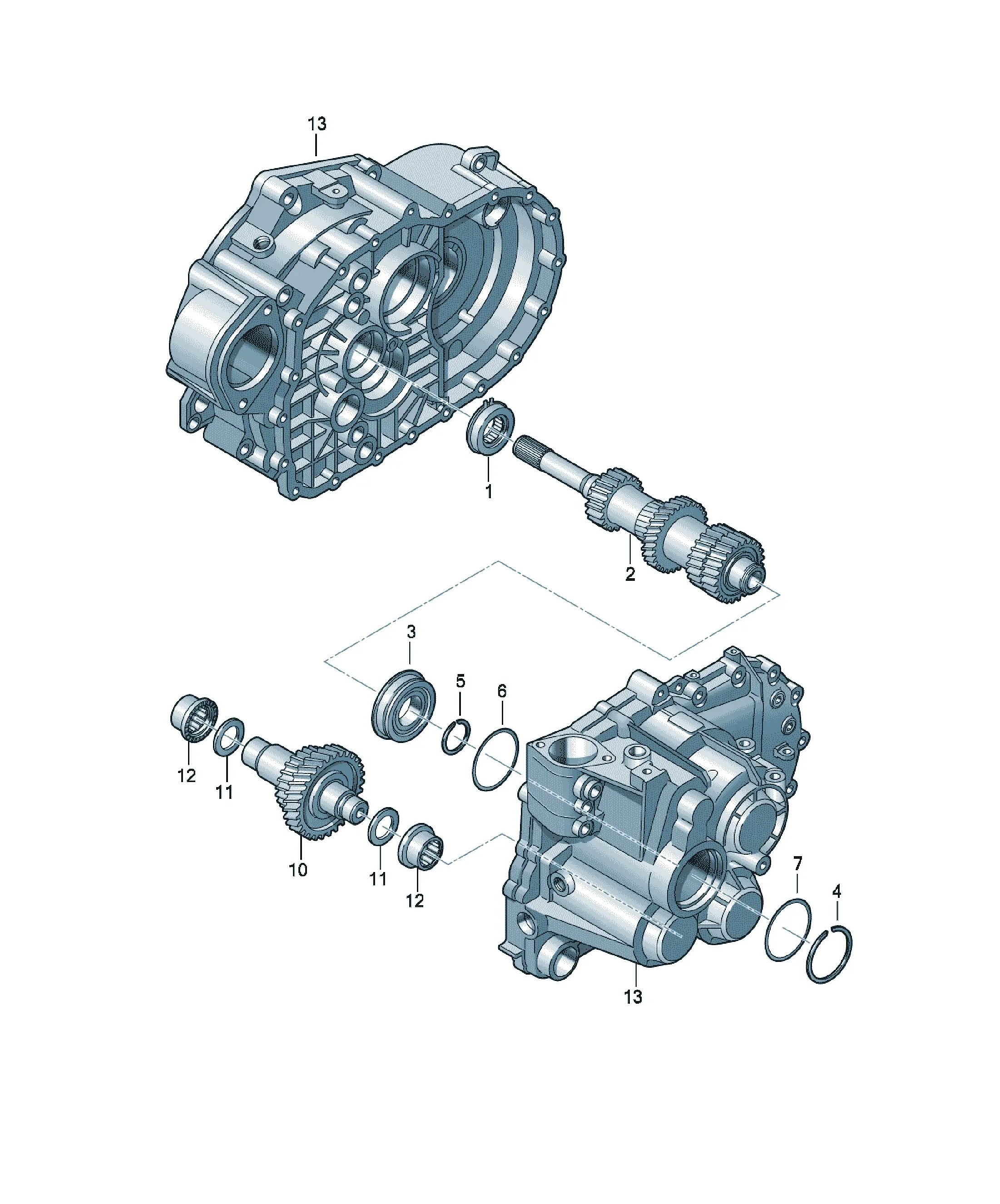

Gearbox output shaft

[Name] [Note] [QTY]

roller sleeve 55X32X18 1

Replacements: 02T311373L

[Name] [Note] [QTY]

reverse gear idler spindle Z=36+14 1

[Name] [Note] [QTY]

thrust washer 25,1X45X3,5 2

[Name] [Note] [QTY]

Needle bush 25X37+50X22,5 2

[Name] [Note]

Gear housing

see illustration: 301-015

[Name] [Note] [Model info] [QTY]

Input shaft 1st-6th gear LQU 1

Replacements: 02M311101EA

[Name] [Note] [Model info] [QTY]

Input shaft 1st-6th gear JBS,LHB 1

[Name] [Note] [Model info] [QTY]

Input shaft 1st-6th gear LXM 1

[Name] [Note] [QTY]

grooved ball bearing 30X72X27 1

Replacements: 02M311235K

[Name] [Note] [QTY]

Securing ring 69,4X2 1

[Name] [Note] [QTY]

1 set circlips 1,79-1,98 X

repair set

02M311187A Securing ring 27,2X33,6X1,98 1

02M311187B Securing ring 27,2X33,6X1,95 1

02M311187C Securing ring 27,2X33,6X1,92 1

02M311187D Securing ring 27,2X33,6X1,89 1

02M311187E Securing ring 27,2X33,6X1,86 1

02M311187F Securing ring 27,2X33,6X1,83 1

02M311187G Securing ring 27,2X33,6X1,79 1

[Name]

compensation washer

Not for this model

[Name]

compensation washer

Not for this model
