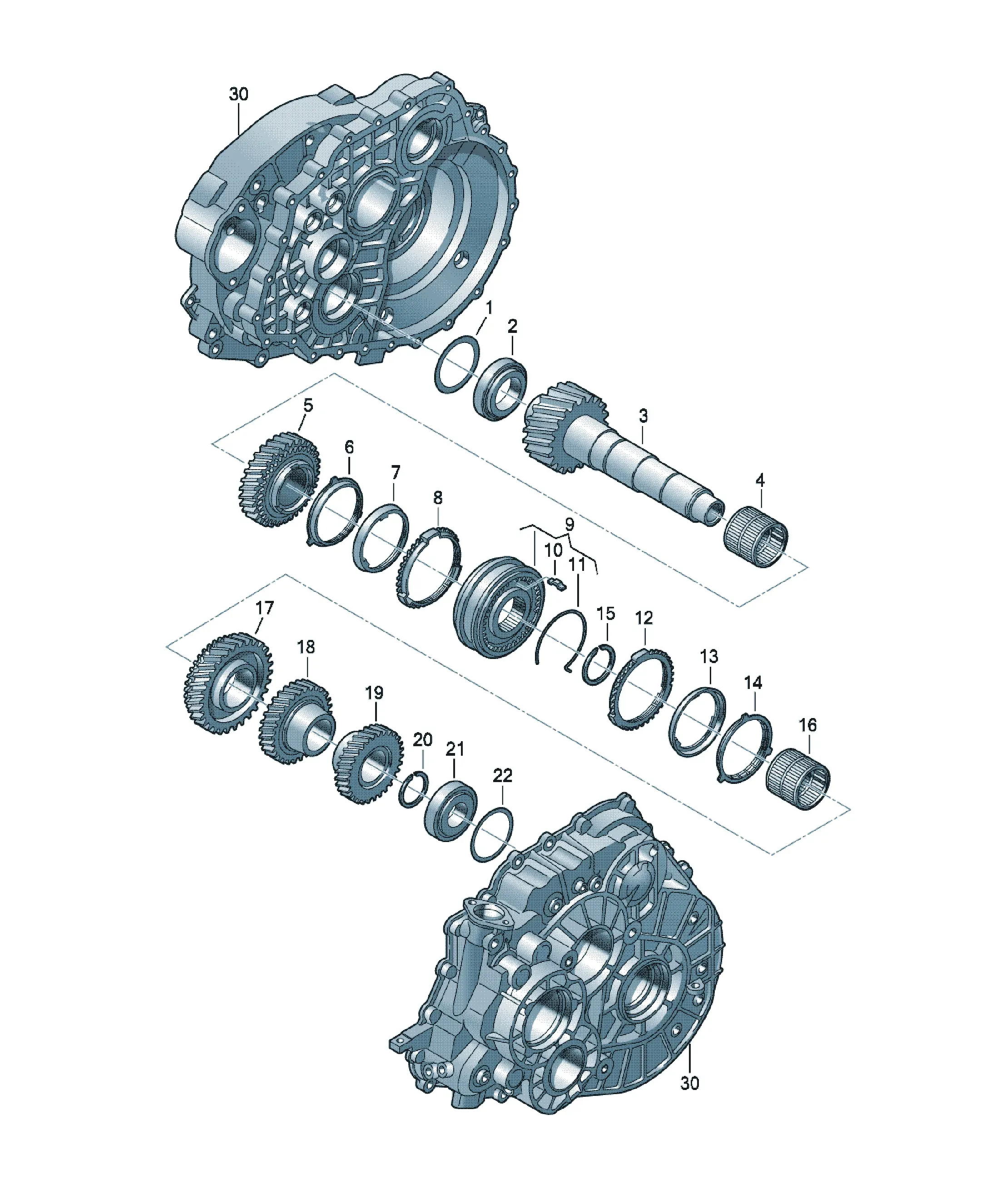

Transmission output shaft

[Name] [Note] [QTY]

1 set shims 0,65-1,25 1

repair set

02K409210 adjusting washer 0,65 1

02K409210A adjusting washer 0,7 1

02K409210B adjusting washer 0,75 1

02K409210C adjusting washer 0,8 1

02K409210D adjusting washer 0,85 1

02K409210E adjusting washer 0,9 1

02K409210F adjusting washer 0,95 1

02K409210G adjusting washer 1 1

02K409210H adjusting washer 1,05 1

02K409210J adjusting washer 1,1 1

02K409210K adjusting washer 1,15 1

02K409210L adjusting washer 1,2 1

02K409210M adjusting washer 1,25 1

[Name] [Note] [QTY]

Spring 3./4.gear 2

[Name] [Note] [QTY]

locking piece 3./4.gear 1

[Name] [Note] [QTY]

synchronizer ring 3.gear 1

[Name] [Note] [QTY]

outer ring 3.gear 1

[Name] [Note] [QTY]

outer ring 3./4.gear 1

[Name] [Note] [QTY]

synchronizer ring 3.gear 1

inner

[Name] [Note] [QTY]

Securing ring 7,2X43,6X2,5 1

[Name] [Note] [QTY]

needle bearing - 41X46X37,8 1

3.gear

[Name] [Note] [Model info] [QTY]

change gear 3.gear LMY 1

34/21

[Name] [Note] [Model info] [QTY]

change gear 3.gear KUG,KVB,LMV, 1

34/21 KVC,LMU,KQQ

[Name] [Note] [Model info] [QTY]

change gear 3.gear KKJ,LMX 1

36/19

[Name] [Note] [Model info] [QTY]

change gear 3.gear KLX,LMW 1

36/19

[Name] [Note] [Model info] [QTY]

gear 5-speed LMY 1

32/37

[Name] [Note] [Model info] [QTY]

gear 5-speed KKJ,LMX 1

36/33

[Name] [Note] [Model info] [QTY]

gear 5-speed KLX,LMW 1

36/33

[Name] [Note] [Model info] [QTY]

gear 5-speed KUG,KVB,LMV, 1

33/35 KQQ

[Name] [Note] [Model info] [QTY]

gear 5-speed KVC,LMU 1

32/37

[Name] [Note] [Model info] [QTY]

gear 6th gear KUG,KVB,LMV, 1

30/39 KQQ

Replacements: 0A5311165T; 0A5311349AM

[Name] [Note] [Model info] [QTY]

gear 6th gear KKJ,LMX 1

33/36

[Name] [Note] [Model info] [QTY]

gear 6th gear KVC,LMU 1

29/40

[Name] [Note] [Model info] [QTY]

gear 6th gear KLX,LMW 1

33/36

[Name] [Note] [Model info] [QTY]

gear 6th gear LMY 1

29/40

[Name] [Note] [QTY]

Taper roller bearing 38,1X65X18 1

[Name] [Note] [QTY]

Securing ring 34,2X40,6X2,5 1

[Name] [Note] [QTY]

Taper roller bearing 30X62X17 1

Replacements: 02M311123E

[Name] [Note] [QTY]

1 set shims 0,7-2,4 1

repair set

084409383AE fitted washer 52X61,3X1 1

084409383AF fitted washer 52X61,3X1,4 1

084409383AG fitted washer 52X61,3X1,45 1

084409383AH fitted washer 52X61,3X1,5 1

084409383AJ fitted washer 52X61,3X1,55 1

084409383AK fitted washer 52X61,3X1,6 1

084409383AL fitted washer 52X61,3X1,65 1

084409383AM fitted washer 52X61,3X1,7 1

084409383AN fitted washer 52X61,3X1,75 1

084409383AP fitted washer 52X61,3X1,8 1

084409383AQ fitted washer 52X61,3X1,85 1

084409383AR fitted washer 52X61,3X1,9 1

084409383AS fitted washer 52X61,3X1,95 1

084409383AT fitted washer 52X61,3X2 1

084409383BA fitted washer 52X61,3X2,05 1

084409383BB fitted washer 52X61,3X2,1 1

084409383BC fitted washer 52X61,3X2,15 1

084409383BD fitted washer 52X61,3X2,2 1

084409383BE fitted washer 52X61,3X2,25 1

084409383BF fitted washer 52X61,3X2,3 1

084409383BG fitted washer 52X61,3X2,35 1

084409383BH fitted washer 52X61,3X2,4 1

084409383BK fitted washer 0,7 1

084409383BL fitted washer 0,75 1

084409383BM fitted washer 0,8 1

084409383BN fitted washer 0,85 1

084409383BP fitted washer 0,9 1

084409383BQ fitted washer 0,95 1

084409383BR fitted washer 1,05 1

084409383BT fitted washer 1,15 1

084409383BS fitted washer 1,1 1

084409383CA fitted washer 1,2 1

084409383CB fitted washer 1,25 1

084409383CC fitted washer 1,3 1

084409383CD fitted washer 1,35 1

[Name]

No replacement part

The complete gearbox is to be used.

[Name] [Note]

Gear housing

see illustration: 301-040

[Name] [Note]

Gear housing

see illustration: 301-020

[Name] [Note] [QTY]

needle bearing - 45X51X37,8 1

4-speed

Replacements: 0A5311115B

[Name] [Note] [Model info] [QTY]

change gear 4-speed KVC,LMU 1

37/32

[Name] [Note] [Model info] [QTY]

change gear 4-speed KKJ,LMX 1

40/29

[Name] [Note] [Model info] [QTY]

change gear 4-speed KUG,KVB,LMV, 1

38/31 KQQ

[Name] [Note] [Model info] [QTY]

change gear 4-speed KLX,LMW 1

40/29

[Name] [Note] [Model info] [QTY]

change gear 4-speed LMY 1

37/32

[Name] [Note] [QTY]

synchronizer ring 4-speed 1

inner

[Name] [Note] [QTY]

outer ring 3./4.gear 1

[Name] [Note] [QTY]

outer ring 4-speed 1

[Name] [Note] [QTY]

synchronizer ring 4-speed 1

[Name] [Note] [QTY]

synchronizing hub with locking collar 3./4.gear 1
