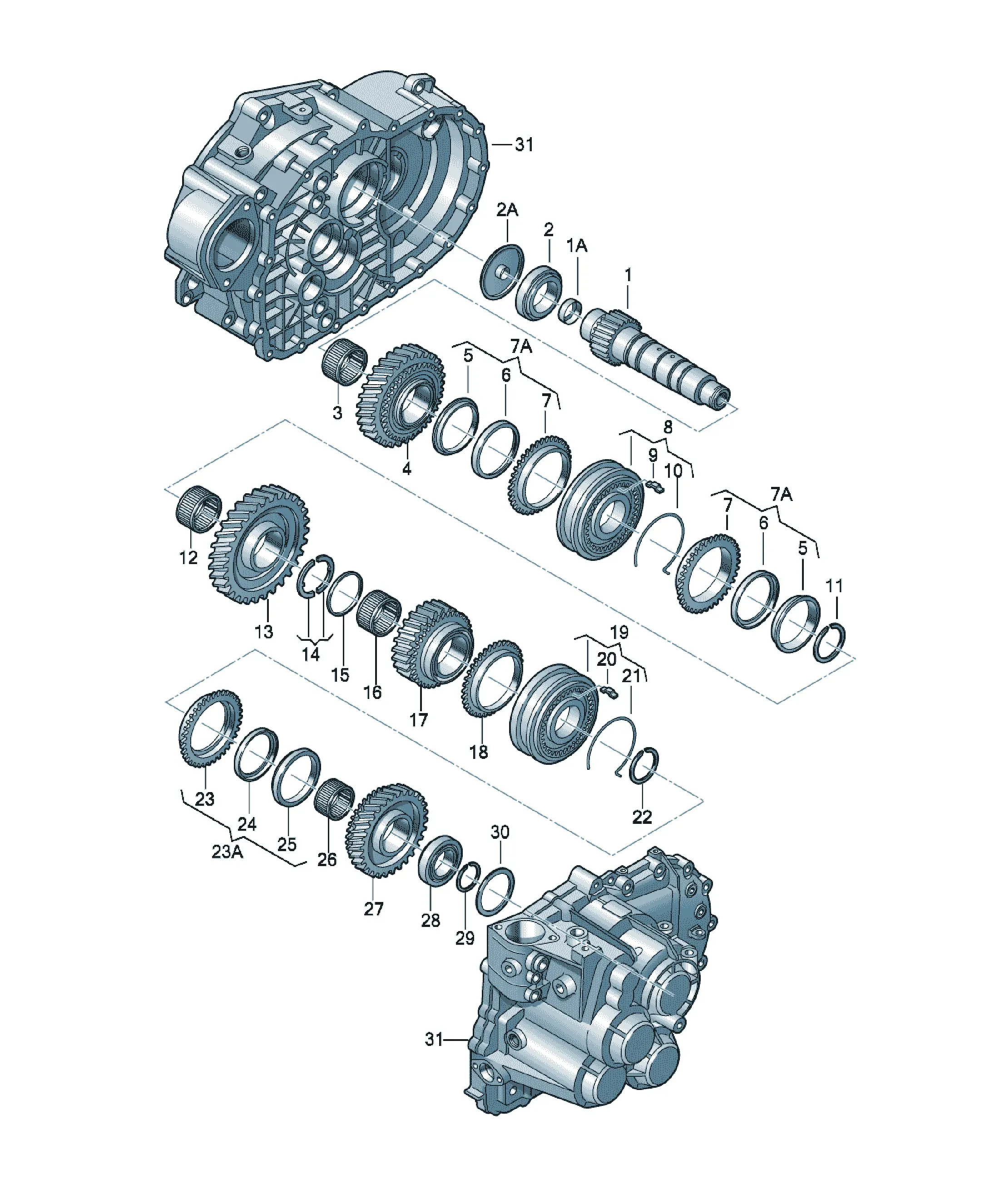

Transmission output shaft

[Name] [Note] [Model info] [QTY]

Output shaft 1st-4th gear JBS,LHB,LXM 1

Z=17

G >> 24 05 0

Replacements: 02M311205BD

[Name] [Note] [Model info] [QTY]

Output shaft 1st-4th gear LQU 1

Z=18

G 25 05 0>>

[Name] [Note] [Model info] [QTY]

Output shaft 1st-4th gear LQU 1

Z=18

G >> 24 05 0

Replacements: 02M311205BE

[Name] [Note] [Model info] [QTY]

Output shaft 1st-4th gear LXM 1

Z=17

G 25 05 0>>

[Name] [Note] [QTY]

Spring 1,6 2

G >> 25 10 9

[Name] [Note] [QTY]

Spring 1,6 2

G 26 10 9>>

[Name] [QTY]

Securing ring 1

[Name] [Note] [QTY]

needle bearing - 42X48X26,8 1

[Name] [Note] [QTY]

change gear 1.gear 1

49/13

G >> 25 10 9

[Name] [Note] [QTY]

change gear 1.gear 1

49/13

G 26 10 9>>

[Name] [Note] [QTY]

thrust washer 1st-4th gear 1

[Name] [Note] [QTY]

Retaining ring 56X60X3 1

[Name] [Note] [QTY]

needle bearing - 42X48X26,8 1

[Name] [Note] [Model info] [QTY]

change gear 4-speed LQU 1

40/46

Replacements: 02M311145BG; 02M311269S

[Name] [Note] [Model info] [QTY]

change gear 4-speed JBS,LHB 1

45/41

Replacements: 02M311145BC; 02M311269S

[Name] [Note] [Model info] [QTY]

change gear 4-speed LXM 1

42/43

Replacements: 02M311145BB; 02M311269S

[Name] [Note] [QTY]

synchronizer ring 4-speed 1

[Name] [Note] [QTY]

synchronizing hub with locking collar 3./4.gear 1

G >> 30 05 0

[Name] [Note] [QTY]

synchronizing hub with locking collar 3./4.gear 1

G 31 05 0>>

[Name] [Note] [QTY]

Cup washer 14X27,15X2X10 1

[Name] [Note] [QTY]

Taper roller bearing 40X80X21 1

[Name] [QTY]

locking piece 3

[Name] [QTY]

Spring 2

[Name] [QTY]

Securing ring 1

[Name] [Note] [QTY]

synchronizer ring 3.gear 1

G >> 30 05 0

[Name] [Note] [QTY]

1 set synchro-rings 3.gear 1

carbon

G 31 05 0>>

Replacements: 0A5311197D

[Name] [Note] [QTY]

outer ring 3.gear 1

G >> 30 05 0

[Name] [Note] [QTY]

synchronizer ring 3.gear 1

inner

G >> 30 05 0

[Name] [Note] [QTY]

needle bearing - 38X44X26,8 1

[Name] [Note] [Model info] [QTY]

change gear 3.gear LQU 1

44/35

G >> 30 05 0

[Name] [Note] [Model info] [QTY]

change gear 3.gear LXM 1

45/34

G >> 30 05 0

[Name] [Note] [Model info] [QTY]

change gear 3.gear JBS,LHB 1

47/32

[Name] [Note] [Model info] [QTY]

change gear 3.gear LQU 1

44/35

G 31 05 0>>

[Name] [Note] [Model info] [QTY]

change gear 3.gear LXM 1

45/34

G 31 05 0>>

[Name] [Note] [QTY]

Taper roller bearing 30X62X17 1

Replacements: 02M311123E

[Name] [Note] [QTY]

1 set circlips 1,79-1,98 X

repair set

02M311187A Securing ring 27,2X33,6X1,98 1

02M311187B Securing ring 27,2X33,6X1,95 1

02M311187C Securing ring 27,2X33,6X1,92 1

02M311187D Securing ring 27,2X33,6X1,89 1

02M311187E Securing ring 27,2X33,6X1,86 1

02M311187F Securing ring 27,2X33,6X1,83 1

02M311187G Securing ring 27,2X33,6X1,79 1

[Name] [QTY]

oil thrower 1

[Name] [Note] [QTY]

needle bearing - 42X48X26,8 1

[Name] [Note] [QTY]

1 set shims 0,7-2,4 X

repair set

084409383AE fitted washer 52X61,3X1 1

084409383AF fitted washer 52X61,3X1,4 1

084409383AG fitted washer 52X61,3X1,45 1

084409383AH fitted washer 52X61,3X1,5 1

084409383AJ fitted washer 52X61,3X1,55 1

084409383AK fitted washer 52X61,3X1,6 1

084409383AL fitted washer 52X61,3X1,65 1

084409383AM fitted washer 52X61,3X1,7 1

084409383AN fitted washer 52X61,3X1,75 1

084409383AP fitted washer 52X61,3X1,8 1

084409383AQ fitted washer 52X61,3X1,85 1

084409383AR fitted washer 52X61,3X1,9 1

084409383AS fitted washer 52X61,3X1,95 1

084409383AT fitted washer 52X61,3X2 1

084409383BA fitted washer 52X61,3X2,05 1

084409383BB fitted washer 52X61,3X2,1 1

084409383BC fitted washer 52X61,3X2,15 1

084409383BD fitted washer 52X61,3X2,2 1

084409383BE fitted washer 52X61,3X2,25 1

084409383BF fitted washer 52X61,3X2,3 1

084409383BG fitted washer 52X61,3X2,35 1

084409383BH fitted washer 52X61,3X2,4 1

084409383BK fitted washer 0,7 1

084409383BL fitted washer 0,75 1

084409383BM fitted washer 0,8 1

084409383BN fitted washer 0,85 1

084409383BP fitted washer 0,9 1

084409383BQ fitted washer 0,95 1

084409383BR fitted washer 1,05 1

084409383BT fitted washer 1,15 1

084409383BS fitted washer 1,1 1

084409383CA fitted washer 1,2 1

084409383CB fitted washer 1,25 1

084409383CC fitted washer 1,3 1

084409383CD fitted washer 1,35 1

[Name] [Note]

Gear housing

see illustration: 301-015

[Name] [Note] [Model info] [QTY]

change gear 2.gear JBS,LHB,LXM 1

48/23

G >> 25 10 9

[Name] [Note] [Model info] [QTY]

change gear 2.gear LXM 1

48/23

G 26 10 9>>

Replacements: 02M311261AD

[Name] [Note] [Model info] [QTY]

change gear 2.gear LQU 1

47/24

G >> 25 10 9

[Name] [Note] [Model info] [QTY]

change gear 2.gear LQU 1

47/24

G 26 10 9>>

Replacements: 02M311261AE

[Name] [Note] [QTY]

synchronizer ring 2.gear 2

inner

G >> 25 10 9

[Name] [Note] [QTY]

outer ring 1./2.gear 2

G >> 25 10 9

[Name] [Note] [QTY]

synchronizer ring 1./2.gear 2

G >> 25 10 9

[Name] [Note] [QTY]

1 set synchro-rings 1./2.gear 1

carbon

G 26 10 9>>

Replacements: 0A5311197B

[Name] [Note] [QTY]

synchronizing hub with locking collar 1./2.gear 1

[Name] [QTY]

locking piece 3
