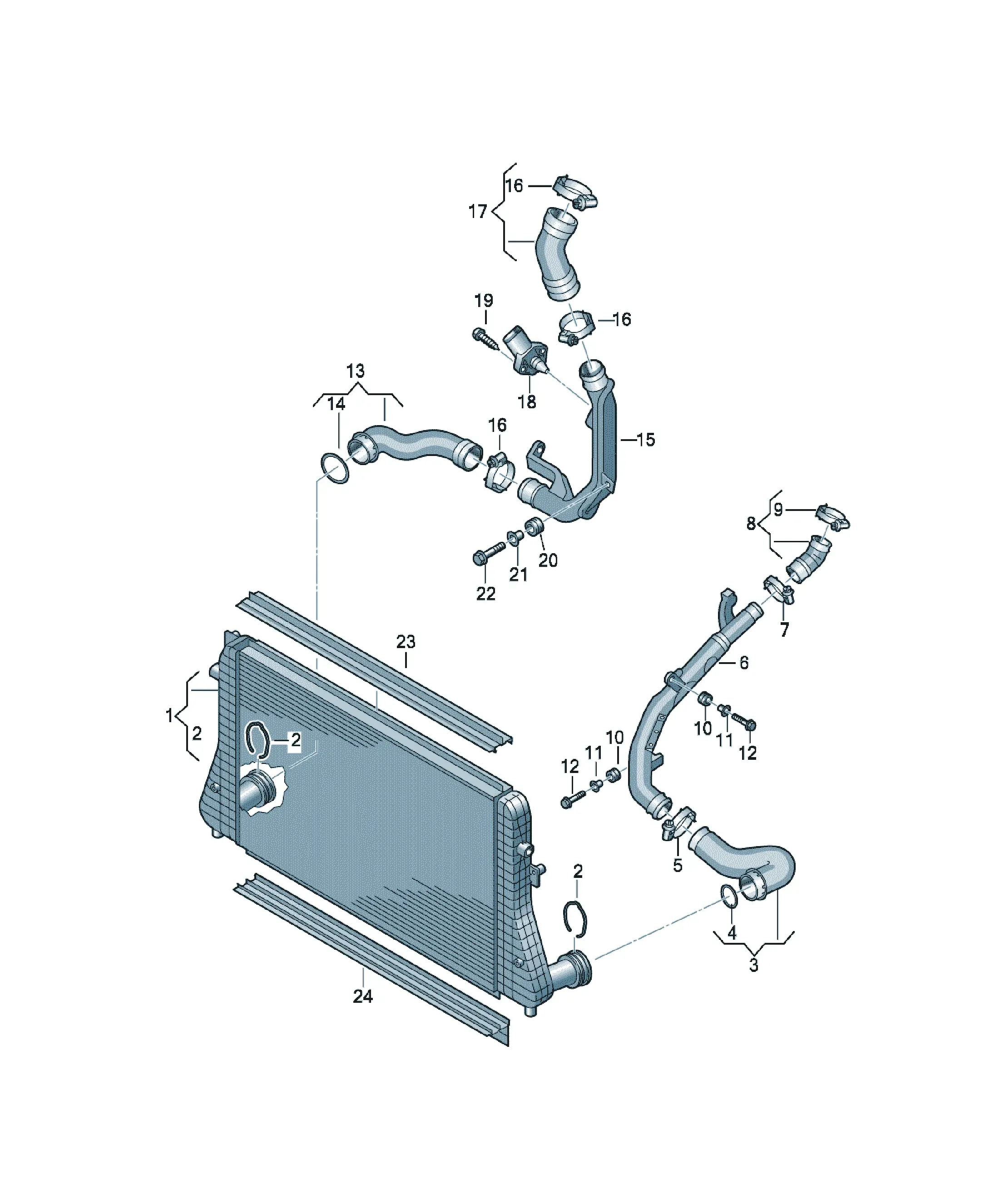

Intercooler

[Name] [QTY]

Charge air cooler 1

[Name] [QTY]

Grommet 2

[Name] [QTY]

Spacer sleeve with cylinder collar bolt 2

[Name] [Note] [QTY]

Oval hexagon socket head bolt M6X14 2

[Name] [QTY]

Pressure hose 1

[Name] [Note] [QTY]

seal ring 61,90MM 1

[Name] [QTY]

Air pipe

F 5N-8-050 001>>* 1

[Name] [Note] [QTY]

Hose clamp 50-70X12 1

[Name] [QTY]

Pressure hose 1

throttle valve adapter

[Name] [QTY]

Pressure sensor 1

Replacements: 03G906051M

mating connector

1J0973704 Flat contact housing with contact locking mechanism 4 pin VW 1

optional: X

8K0973704 Flat contact housing with contact locking mechanism 4 pin AUDI 1

black

[Name] [Note] [QTY]

panel screw 5X22 2

[Name] [QTY]

Retaining clip 2

[Name] [QTY]

Grommet 2

[Name] [QTY]

Spacer sleeve with cylinder collar bolt 2

[Name] [Note] [QTY]

Oval hexagon socket head bolt M6X14 2

[Name] [Note]

see illustration, item: 121-086,31

[Name] [Note]

see illustration, item: 121-086,32

[Name] [Model info] [QTY]

Pressure hose CBAA,CBAB 1

[Name] [Model info] [QTY]

Pressure hose CBBA,CBBB 1

[Name] [Note] [QTY]

seal ring 61,90MM 1

[Name] [Note] [QTY]

Hose clamp 50-70X12 1

[Name] [QTY]

pressure pipe 1

for vehicle use in warm and moderate climates

Accompanying details: 5N0129565C

[Name] [Note] [QTY]

pressure pipe

for vehicle use in cold climates 1

also use: 5N0 129 565 C

Accompanying details: 5N0129565C

[Name] [Note] [QTY]

Hose clamp 40-60X12 1

[Name] [QTY]

Pressure hose 1

Exhaust gas turbocharger

[Name] [Note] [QTY]

Hose clamp 50-70X12 1
