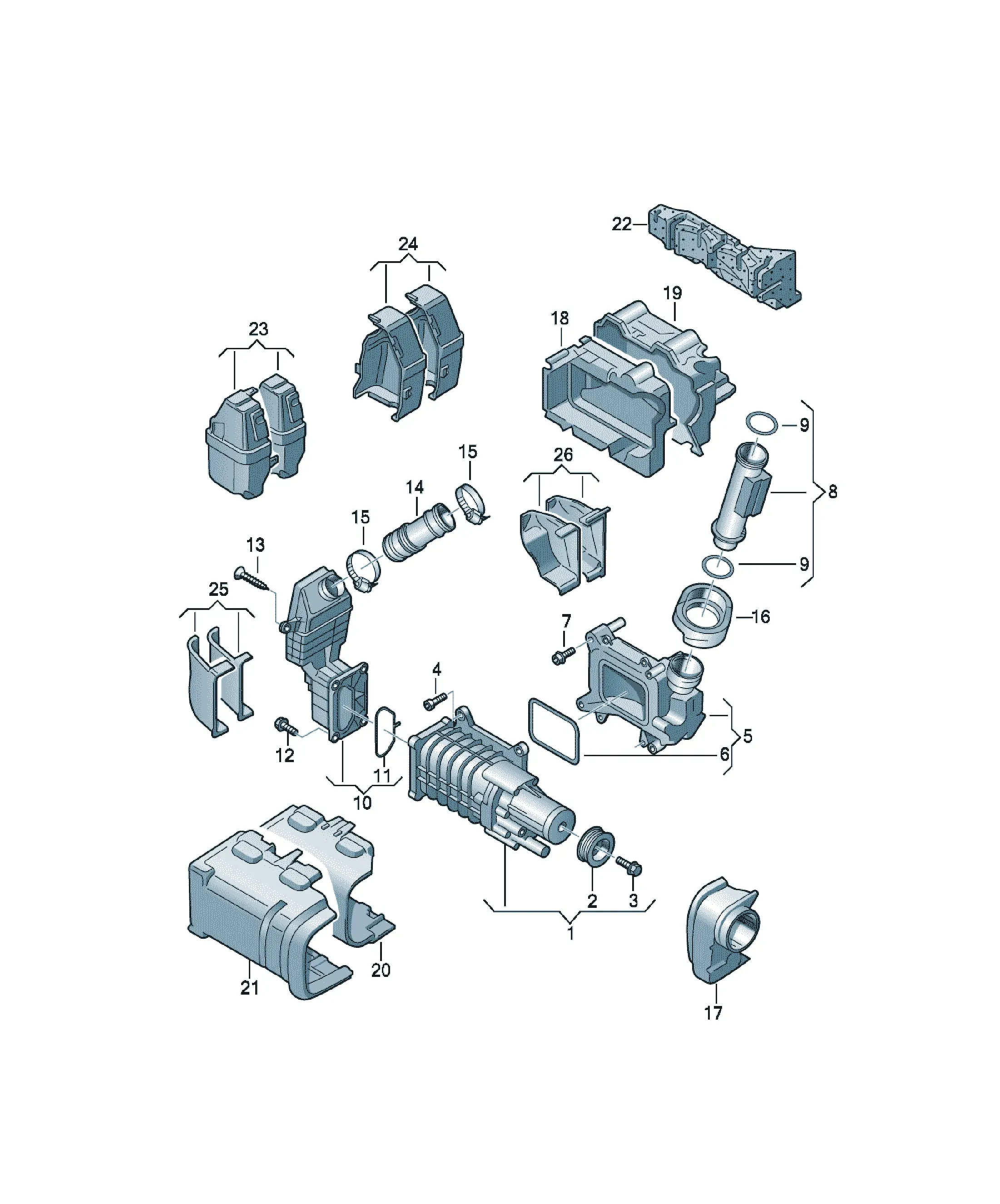

Turbocharger

[Name] [QTY]

1 set of noise insulators for compressors 1

repair set

03C103502K Noise insulation 1

03C103502M Noise insulation 1

03C129540F Foam 1

03C129540K Foam 1

03C129540E Foam 1

03C129540D Foam 1

03C145650C pressure damper 1

[Name] [Note] [QTY]

Compressor oil 150ml 1

[Name] [Note] [QTY]

sealant 50ml 1

[Name] [QTY]

Compressor 1

Exchange program parts: 03C145601EX

[Name] [QTY]

Compressor 1

Replacements: 03C145601E

Old part

03C145601B Compressor 1

Labelled with part number

03C145601C Compressor 1

Labelled with part number

03C145601E Compressor 1

Labelled with part number

03C145605E Compressor 1

Labelled with part number

[Name] [Note] [QTY]

Repair kit for compressor 1

also use: D 188 500 A2 1

G 070 000 A1 1

Accompanying details: D 188500A2; G 070000A1

repair set

Hexagon bolt 32660 8

seal ring 322309 1

clamping ring 100500 1

[Name] [QTY]

Connector union 1

[Name] [QTY]

Seal 1

[Name] [Note] [QTY]

round hd. screw M6X22 4

[Name] [Note] [QTY]

Hexagon socket flat head bolt 6X45 1

[Name] [QTY]

intake hose 1

[Name] [Note] [QTY]

Spring band clamp 55X12 2

[Name] [QTY]

Foam 1

pressure damper

[Name] [QTY]

Foam 1

belt cover

[Name] [QTY]

Foam 1

pressure damper

[Name] [QTY]

Noise insulation 1

[Name] [QTY]

Poly V-belt pulley 1

[Name] [QTY]

Foam 1

Compressor

[Name] [QTY]

Noise insulation 1

[Name] [QTY]

Foam 1

Compressor

[Name] [Note] [QTY]

Cover left 1

[Name] [Note] [QTY]

Cover right 1

[Name] [Note] [QTY]

Cover left 1

[Name] [Note] [QTY]

Cover right 1

[Name] [Note] [QTY]

Hex collared bolt M10X35 1

[Name] [Note] [QTY]

bolt,hex.hd.with shoul.(combi) M8X110X80 4

[Name] [Note] [QTY]

pressure damper 1

*>>D11.09.2009 1

use if required: 03C 145 674 B 1

Accompanying details: 03C145674B

[Name] [QTY]

Seal 1

[Name] [Note] [QTY]

Hexagon socket head panel bolt 6X20 4

[Name] [Note] [QTY]

pressure pipe

>>D13.09.2009

use if required: 03C 145 650 C 1

Accompanying details: 03C145650C

[Name] [Note] [QTY]

seal ring 2

only to be used for: 03C 145 674 A

[Name] [Note] [QTY]

seal ring 3

only to be used for: 03C 145 674 B
