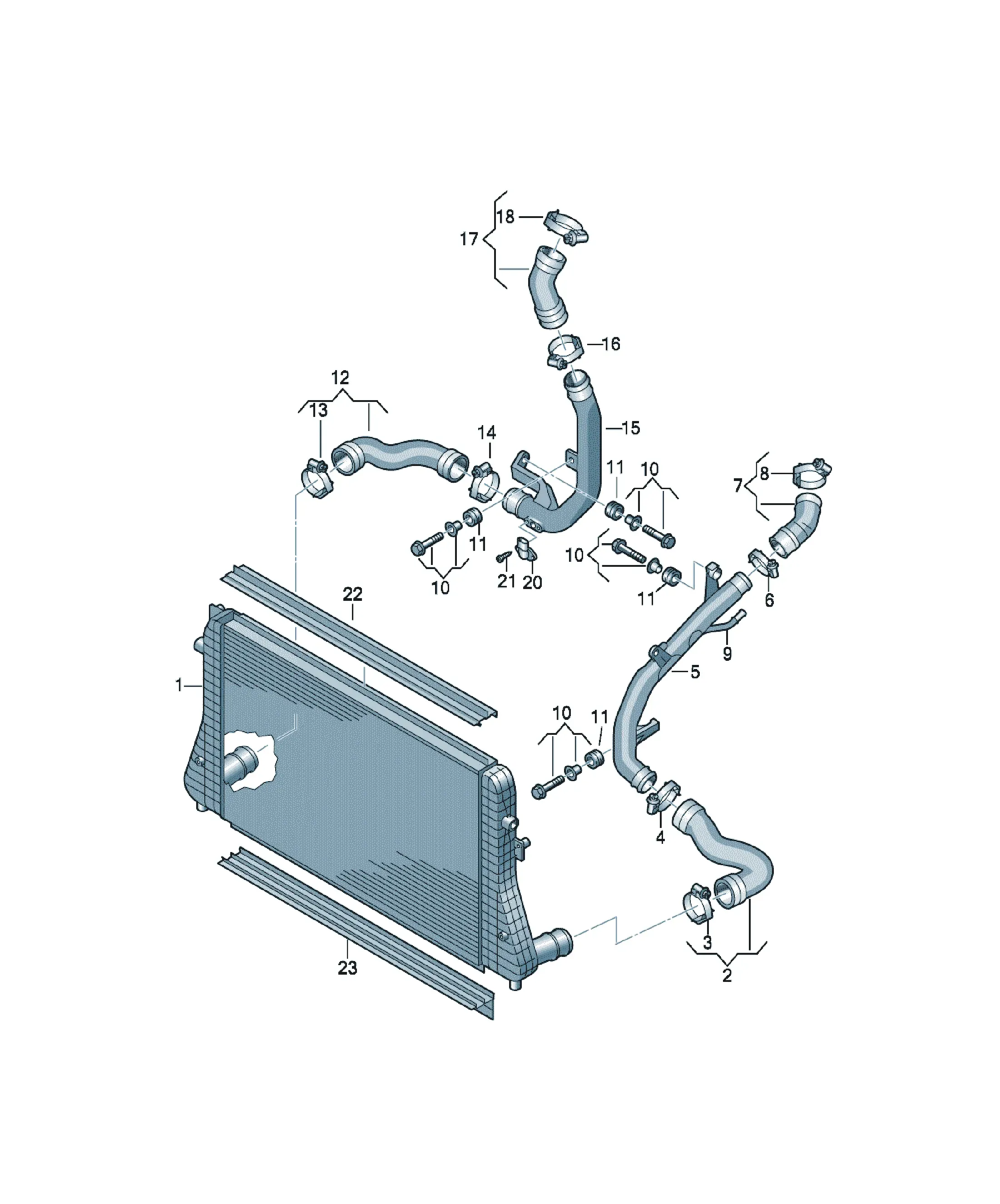

Intercooler

[Name] [QTY]

Charge air cooler 1

[Name] [QTY]

Spacer sleeve with cylinder collar bolt 2

[Name] [QTY]

Grommet 2

[Name] [QTY]

Pressure hose 1

[Name] [Note] [QTY]

Hose clamp 55-75X12 2

[Name] [Note] [QTY]

Hose clamp 50-70X12 1

[Name] [Note] [QTY]

Hose clamp 50-70X12 2

[Name] [QTY]

Air pipe 1

[Name] [QTY]

Air pipe 1

[Name] [Note] [QTY]

Hose clamp 50-70X12 2

[Name] [Note] [QTY]

Hose clamp 50-70X12 1

[Name] [QTY]

Pressure hose 1

throttle valve adapter

[Name] [QTY]

Pressure hose 1

throttle valve adapter

[Name] [Note] [QTY]

Hose clamp 50-70X12 1

[Name] [Note] [QTY]

Hose clamp 50-70X12 2

[Name] [Model info] [QTY]

Pressure hose CFGB,CFFB, 1

CFFA,CFFD,

CLJA

[Name] [QTY]

Pressure hose 1

[Name] [QTY]

Pressure sensor 1

Replacements: 03G906051M

mating connector

1J0973704 Flat contact housing with contact locking mechanism 4 pin 1

8K0973704 Flat contact housing with contact locking mechanism 4 pin 1

black

[Name] [QTY]

Pressure sensor 1

Replacements: 03G906051M

mating connector

1J0973704 Flat contact housing with contact locking mechanism 4 pin VW 1

optional: X

8K0973704 Flat contact housing with contact locking mechanism 4 pin AUDI 1

black

[Name] [Note] [QTY]

panel screw 5X22 2

[Name] [Note] [QTY]

fillister hd. bolt 5X20 2

[Name] [Note]

see illustration, item: 121-088,31

[Name] [Note]

see illustration, item: 121-086,31

[Name] [Note]

see illustration, item: 121-088,32

[Name] [Note]

see illustration, item: 121-086,32

[Name] [Note] [QTY]

Hose clamp 40-60X12 2

[Name] [Note] [QTY]

Hose clamp 55-75X12 2

Replacements: N 10619901

[Name] [Note] [QTY]

Hose clamp 45-65X12 1

[Name] [Note] [QTY]

Hose clamp 50-70X12 1

[Name] [QTY]

pressure pipe 1

for vehicle use in warm and moderate climates

Accompanying details: 5N0129565C

[Name] [QTY]

Air pipe 1

[Name] [Note] [QTY]

pressure pipe 1

for vehicle use in cold climates

also use: 5N0 129 565 C

Accompanying details: 5N0129565C

[Name] [Note] [QTY]

Hose clamp 40-60X12 1

[Name] [Note] [QTY]

Hose clamp 40-60X12 2

[Name] [QTY]

Pressure hose 1

Exhaust gas turbocharger

[Name] [QTY]

Pressure hose 1

Exhaust gas turbocharger

[Name] [Note] [QTY]

Hose clamp 50-70X12 1

[Name] [Note] [QTY]

Hose clamp 40-60X12 1

Replacements: N 10518801

[Name] [Note]

Coolant pipe

see illustration, item: 121-061,14

[Name] [Note]

Coolant pipe

see illustration, item: 121-065,14
