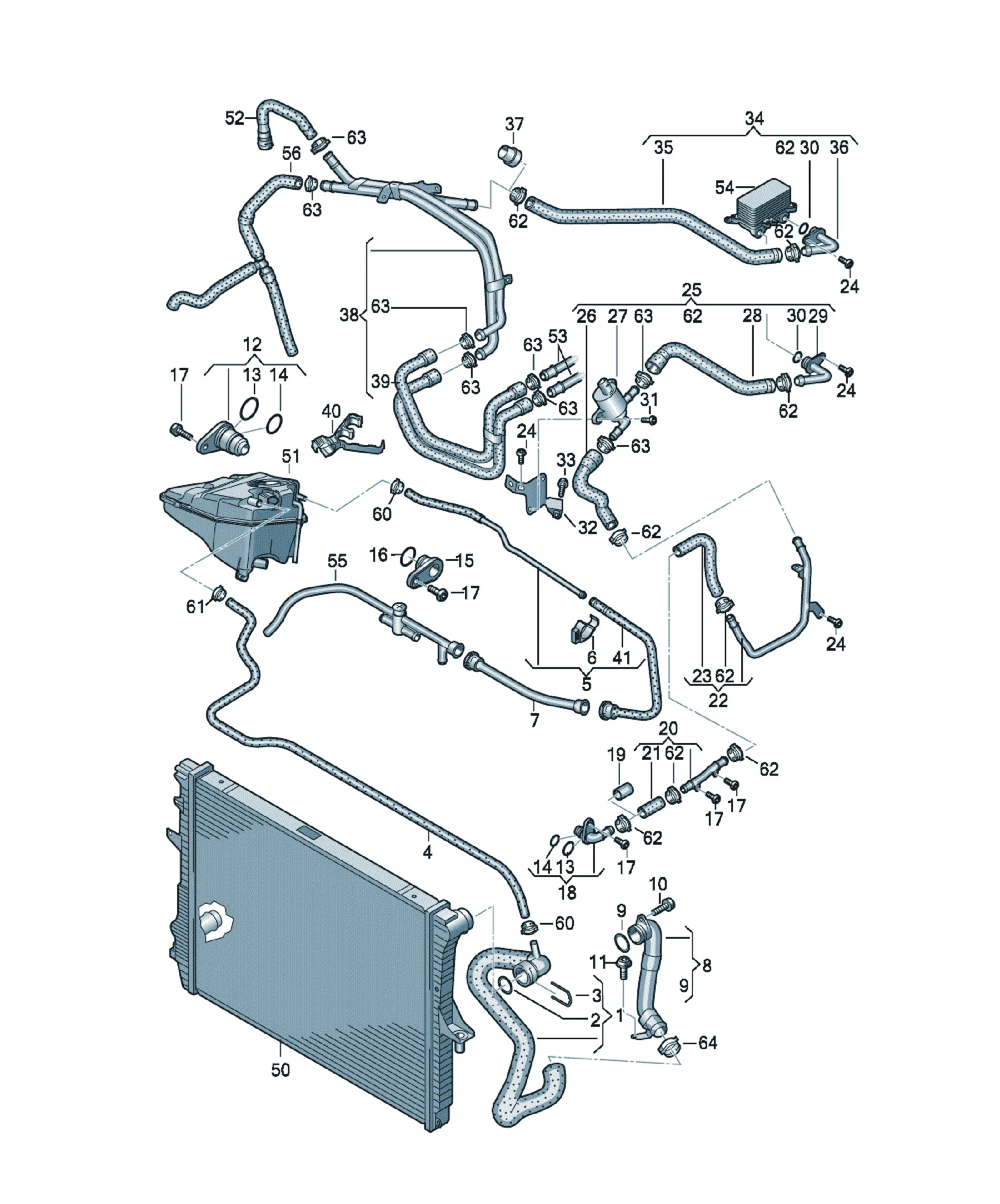

გაგრილების სისტემა

[Name] [QTY]

Coolant hose with quick release coupling 1

Replacements: 4L0121101

[Name] [Note] [QTY]

Oval hexagon socket head bolt M6X16 X

[Name] [Note] [QTY]

Hexalobular flange screw M6X22 1

[Name] [Note] [QTY]

Cover right front 1

Replacements: 059121155AK

Items supplied

housing 1

Threaded bush 1

bush 1

disc 1

ball 15MM 1

seal ring 23,0X2,5 1

seal ring 21,5X2,0 1

[Name] [Note] [QTY]

O-ring 23,0X2,5 X

Included in position: 18

[Name] [Note] [QTY]

O-ring 21,5X2,0 X

Included in position: 18

[Name] [Note] [QTY]

Cover left rear 1

Replacements: 059121155BK

[Name] [Note] [QTY]

O-ring 13,1X1,6 1

[Name] [Note] [QTY]

round hd. screw M6X10 X

[Name] [Note] [QTY]

Cover centre left 1

Replacements: 059121155AL

Items supplied

housing 1

bush 1

disc 1

ball 15MM 1

seal ring 23,0X2,5 1

seal ring 21,5X2,0 1

[Name] [Model info] [QTY]

Cap closure PR:0GG 1

[Name] [Note] [QTY]

O-ring 38X4 1

[Name] [Model info] [QTY]

Coolant pipe with coolant hose PR:7MG,7MJ 1

Replacements: 059121512T

Items supplied

Pipe 16X1,25 1

Bracket 2

059121069 Coolant hose 1

N 90686904 Spring band clamp 23X12 1

059422379A Clamp 23X12 1

Potential individual parts

[Name] [Note] [Model info] [QTY]

Coolant hose PR:7MG,7MJ 1

Included in position: 20

[Name] [Model info] [QTY]

Coolant pipe with coolant hose PR:7MG,7MJ 1

[Name] [Note] [Model info] [QTY]

Coolant hose PR:7MG,7MJ 1

Included in position: 22

[Name] [Note] [QTY]

Hexagon socket flat head bolt, self-locking M6X12 X

[Name] [Model info] [QTY]

Coolant hose with valve PR:7MG,7MJ 1

Replacements: 7L8121065D

Items supplied

Hose 16X3,5 1

4H0121671D Solenoid valve 1

N 90687001 Spring band clamp 27X12 3

Hose 1

Pipe 16X1 1

O-ring 16X1,78 1

[Name] [Note] [Model info] [QTY]

Coolant hose PR:7MG,7MJ 1

Included in position: 25

[Name] [Model info] [QTY]

Solenoid valve PR:7MG,7MJ 1

mating connector

8K0973702 Flat contact housing with contact locking mechanism 2 pin 1

black

[Name] [Note] [Model info] [QTY]

Coolant hose PR:7MG,7MJ 1

Included in position: 25

[Name] [Note] [Model info] [QTY]

Pipe union PR:7MG,7MJ 1

Included in position: 25

[Name] [Note] [QTY]

retaining spring 38MM 2

[Name] [Note] [Model info] [QTY]

O-ring 16,0X1,78 PR:7MG,7MJ X

Included in position: 25

[Name] [Note] [QTY]

Hex socket oval head collared M6X20 2

[Name] [Model info] [QTY]

Bracket PR:7MG,7MJ 1

[Name] [Note] [QTY]

Socket head bolt with inner multipoint head M8X35 1

[Name] [Model info] [QTY]

Coolant pipe with coolant hose PR:7MG,7MJ 1

[Name] [Note] [Model info] [QTY]

Coolant hose PR:7MG,7MJ 1

Included in position: 34

[Name] [Note] [Model info] [QTY]

Pipe union PR:7MG,7MJ 1

Included in position: 34

[Name] [Model info] [QTY]

Cap closure PR:0GG 1

[Name] [Note] [QTY]

Coolant pipe with coolant hose rear 1

[Name] [QTY]

Coolant hose 1

[Name] [Note] [QTY]

Vent hose front 1

[Name] [Note] [QTY]

Bracket 18X22X22 1

[Name] [Note] [QTY]

Coolant hose with quick release coupling left 1

Items supplied

8R0122293A Quick acting coupling 1

Installing sleeve 1

Coolant hose 1

1C0422705B Clip 1

N 90686701 Spring band clamp 14X12 1

Chafe guard 1

heat deflector hose 1

[Name] [Note] [QTY]

Coolant hose with quick release coupling left 1

Items supplied

8R0122293A Quick acting coupling 1

Installing sleeve 1

Coolant hose 1

1C0422705B Clip 1

N 90686701 Spring band clamp 14X12 1

Chafe guard 1

heat deflector hose 1

[Name] [Note] [QTY]

Vent hose rear 1

contains: 4L0 121 447

Items supplied

4L0121447 Coolant hose with quick release coupling 1

Pipe 1

Spacer holder rubber 1

N 90686701 Spring band clamp 14X12 2

Coolant hose 1

1C0422705B Clip 1

[Name] [Note]

Cooler for coolant

see illustration: 121-070

[Name] [Note]

Reservoir

see illustration: 121-070

[Name] [Note]

Coolant hose

see illustration: 121-017

[Name] [Note]

Coolant pipe

see illustration: 819-026

[Name] [Note]

Oil cooler

see illustration: 317-058

[Name] [Note]

Coolant pipe

see illustration: 121-017

[Name] [Note]

Coolant hose

see illustration: 121-017

[Name] [QTY]

Clip 2

[Name] [Note] [QTY]

Spring band clamp 14X12 X

[Name] [Note] [QTY]

Spring band clamp 17X12 X

[Name] [Note] [QTY]

Spring band clamp 23X12 X

[Name] [Note] [QTY]

Spring band clamp 27X12 X

[Name] [Note] [QTY]

Spring band clamp 47X12 X

[Name] [QTY]

Coolant pipe 1

Replacements: 059121731B

[Name] [QTY]

Coolant pipe 1

[Name] [Note] [QTY]

O-ring 32X3 1
