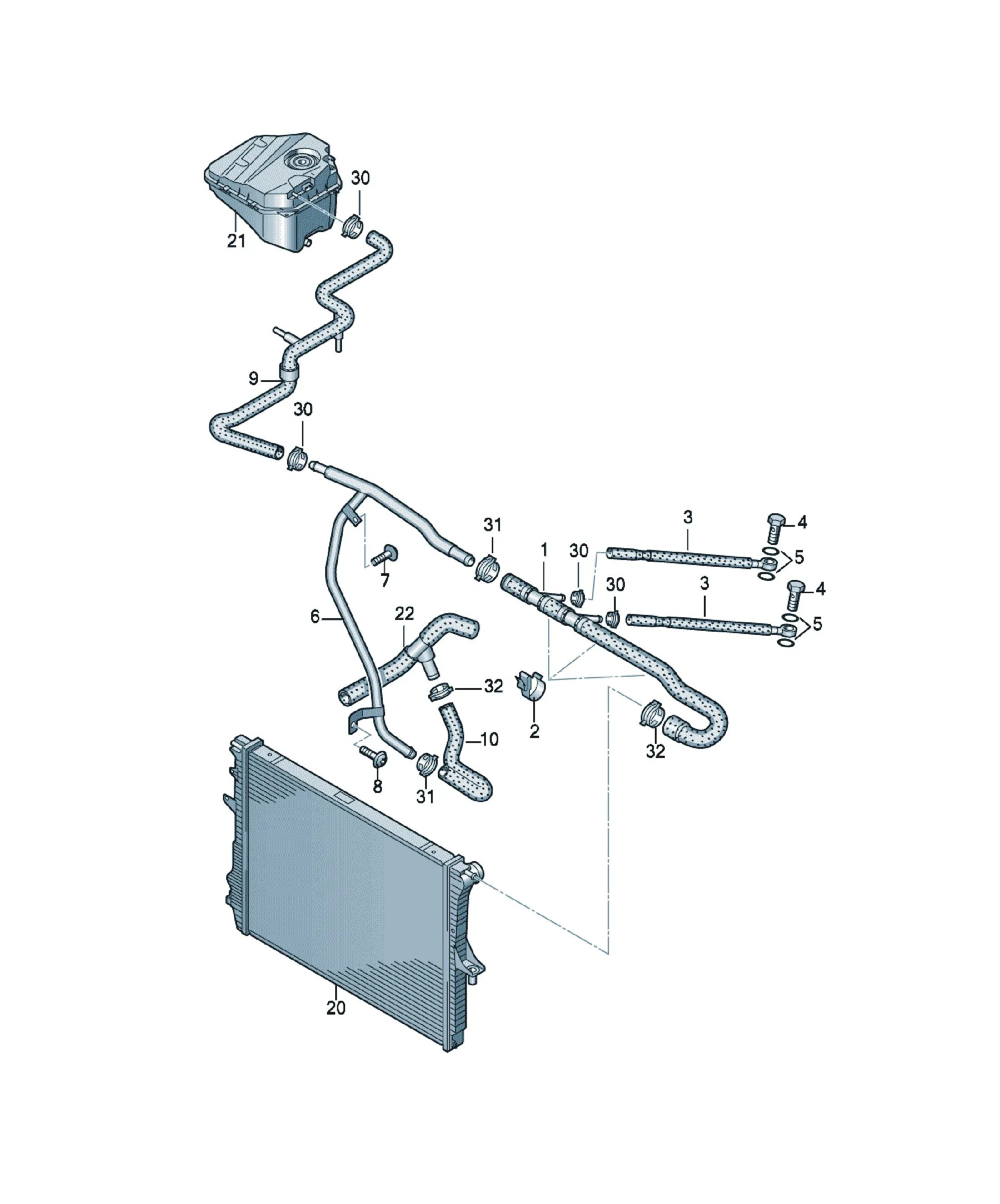

გაგრილების სისტემა

[Name] [QTY]

Coolant hose 1

[Name] [Note] [QTY]

Coolant hose lower 1

[Name] [QTY]

Hose bracket 3

[Name] [Note]

Cooler for coolant

see illustration: 121-070

[Name] [Note]

Reservoir

see illustration: 121-070

[Name] [Note]

Coolant hose

see illustration: 121-043

[Name] [Note] [QTY]

Coolant hose left a. right 2

[Name] [Note] [QTY]

Spring band clamp 14X12 X

[Name] [Note] [QTY]

Spring band clamp 19X12 X

[Name] [Note] [QTY]

Spring band clamp 23X12 X

[Name] [Note] [QTY]

Banjo bolt 8 2

[Name] [Note] [QTY]

seal ring 8X11,5 4

[Name] [QTY]

Coolant pipe 1

[Name] [Note] [QTY]

self-tapping screw 6X20 1

upper

[Name] [Note] [QTY]

Hexagon socket oval head bolt (combi) M6X16 1

lower

[Name] [QTY]

Coolant hose 1

(Expansion tank > coolant pipe)
