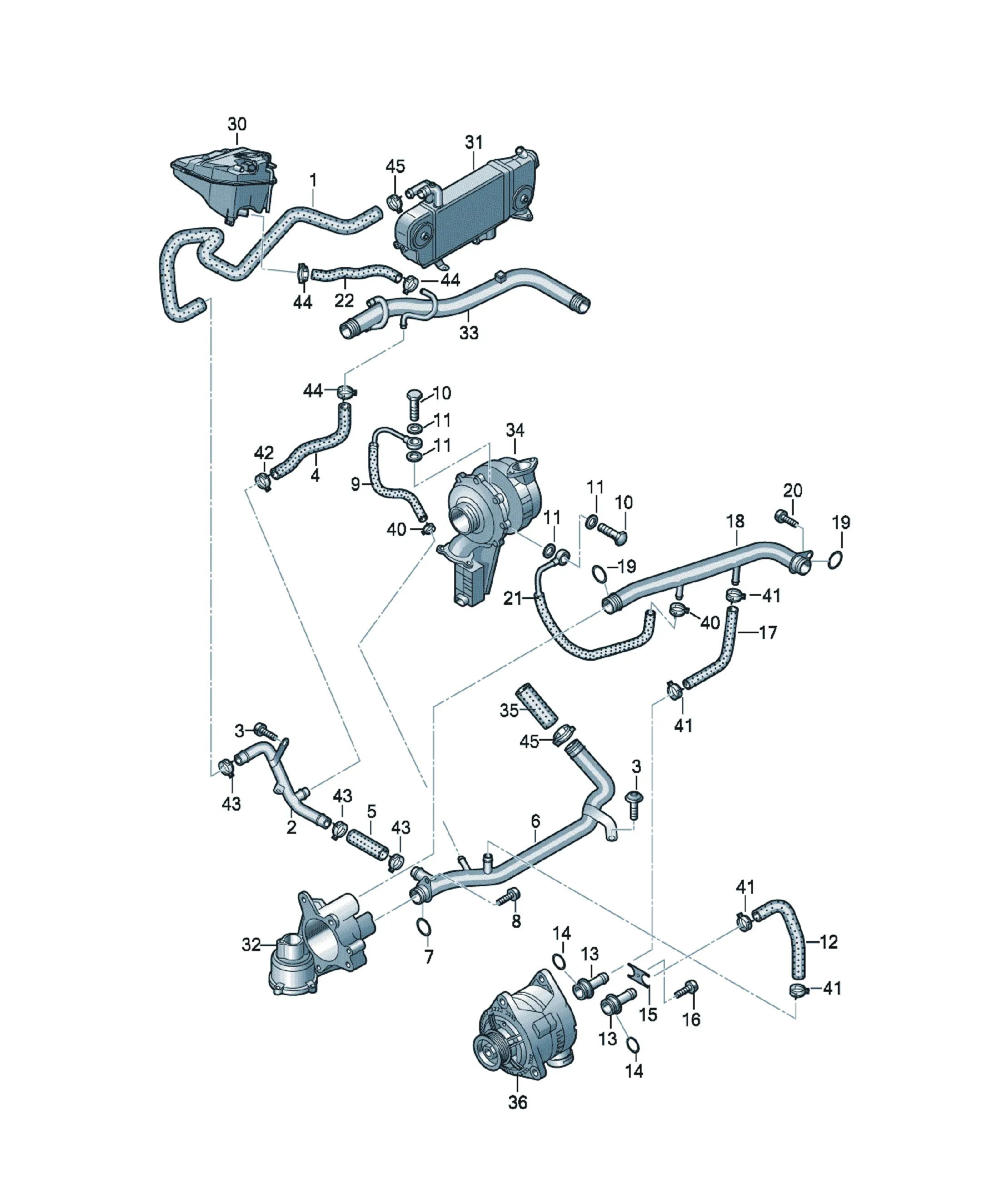

გაგრილების სისტემა

[Name] [QTY]

Coolant hose 1

[Name] [Note] [QTY]

Banjo bolt 10 2

[Name] [Note] [QTY]

seal ring 14X20 4

[Name] [QTY]

Coolant hose 1

[Name] [QTY]

water connection 2

[Name] [Note] [QTY]

O-ring 13,1X1,6 2

[Name] [QTY]

Bracket 1

water connection

[Name] [Note] [QTY]

Socket head bolt with hexagon socket head (combination) M6X30 1

[Name] [QTY]

Coolant hose 1

[Name] [QTY]

Coolant pipe 1

[Name] [Note] [QTY]

O-ring 28X2,5 2

[Name] [QTY]

Coolant pipe 1

[Name] [Note] [QTY]

round hd. screw M6X10 1

[Name] [Note] [QTY]

Coolant pipe feed 1

right

[Name] [QTY]

Coolant hose 1

[Name] [Note] [QTY]

Oval hexagon socket head bolt M6X14 X

[Name] [Note]

Reservoir

see illustration: 121-072

[Name] [Note]

Cooler for exhaust recuperation

see illustration: 131-020

[Name] [Note]

Coolant pump housing

see illustration: 121-009

[Name] [Note]

pressure pipe

see illustration: 145-060

[Name] [Note]

Exhaust gas turbocharger

see illustration: 145-040

[Name] [Note]

Coolant hose

see illustration: 121-042

[Name] [Note]

Alternator

see illustration: 903-070

[Name] [QTY]

Coolant hose 1

[Name] [Note] [QTY]

Spring band clamp 14X12 X

[Name] [Note] [QTY]

Spring band clamp 17X12 X

[Name] [Note] [QTY]

Spring band clamp 19X12 X

[Name] [Note] [QTY]

Clamp 25,6X7X0,6 X

[Name] [Note] [QTY]

Spring band clamp 23X12 X

[Name] [Note] [QTY]

Spring band clamp 27X12 X

[Name] [QTY]

Coolant hose 1

[Name] [QTY]

Coolant pipe 1

[Name] [Note] [QTY]

O-ring 19,6X3 1

[Name] [Note] [QTY]

Oval hexagon socket head bolt M6X14 X

[Name] [Note] [QTY]

Coolant pipe return 1

right
