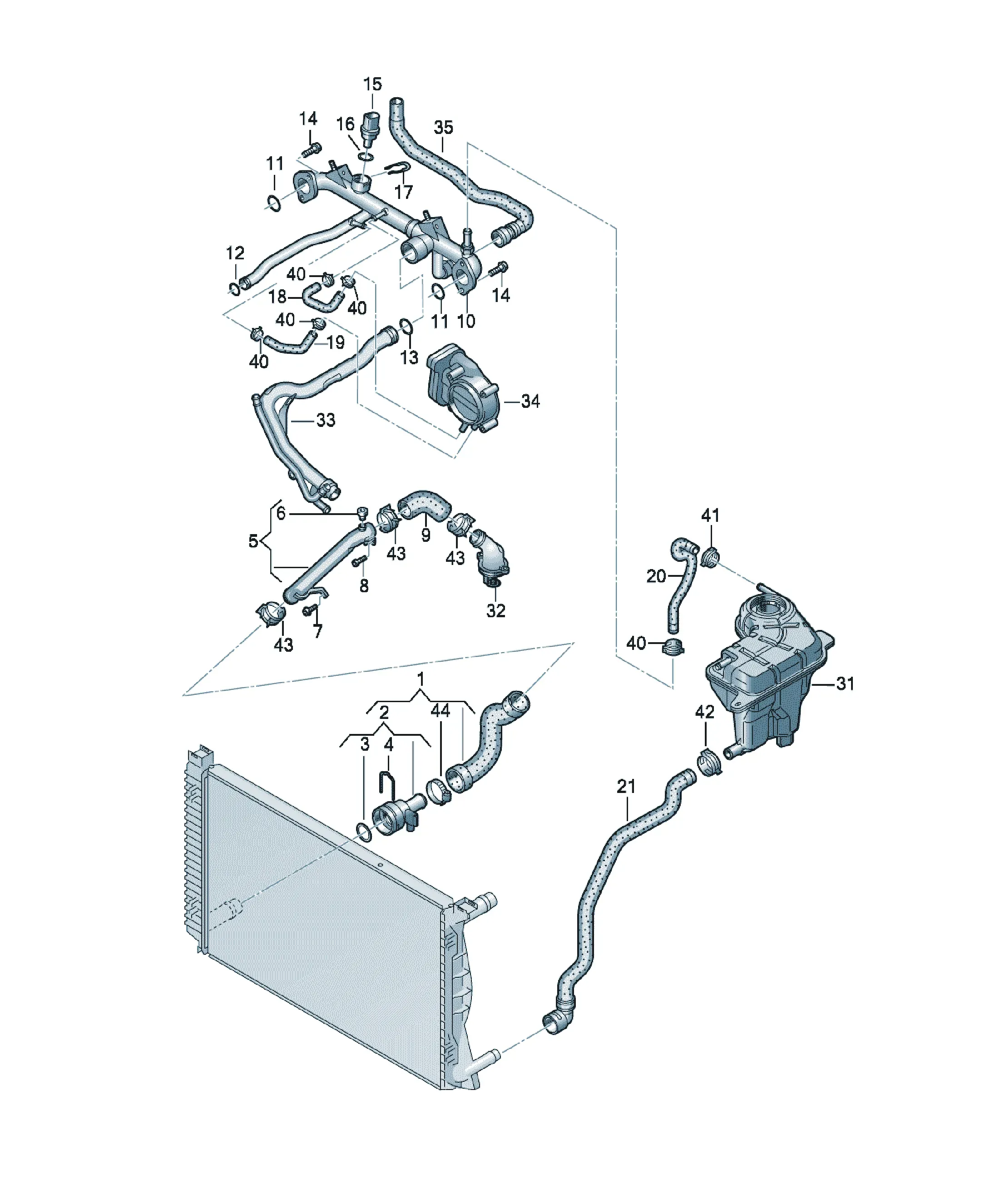

Система охлаждения

[Name] [Note] [QTY]

Cable ties with bracket 4,5X200 2

[Name] [QTY]

Coolant hose with quick release coupling 1

[Name] [Note] [QTY]

Coolant pipe rear center 1

plastic

use if required: 3D0 971 838 N 2

Accompanying details: 3D0971838N

[Name] [Note] [QTY]

seal ring 31,9X2,3X5,3 2

[Name] [Note] [QTY]

O-ring 18X2,4 1

[Name] [Note] [QTY]

O-ring 32X4 1

[Name] [Note] [QTY]

Socket head bolt with inner multipoint head M6X20 4

[Name] [Note] [QTY]

Coolant temperature sender 4 pin 1

Replacements: 05C919501

mating connector

1J0973702 Flat contact housing with contact locking mechanism 2 pin 1

8K0973702 Flat contact housing with contact locking mechanism 2 pin 1

black

[Name] [Note] [QTY]

O-ring 19,6X3,65 1

[Name] [QTY]

retaining spring 1

[Name] [QTY]

Heating hose 1

(Throttle valve connection > coolant pipe)

[Name] [QTY]

Heating hose 1

(Throttle valve connection > coolant pipe)

[Name]

Quick acting coupling

No replacement part

[Name] [QTY]

Coolant hose

F 4F-6-175 601>>* 1

[Name] [QTY]

Coolant hose

F >> 4F-6-175 600* 1

Replacements: 4F0121107AJ

[Name] [QTY]

Coolant hose with quick release coupling 1

[Name] [Note] [QTY]

O-ring 38X4 1

[Name] [Note]

Cooler for coolant

see illustration: 121-071

[Name] [Note]

Reservoir

see illustration: 121-071

[Name] [Note]

Coolant regulator

see illustration: 121-005

[Name] [Note]

Coolant pipe

see illustration: 121-030

[Name] [Note]

throttle valve adapter

see illustration: 133-062

[Name] [Note]

Coolant hose

see illustration: 819-060

[Name] [Note] [QTY]

retaining spring 38MM 1

[Name] [Note] [QTY]

Spring band clamp 14X12 X

[Name] [Note] [QTY]

Spring band clamp 16X12 X

[Name] [Note] [QTY]

Spring band clamp 27X12 X

[Name] [Note] [QTY]

Spring band clamp 40X12 X

[Name] [Note] [QTY]

Spring band clamp 47X12 X

[Name] [QTY]

Coolant pipe 1

[Name] [Note] [QTY]

Seal bolt with sealing ring M10X1 1

[Name] [Note] [QTY]

Socket head bolt with inner multipoint head M6X22 1

[Name] [Note] [QTY]

Oval hexagon socket head bolt M6X14 1

[Name] [QTY]

Coolant hose 1
