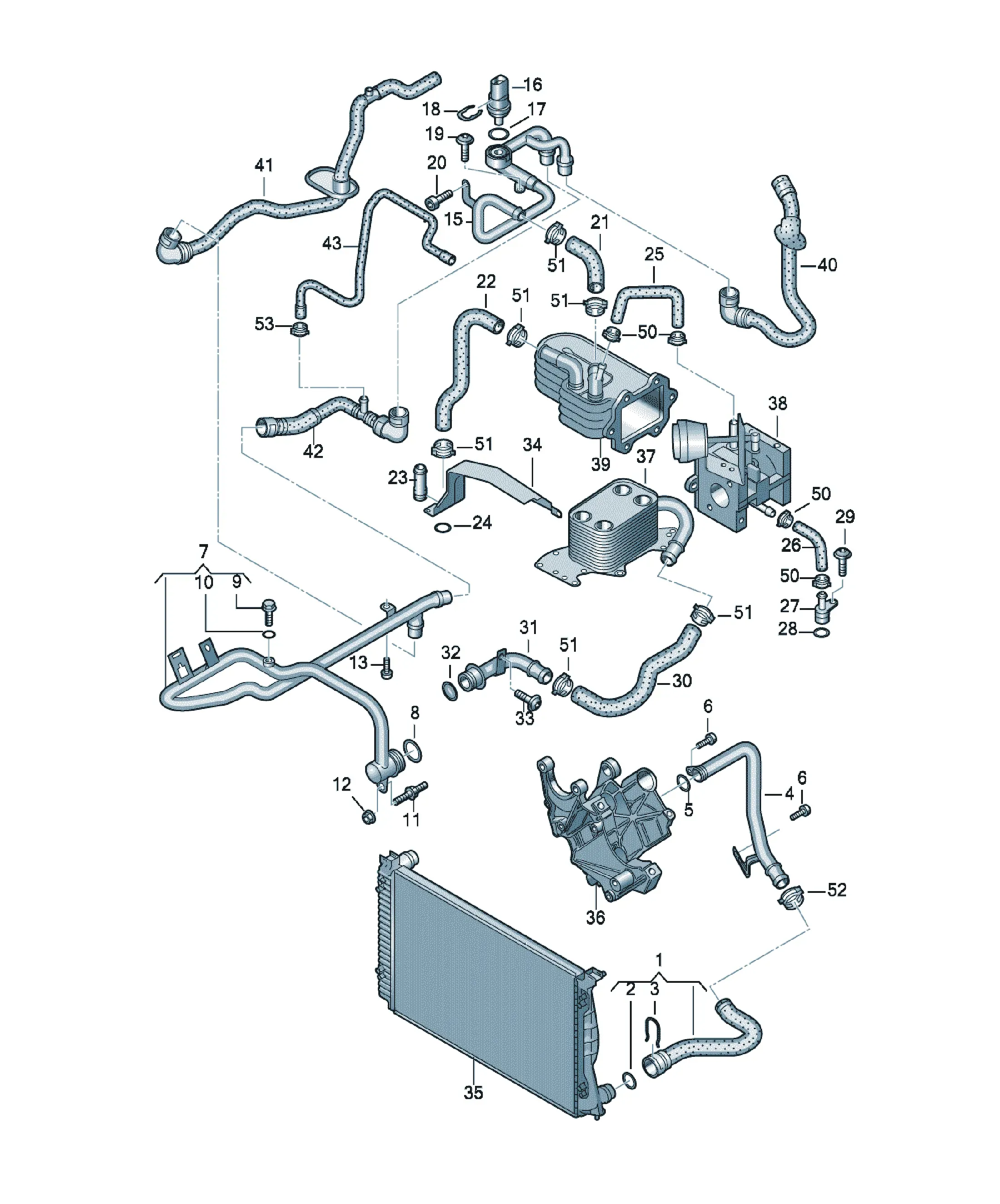

Патрубки системы охлаждения

[Name] [Model info] [QTY]

Coolant hose with quick release coupling PR:9M0 1

[Name] [Note] [Model info]

Coolant hose PR:9M9

see illustration: 261-032

[Name] [Note] [QTY]

seal ring 6X10 1

[Name] [Note] [QTY]

double stud with hexagon drive M6X22/M6X12 1

[Name] [Note] [QTY]

hex. nut with washer M6 1

[Name] [Note] [QTY]

round hd. screw M6X10 1

[Name] [QTY]

Coolant pipe 1

[Name] [Note] [QTY]

Coolant temperature sender 2 pin 1

Replacements: 05C919501

mating connector

1J0973702 Flat contact housing with contact locking mechanism 2 pin 1

8K0973702 Flat contact housing with contact locking mechanism 2 pin 1

black

[Name] [Note] [QTY]

O-ring 19,6X3,65 1

[Name] [QTY]

retaining spring 1

[Name] [Note] [QTY]

Oval hexagon socket head bolt M6X16 2

[Name] [Note] [QTY]

O-ring 38X4 1

[Name] [Note] [QTY]

Oval hexagon socket head bolt M6X12 3

[Name] [QTY]

Coolant hose 1

[Name] [QTY]

Coolant hose 1

[Name] [QTY]

water connection 1

[Name] [Note] [QTY]

O-ring 16X2 1

[Name] [QTY]

Coolant hose 1

[Name] [QTY]

Coolant hose 1

[Name] [QTY]

Pipe union 1

Replacements: 059121065DS

[Name] [Note] [QTY]

O-ring 11X3 1

[Name] [Note] [QTY]

Oval hexagon socket head bolt M6X14 1

[Name] [Note] [QTY]

retaining spring 38MM 2

[Name] [QTY]

Coolant hose 1

[Name] [QTY]

Coolant pipe 1

[Name] [Note] [QTY]

O-ring 20X3 1

[Name] [Note] [QTY]

Oval hexagon socket head bolt M6X12 3

[Name] [QTY]

Bracket 1

[Name] [Note]

Cooler for coolant

see illustration: 121-070

[Name] [Note]

Retainer for vane pump

see illustration: 145-075

[Name] [Note]

Oil cooler

see illustration: 115-000

[Name] [Note]

Control flap

see illustration: 131-005

[Name] [Note]

Cooler for exhaust recuperation

see illustration: 131-005

[Name] [QTY]

Coolant pipe 1

[Name] [Note]

Coolant hose with quick release coupling

for models with automatic climatic control

see illustration: 819-061

[Name] [Note]

Coolant hose with quick release coupling

for vehicles with auxiliary heater

see illustration: 261-032

[Name] [Note]

Coolant hose with quick release coupling

for vehicles with auxiliary heater

see illustration: 261-032

[Name] [Note]

Coolant hose with quick release coupling

for models with automatic climatic control

see illustration: 819-061

[Name] [Note]

Coolant hose with quick release coupling lhd

Included in illustration, position:

819-061,10B

[Name] [Note]

Coolant hose with quick release coupling rhd

Included in illustration, position:

819-063,9

[Name] [Note]

Coolant hose

see illustration: 121-046

[Name] [Note] [QTY]

O-ring 32X3 1

[Name] [Note] [QTY]

Spring band clamp 14X12 X

[Name] [Note] [QTY]

Spring band clamp 23X12 X

[Name] [Note] [QTY]

Spring band clamp 40X12 X

[Name] [Note] [QTY]

Spring band clamp 19X12 X

[Name] [Note] [QTY]

Oval hexagon socket head bolt M6X16 2

[Name] [Model info] [QTY]

Coolant pipe

F >> 4F-6-023 000* AVANT 1

F >> 4F-5-200 000* sedan 1

[Name] [Model info] [QTY]

Coolant pipe

F 4F-6-023 001>> 4F-6-170 000* AVANT 1

F 4F-6-000 001>> 4F-6-170 000* sedan 1

Replacements: 059121075BT

[Name] [QTY]

Coolant pipe

F 4F-6-170 001>>* 1

Replacements: 059121075CH

[Name] [Note] [QTY]

O-ring 23X2,6 1

[Name] [Note] [QTY]

Hexagon bolt M6X8 1
