Датчик температуры

Датчики двигателя и коробки передач

Схемы узла

15 схем

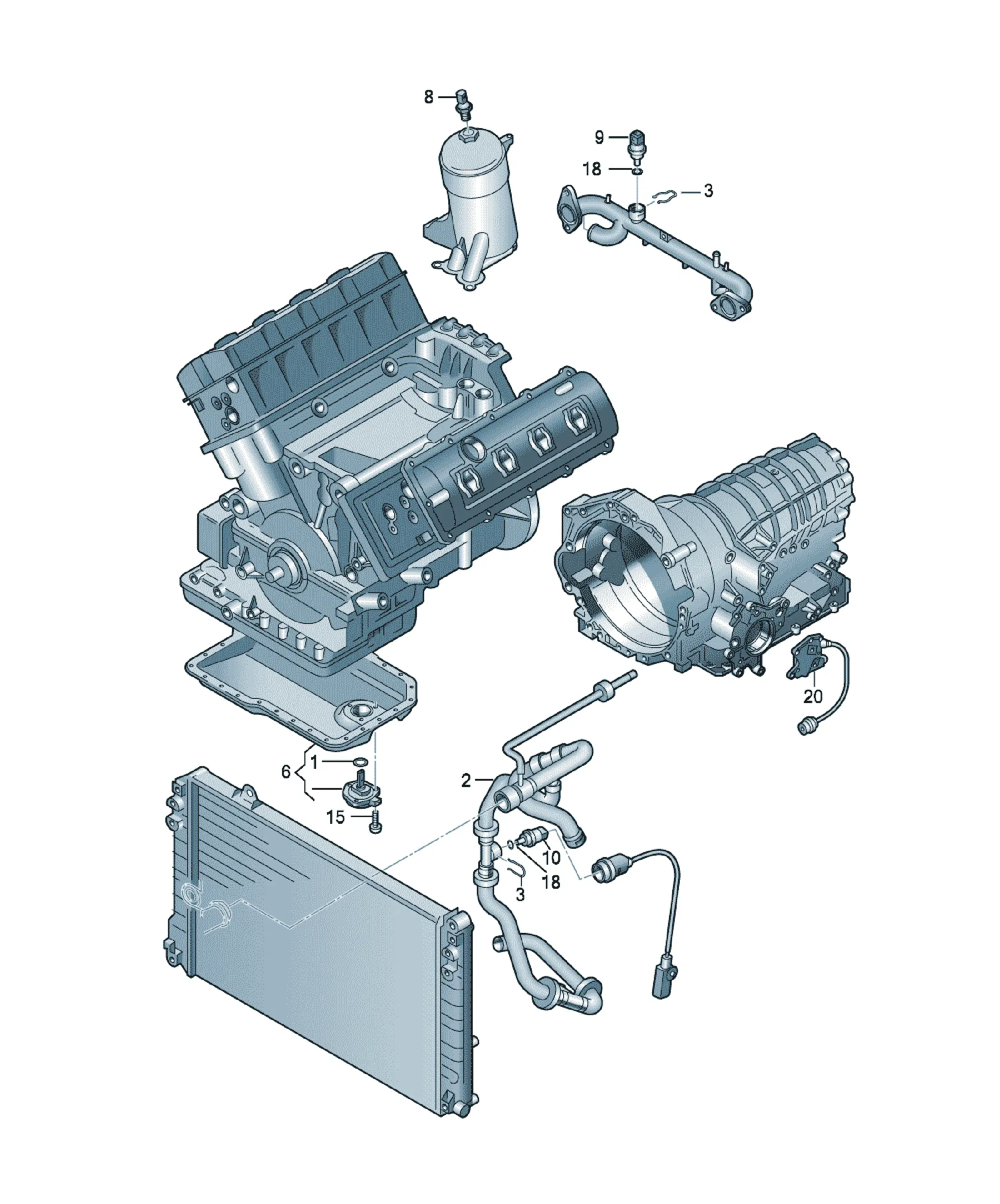

Схема «Датчики двигателя и коробки передач»

Детали

12 деталей

Манжетное уплотнение
N0138115 Предложения

[Name] [Note] [QTY]
seal ring 10X13,5 1
038103196 Предложения

[Name] [QTY]
seal ring 1
[Name]
Not for this model
N01508213 Предложения

[Name] [Note] [QTY]
Hexagon collar nut M6 3
Replacements: N 01508210
N90316801 Предложения

[Name] [Note] [QTY]
O-ring 19,6X3,65 1
[Name] [Note]
see illustration: 121-050
[Name]
Not for this model
032121142 Предложения

[Name] [QTY]
retaining spring 2
06E907660 Предложения

[Name] [QTY]
oil level sensor 1
mating connector
8K0973703 Flat contact housing with contact locking mechanism 3 pin 1
black
3D0973703 Flat contact housing with contact locking mechanism 3 pin 1
black
06A919081J Предложения

[Name] [Note] [Model info] [QTY]
Oil pressure switch 1,2-1,6BAR
1 pin
Black
M10X1
F >> 4F-7-073 000* BVJ 1
mating connector
1J0973081 Flat contact housing with contact locking mechanism 1 pin 1
black
Possible single wire: 000 979 131 1
06A919081J Предложения

[Name] [Note] [Model info] [QTY]
Oil pressure switch 1,2-1,6BAR BAT 1
1 pin
Black
M10X1
mating connector
1J0973081 Flat contact housing with contact locking mechanism 1 pin 1
black
Possible single wire: 000 979 131 1
06A919501A Предложения

[Name] [Note] [QTY]
Coolant temperature sender 2 pin 1
Replacements: 05C919501
mating connector
1J0973702 Flat contact housing with contact locking mechanism 2 pin 1
8K0973702 Flat contact housing with contact locking mechanism 2 pin 1
black
