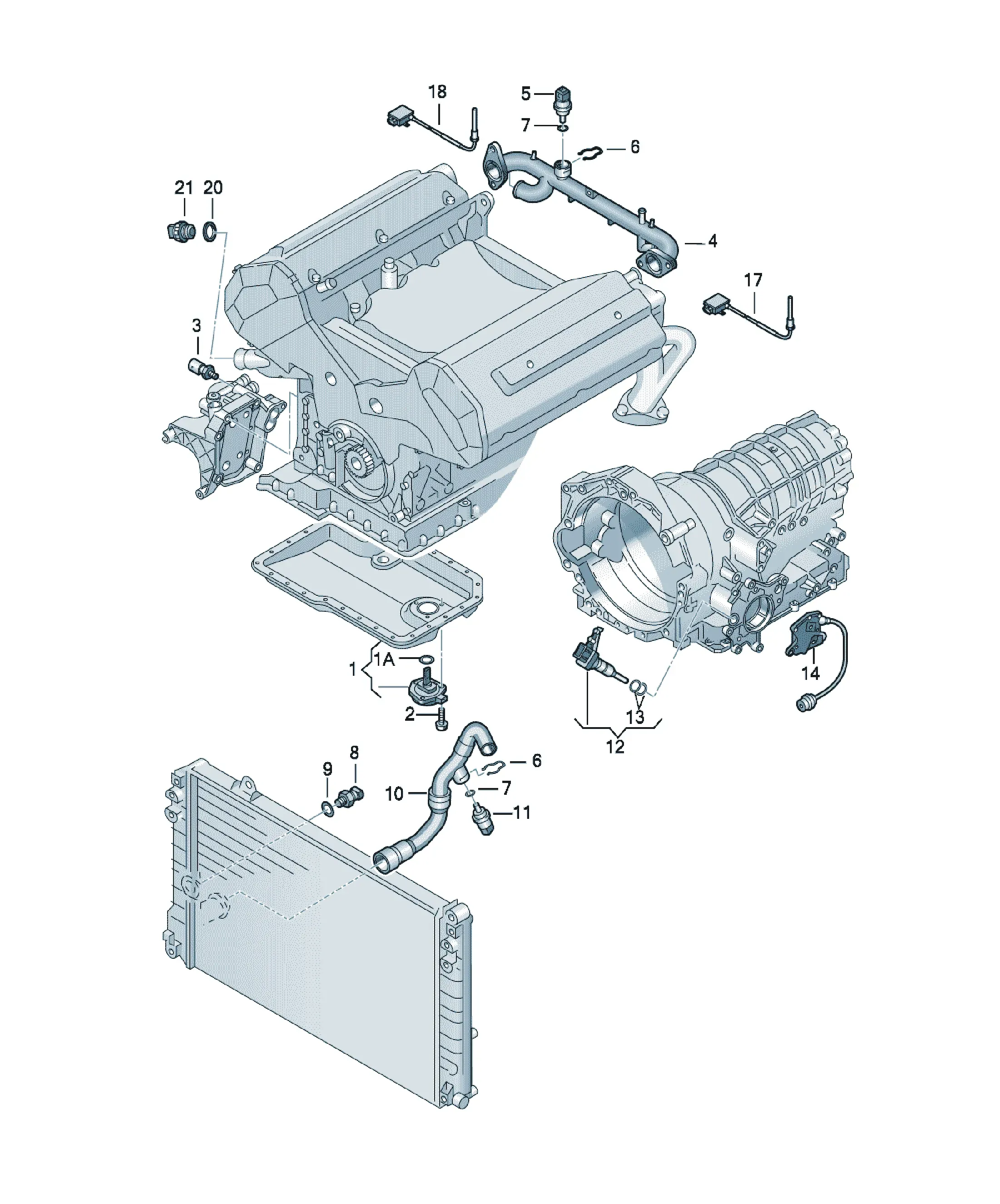

Датчики двигателя и коробки передач

[Name] [QTY]

O-ring 1

Temperature sensor

oil pipe

[Name] [QTY]

Temperature sensor 1

Fuel line

Replacements: 059919523F

mating connector

07P973702 Flat contact housing with contact locking mechanism 2 pin 1

black/yellow

Connection piece

thermostat

4H0973702A Flat contact housing 2 pin 1

Connection piece black

thermostat

[Name] [Note] [QTY]

O-ring 5,6X2N 1

Fuel line

[Name] [QTY]

oil level sensor 1

D - 12.01.2015>>

mating connector

8K0973703 Flat contact housing with contact locking mechanism 3 pin 1

black

[Name] [QTY]

oil level sensor 1

D >> - 12.01.2015

Replacements: 03C907660T

mating connector

3D0973703 Flat contact housing with contact locking mechanism 3 pin 1

black

[Name] [QTY]

seal ring 1

[Name] [Note] [QTY]

Hexagon collar nut M6 3

[Name] [Note] [QTY]

O-ring 5,6X2 1

Oil temperature sender

[Name] [QTY]

Temperature sensor 1

oil sump

Replacements: 059919523F

mating connector

07P973702 Flat contact housing with contact locking mechanism 2 pin 1

black/yellow

Connection piece

thermostat

4H0973702A Flat contact housing 2 pin 1

Connection piece black

thermostat

[Name] [Note] [QTY]

Oil pressure switch 0,75-1,05BAR 1

oil pipe 1 pin

Grey

mating connector

1J0973081 Flat contact housing with contact locking mechanism 1 pin 1

black

[Name] [QTY]

Temperature sensor 1

oil pipe

Replacements: 059919523F

mating connector

07P973702 Flat contact housing with contact locking mechanism 2 pin 1

black/yellow

Connection piece

thermostat

4H0973702A Flat contact housing 2 pin 1

Connection piece black

thermostat

[Name] [Note] [QTY]

Oil pressure switch 2,0-2,5BAR 1

oil pipe 2 pin

green

mating connector

1J0973702 Flat contact housing with contact locking mechanism 2 pin 1

black

[Name] [Note]

Coolant pipe

see illustration: 121-035

[Name] [Note] [QTY]

Coolant temperature sender 2 pin 1

Grey

20MM

Replacements: 05C919501

mating connector

1J0973702 Flat contact housing with contact locking mechanism 2 pin 1

8K0973702 Flat contact housing with contact locking mechanism 2 pin 1

black

[Name] [QTY]

retaining spring 1

[Name] [Note] [QTY]

O-ring 19,6X3,65 1
