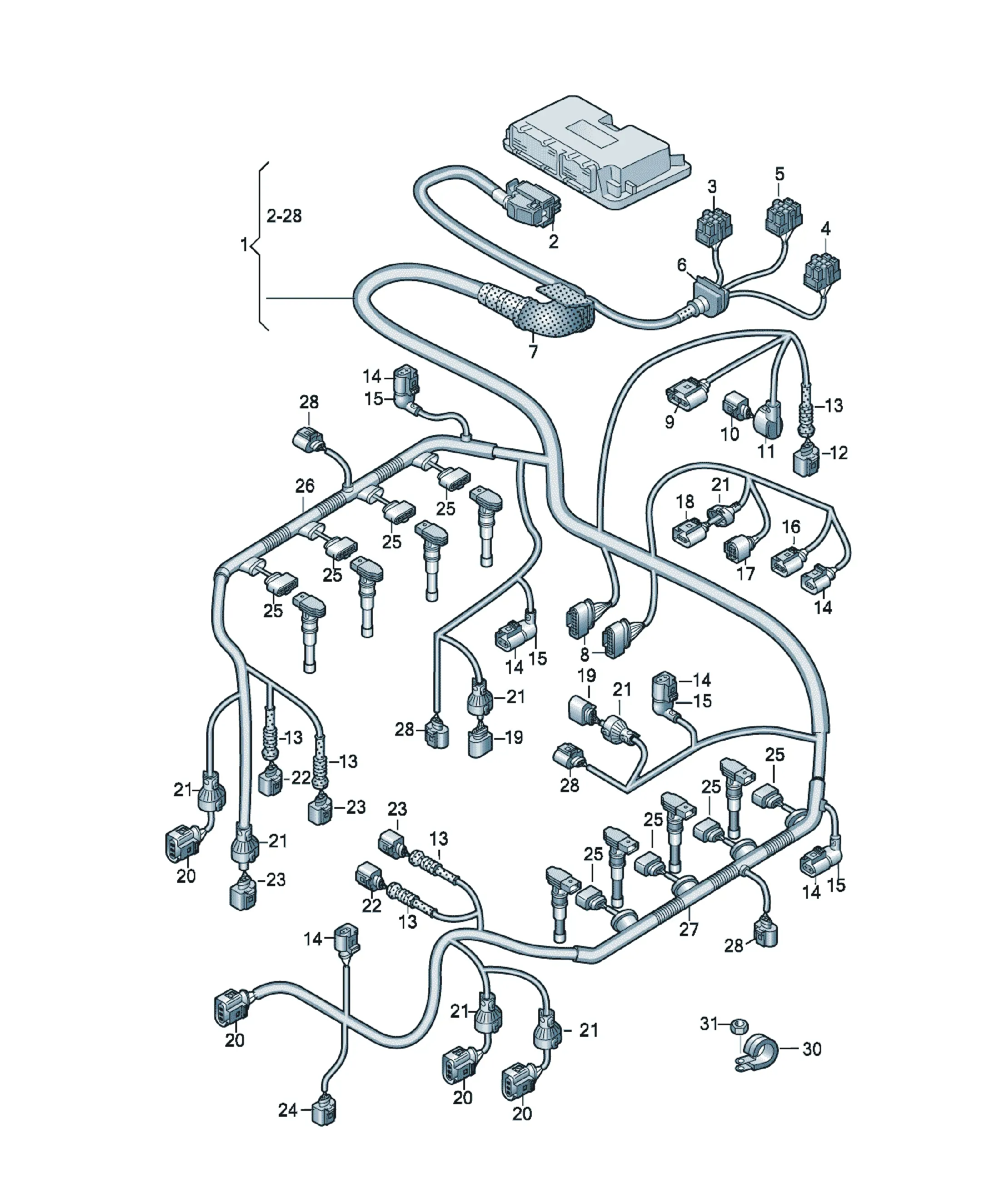

Жгут проводов двигателя

[Name]

* Corrug. tubes, T-pieces, * clips, holders, grommets, * cable ties, insulating * hose, wiring, * single wires and seals * see special catalogue: * ELECTRICAL * CONNECTING ELEMENTS

[Name] [Note] [QTY]

Oval hexagon socket head bolt 4X12 4

Cable guide

ignition coil with spark plug connector

[Name] [QTY]

Heat protection sleeve 1

Connection piece

Engine speed sender

[Name] [Note] [QTY]

Clamping washer 5X30 1

Replacements: N 90335004

[Name] [Model info] [QTY]

Wiring set for engine PR:0GG,0GU, 1

0GV,7GM,7MA,

7MH

[Name] [Model info] [QTY]

Wiring set for engine PR:7GB 1

[Name] [Note] [QTY]

Flat connector housing with contact locking mechanism 2 pin 1

black/orange

Connection piece

Alternator

Possible single wire:

000979016E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact 2,8

000979141E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 2,8

000979237E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 1,0 X

-40C/+105C

flat contact 2,8

[Name] [QTY]

Protective cap 1

Connection piece

Alternator

[Name] [Note] [QTY]

flat contact housing with gasket 1 pin 1

black

Coupling element

Starter

Possible single wire:

000979027E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

flat contact with retaining lug 4,8-6,3MM

000979027EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' X

-40C/+125C

flat contact with retaining lug 0,5

4,8-6,3MM

000979152E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+105C

flat contact with retaining lug 4,8-6,3MM

000979152EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' 1,0 X

-40C/+105C

flat contact with retaining lug 4,8-6,3MM

000979243E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+125C

flat contact with retaining lug 4,8-6,3MM

000979243EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' X

-40C/+125C

with cable crosssection: 2,5

flat contact with retaining lug 4,8-6,3MM

000979308E 1 set single wires each with 2 contacts, in bag of 4 'Order qty. 4' 4,0 X

-40C/+105C

flat contact with retaining lug 4,8-6,3MM

000979308EC 1 set single wires each with 2 silver-plated contacts, in bag of 4 'Order qty. 4' X

-40C/+125C

with cable crosssection: 4,0

flat contact with retaining lug 4,8-6,3MM

000979425E 1 set single wires each with 2 contacts, in bag of 3 'Order qty. 3' 6,0 X

-40C/+125C

with cable crosssection: 6,0

flat contact 4,8-6,3MM

000979425EC 1 set single wires each with 2 silver-plated contacts, in bag of 3 'Order qty. 3' 6,0 X

-40C/+125C

with cable crosssection: 6,0

flat contact 4,8-6,3MM

[Name] [Note] [QTY]

Grommet 11,9X53 X

Coupling element

Knock sensor 4

Starter 1

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 2 pin X

black

Connection piece

camshaft adjuster unit 4

Temperature sensor 1

A/C compressor 1

mating connector

1J0973802 Flat connector housing with contact locking mechanism 2 pin 1

black

Possible single wire:

000979019E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact 1,5

000979019EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact 1,5

000979038EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

flat contact with retaining lug 1,5

000979038FA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

flat contact 1,5

(Copper wires galvanised)

000979131E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 1,5

000979131EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 1,5

000979253E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X

-40C/+125C

flat contact 1,5

[Name] [QTY]

Bracket protective cover 4

Connection piece

camshaft adjuster unit

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 2 pin X

black

Connection piece

Secondary air valve 2

Valve for active charcoal canister 1

Solenoid valve 1

Intake manifold

mating connector

8D0973822 Flat connector housing with contact locking mechanism 2 pin 1

Possible single wire:

000979021E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 2,8

counterpart to: 000 979 022 E

000979021EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 2,8

000979133E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 2,8

000979133EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 2,8

000979225E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+125C

flat contact 2,8

000979225EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+105C

flat contact 2,8

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 6 pin 1

Connection piece

Throttle valve positioner

mating connector

3B0973813 Flat connector housing with contact locking mechanism 6 pin 1

black

Possible single wire:

000979025E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact with retaining lug 1,5

000979025EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact with retaining lug 1,5

000979025EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' 0,5 X

-40C/+125C

flat contact with retaining lug 1,5

000979025FA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact with retaining lug 1,5

(Copper wires galvanised)

000979150E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact with retaining lug 1,5

000979150EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact with retaining lug 1,5

000979150EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' 1,0 X

-40C/+125C

flat contact with retaining lug 1,5

000979255E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X

-40C/+125C

flat contact 1,5

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 3 pin 1

Grey

Connection piece

Low-pressure sensor

Fuel line

Possible single wire:

000979019E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact 1,5

counterpart to: 000 979 020 E

000979019EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact 1,5

counterpart to: 000 979 020 EA

000979038EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

flat contact with retaining lug 1,5

000979038FA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

flat contact 1,5

(Copper wires galvanised)

000979131E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 1,5

000979131EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 1,5

000979253E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X

-40C/+125C

flat contact 1,5

[Name] [Note] [QTY]

Flat connector housing with contact locking mechanism 2 pin 2

black/blue

Connection piece

high pressure pump

Possible single wire:

000979016E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact 2,8

000979141E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 2,8

000979237E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 1,0 X

-40C/+105C

flat contact 2,8

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 60-pin 1

Connection piece

Engine control unit

Possible single wire:

000979030E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact with retaining lug 0,63

000979246E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X

-40C/+125C

flat contact 1,5

7L0971904 Sealing pin 1,5 X

7L0971904A Sealing pin 0,63 X

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 3 pin 4

black

Connection piece

variable intake manifold

mating connector

1J0973803 Flat contact housing with contact locking mechanism 3 pin 1

black

Possible single wire:

000979019E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact 1,5

counterpart to: 000 979 020 E

000979019EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact 1,5

counterpart to: 000 979 020 EA

000979038EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

flat contact with retaining lug 1,5

000979038FA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

flat contact 1,5

(Copper wires galvanised)

000979131E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 1,5

000979131EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 1,5

000979253E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X

-40C/+125C

flat contact 1,5

[Name] [QTY]

Protective cap X

Connection piece

variable intake manifold 3

high pressure pump 2

Low-pressure sensor 1

fuel pipe

Tumble flap for variable intake manifold 1

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 3 pin 2

black

Connection piece

Knock sensor Cylinder 1, 2

cylinders 5,6

Possible single wire:

000979019E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact 1,5

counterpart to: 000 979 020 E

000979019EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact 1,5

counterpart to: 000 979 020 EA

000979038EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

flat contact with retaining lug 1,5

000979038FA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

flat contact 1,5

(Copper wires galvanised)

000979131E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 1,5

000979131EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 1,5

000979253E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X

-40C/+125C

flat contact 1,5

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 3 pin X

brown

Connection piece

Knock sensor cylinders 3,4 1

Knock sensor Cylinder 7,8 1

Tumble flap for variable intake manifold 1

Possible single wire:

000979019E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact 1,5

counterpart to: 000 979 020 E

000979019EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact 1,5

counterpart to: 000 979 020 EA

000979038EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

flat contact with retaining lug 1,5

000979038FA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

flat contact 1,5

(Copper wires galvanised)

000979131E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 1,5

000979131EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 1,5

000979253E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X

-40C/+125C

flat contact 1,5

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 2 pin 1

yellow

Connection piece

thermostat

Possible single wire:

000979034E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' X

-40C/+125C

with cable crosssection: 0,5QMM

flat contact with retaining lug 1,2MM

000979034EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' X

-40C/+125C

with cable crosssection: 0,5QMM

flat contact with retaining lug 1,2MM

000979034EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' X

-40C/+125C

with cable crosssection: 0,5QMM

flat contact with retaining lug 1,2MM

000979159E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' X

-40C/+125C

with cable crosssection: 1,0QMM

flat contact with retaining lug 1,2MM

000979159EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' X

-40C/+125C

with cable crosssection: 1,0QMM

flat contact with retaining lug 1,2MM

000979159EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' X

-40C/+125C

with cable crosssection: 1,0QMM

flat contact with retaining lug 1,2MM

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 4 pin 8

black

Connection piece

ignition coil with spark plug connector

Possible single wire:

000979016E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact 2,8

000979141E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 2,8

000979237E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 1,0 X

-40C/+105C

flat contact 2,8

[Name] [Note] [QTY]

Cable guide red 1

ignition coil with spark plug connector Cylinders 1-4

[Name] [Note] [QTY]

Cable guide red 1

ignition coil with spark plug connector Cylinder 5-8

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 3 pin X

Connection piece

impulse sender 4

Camshaft

Pressure sensor 1

Secondary air pump

Possible single wire:

000979034E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' X

-40C/+125C

with cable crosssection: 0,5QMM

flat contact with retaining lug 1,2MM

000979034EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' X

-40C/+125C

with cable crosssection: 0,5QMM

flat contact with retaining lug 1,2MM

000979034EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' X

-40C/+125C

with cable crosssection: 0,5QMM

flat contact with retaining lug 1,2MM

000979159E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' X

-40C/+125C

with cable crosssection: 1,0QMM

flat contact with retaining lug 1,2MM

000979159EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' X

-40C/+125C

with cable crosssection: 1,0QMM

flat contact with retaining lug 1,2MM

000979159EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' X

-40C/+125C

with cable crosssection: 1,0QMM

flat contact with retaining lug 1,2MM

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 10 pin 1

black

Coupling element

harness for engine compartment

mating connector

1J0937743 Flat connector housing with contact locking mechanism 10 pin 1

black

also to be used for: violet

green

1J0937743K Flat connector housing with contact locking mechanism 10 pin 1

violet

Possible single wire:

000979019E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact 1,5

counterpart to: 000 979 020 E

000979019EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact 1,5

counterpart to: 000 979 020 EA

000979021E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 2,8

counterpart to: 000 979 022 E

000979021EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 2,8

000979038EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

flat contact with retaining lug 1,5

000979038FA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

flat contact 1,5

(Copper wires galvanised)

000979131E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 1,5

000979131EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 1,5

000979133E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 2,8

000979133EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 2,8

000979225E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+125C

flat contact 2,8

000979225EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+105C

flat contact 2,8

000979227E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+105C

flat contact with retaining lug 4,8

000979227EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+105C

flat contact with retaining lug 4,8

000979253E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X

-40C/+125C

flat contact 1,5

[Name] [Note] [QTY]

Clamp 28X15 1

[Name] [Note] [QTY]

Double binding cable tie High temperature proof to: 4,8X197 X

195C

[Name] [Note] [QTY]

hex. nut with washer M6 1

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 10 pin 1

red

Coupling element

harness for engine compartment

mating connector

1J0937743B Flat connector housing with contact locking mechanism 10 pin 1

red

also to be used for: white

light-green

Possible single wire:

000979019E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact 1,5

counterpart to: 000 979 020 E

000979019EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact 1,5

counterpart to: 000 979 020 EA

000979021E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 2,8

counterpart to: 000 979 022 E

000979021EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 2,8

000979038EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

flat contact with retaining lug 1,5

000979038FA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

flat contact 1,5

(Copper wires galvanised)

000979131E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 1,5

000979131EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 1,5

000979133E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 2,8

000979133EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 2,8

000979225E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+125C

flat contact 2,8

000979225EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+105C

flat contact 2,8

000979253E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X

-40C/+125C

flat contact 1,5

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 3 pin 1

red

only to be used for: 6 pin

white

also use: 1J0 937 714 B 1

Coupling element

harness for engine compartment

Accompanying details: 1J0937714B

mating connector

1J0937723B Flat contact housing with contact locking mechanism 3 pin X

red

use if required: 1J0 937 724 B

only to be used for: white

khaki grey

Possible single wire:

000979021E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 2,8

counterpart to: 000 979 022 E

000979021EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 2,8

000979023E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

Flat male connector with detent lug 4,8

000979133E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 2,8

000979133EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 2,8

000979135E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact with retaining lug 4,8

000979225E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+125C

flat contact 2,8

000979225EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+105C

flat contact 2,8

000979227E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+105C

flat contact with retaining lug 4,8

000979227EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+105C

flat contact with retaining lug 4,8

000979306E 1 set single wires each with 2 contacts, in bag of 4 'Order qty. 4' 4,0 X

-40C/+125C

flat contact with retaining lug 4,8

000979407E 1 set single wires each with 2 contacts, in bag of 3 'Order qty. 3' 6,0 X

-40C/+105C

flat contact with retaining lug 4,8

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 3 pin 1

red

mating connector

1J0937724B Flat contact housing with contact locking mechanism 3 pin X

red

use if required: 1J0 937 723 B

only to be used for: white

khaki grey

Possible single wire:

000979021E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 2,8

counterpart to: 000 979 022 E

000979021EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 2,8

000979023E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

Flat male connector with detent lug 4,8

000979133E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 2,8

000979133EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 2,8

000979135E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact with retaining lug 4,8

000979225E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+125C

flat contact 2,8

000979225EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+105C

flat contact 2,8

000979227E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+105C

flat contact with retaining lug 4,8

000979227EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+105C

flat contact with retaining lug 4,8

000979306E 1 set single wires each with 2 contacts, in bag of 4 'Order qty. 4' 4,0 X

-40C/+125C

flat contact with retaining lug 4,8

000979407E 1 set single wires each with 2 contacts, in bag of 3 'Order qty. 3' 6,0 X

-40C/+105C

flat contact with retaining lug 4,8

[Name] [QTY]

Grommet 1

[Name] [QTY]

Grommet 1

water box

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 14 pin X

Coupling element black

wiring harness for injectors 1

Pressure sensor 1

Fuel line

mating connector

6X0973817 Flat contact housing with contact locking mechanism 14 pin 1

black

Possible single wire:

000979019E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact 1,5

counterpart to: 000 979 020 E

000979019EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact 1,5

counterpart to: 000 979 020 EA

000979038EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

flat contact with retaining lug 1,5

000979038FA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

flat contact 1,5

(Copper wires galvanised)

000979131E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 1,5

000979131EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 1,5

000979253E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X

-40C/+125C

flat contact 1,5

[Name] [Note] [QTY]

flat contact housing with gasket 3 pin 1

Grey

Connection piece

Engine speed sender

Possible single wire:

000979021E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 2,8

counterpart to: 000 979 022 E

000979021EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 2,8

000979133E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 2,8

000979133EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 2,8

000979225E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+125C

flat contact 2,8

000979225EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+105C

flat contact 2,8
