Электроника двигателя, датчики

Датчики двигателя и коробки передач

Схемы узла

15 схем

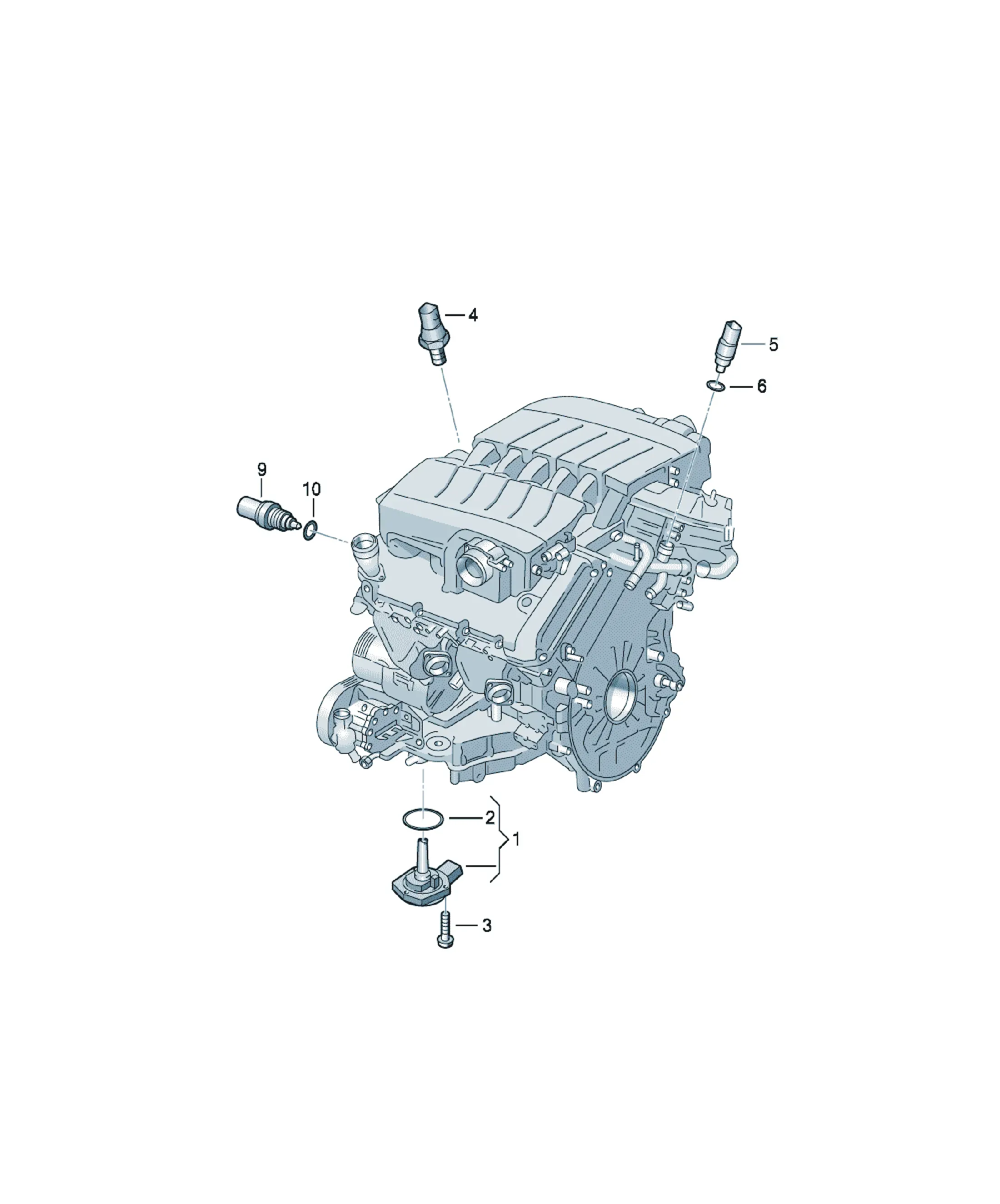

Схема «Датчики двигателя и коробки передач»

Детали

8 деталей

03C907660H Предложения

[Name] [QTY]
oil level sensor 1
mating connector
3D0973703 Flat contact housing with contact locking mechanism 3 pin 1
black
WHT002287C Предложения

[Name] [Note] [QTY]
O-ring 5,6X2N 1
Oil temperature sender
038103196B Предложения

[Name] [QTY]
seal ring 1
N91071701 Предложения

[Name] [Note] [QTY]
Hexagon socket flat head bolt M6X25 3
038919081M Предложения

[Name] [Note] [QTY]
Oil pressure switch 0,75-1,05BAR 1
1 pin
Grey
mating connector
1J0973081 Flat contact housing with contact locking mechanism 1 pin 1
black
059919523A Предложения

[Name] [QTY]
Temperature sensor 1
for coolant temperature gauge
Replacements: 059919523F
mating connector
07P973702 Flat contact housing with contact locking mechanism 2 pin 1
black/yellow
Connection piece
thermostat
4H0973702A Flat contact housing 2 pin 1
Connection piece black
thermostat
WHT002287B Предложения

[Name] [Note] [QTY]
O-ring 5,6X2 1
for coolant temperature gauge
059919523A Предложения

[Name] [QTY]
Temperature sensor 1
Oil temperature sender
Replacements: 059919523F
mating connector
07P973702 Flat contact housing with contact locking mechanism 2 pin 1
black/yellow
Connection piece
thermostat
4H0973702A Flat contact housing 2 pin 1
Connection piece black
thermostat
