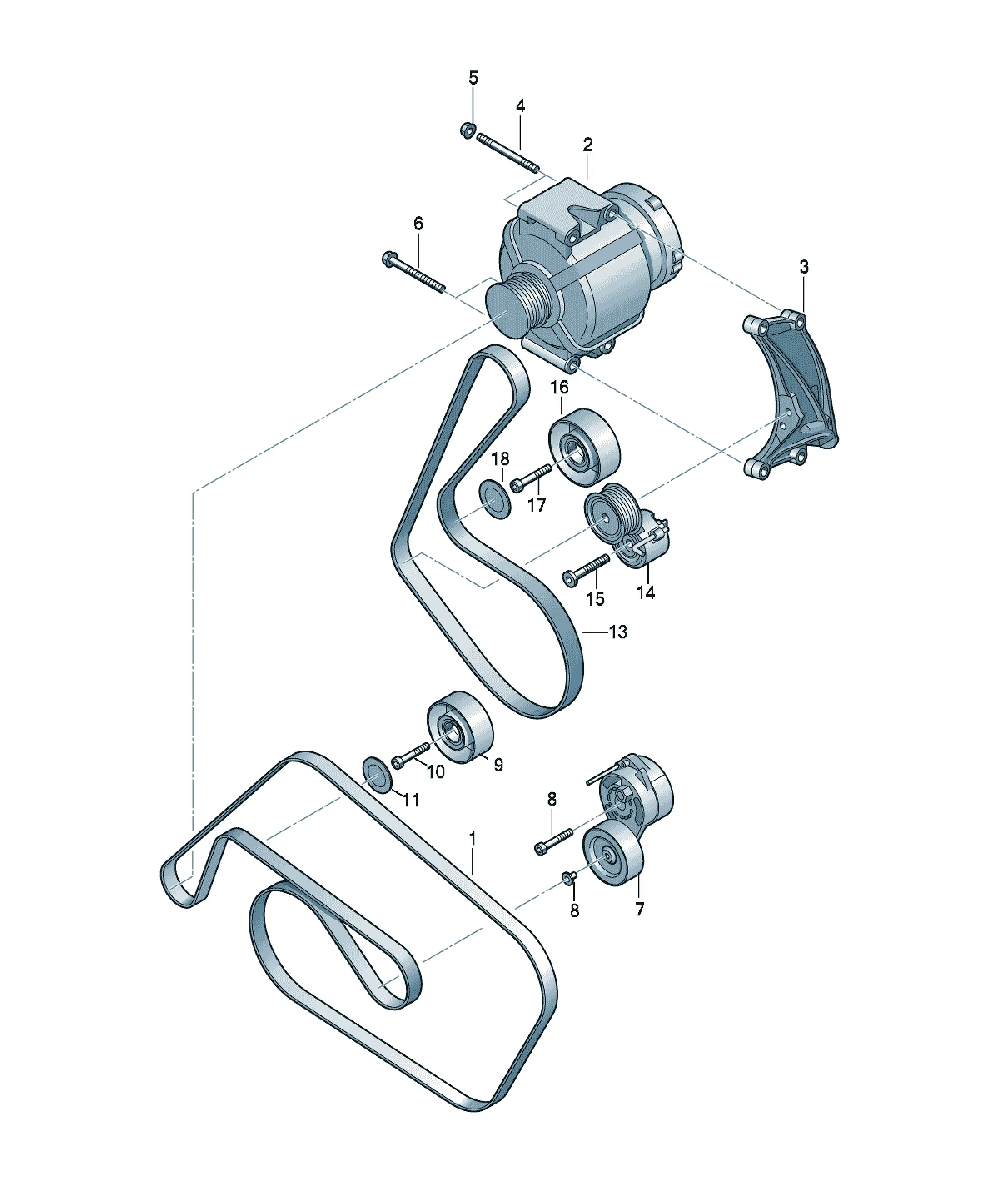

Кронштейн и привод генератора

[Name] [Note] [QTY]

Poly-V-belt 21,36X2475MM 1

A/C compressor

[Name] [Note]

locking screw

Included in position: 9

[Name]

Protective cap

Not for this model

[Name] [Note] [QTY]

Poly-V-belt 24,92X1270MM 1

Air compressor

[Name] [QTY]

Belt tensioner damper 1

Air compressor

[Name] [Note] [QTY]

Flat head multi-point socket bolt M10X60MM 1

[Name] [QTY]

idler pulley with bolt 1

Air compressor

[Name] [Note]

locking screw

Included in position: 16

[Name]

Protective cap

Not for this model

[Name] [Note]

Alternator

see illustration, item: 903-000,1

[Name] [QTY]

bracket for alternator 1

D - MJ 2013>>

[Name] [Note] [QTY]

Socket head bolt with inner multipoint head M8X60 4

[Name]

Hexagon collar nut

Not for this model

[Name] [Note] [QTY]

Hex collared bolt M8X90 2

[Name] [QTY]

Belt tensioner damper 1

[Name] [Note] [QTY]

Flat head multi-point socket bolt M10X60MM 1

Belt tensioner damper

[Name] [Note]

locking screw

track roller

Belt tensioner damper

Included in position: 7

[Name] [QTY]

idler pulley with bolt 1
