Ремень приводной

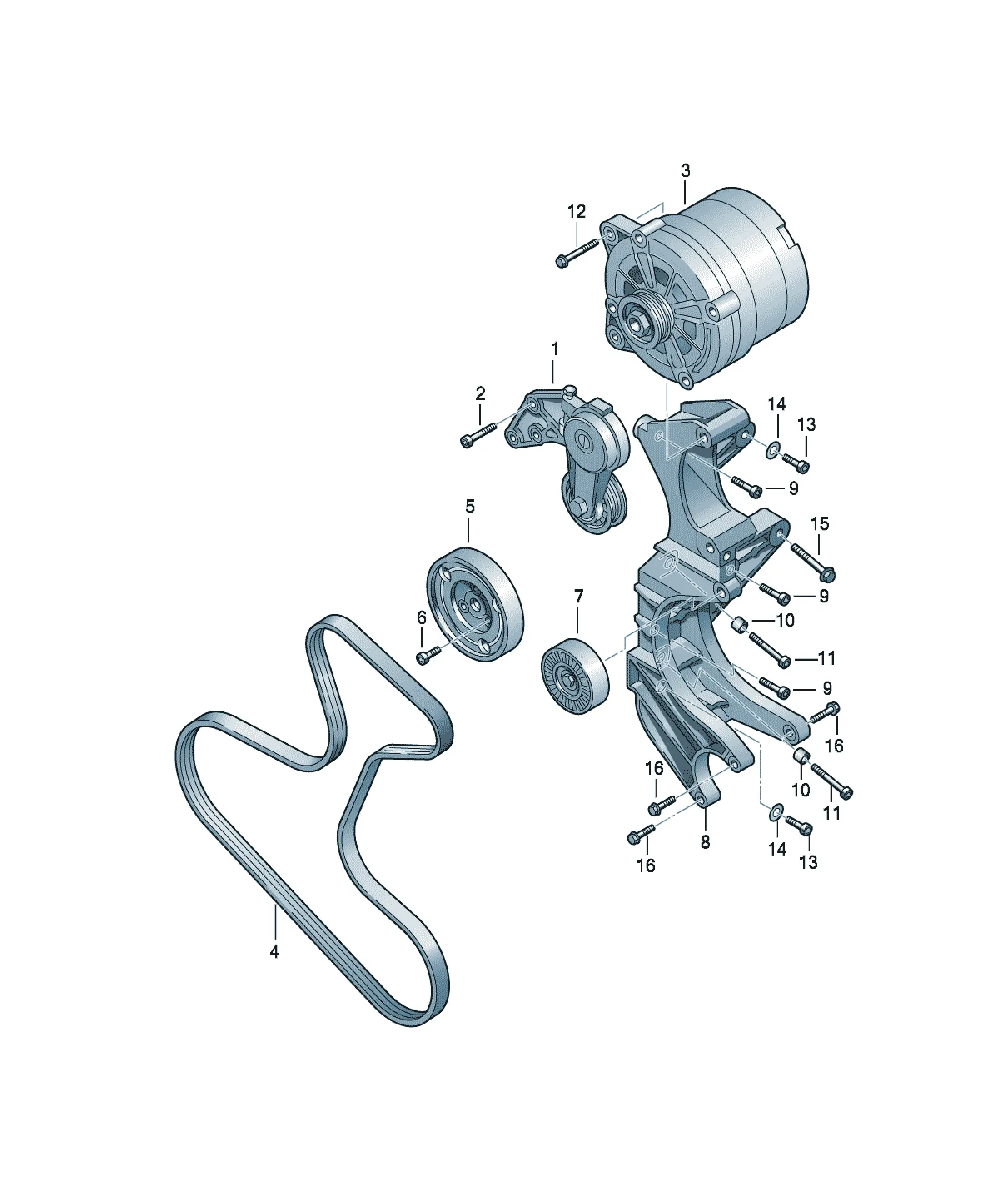

Привод генератора

Схемы узла

6 схем

9 деталей

022145299E Предложения

[Name] [QTY]
Belt tensioner damper 1
N10610001 Предложения

[Name] [Note] [QTY]
Hex collared bolt M8X90 2
N91076601 Предложения

[Name] [Note] [QTY]
Socket head bolt with inner multipoint head M8X30 3
[Name] [Note]
Alternator
see illustration, item: 903-000,1
022145933P Предложения

[Name] [Note] [QTY]
Double poly V-belt 24,92X2074MM 1
[Name] [Note]
Poly V-belt pulley
Coolant pump
see illustration, item: 121-003,3
[Name] [Note]
Socket head bolt
see illustration, item: 121-003,4
022145276A Предложения

[Name] [Note] [QTY]
idler pulley with bolt 60MM 1
[Name] [Note]
bracket for alternator
see illustration, item: 260-000,1
