Ремень приводной

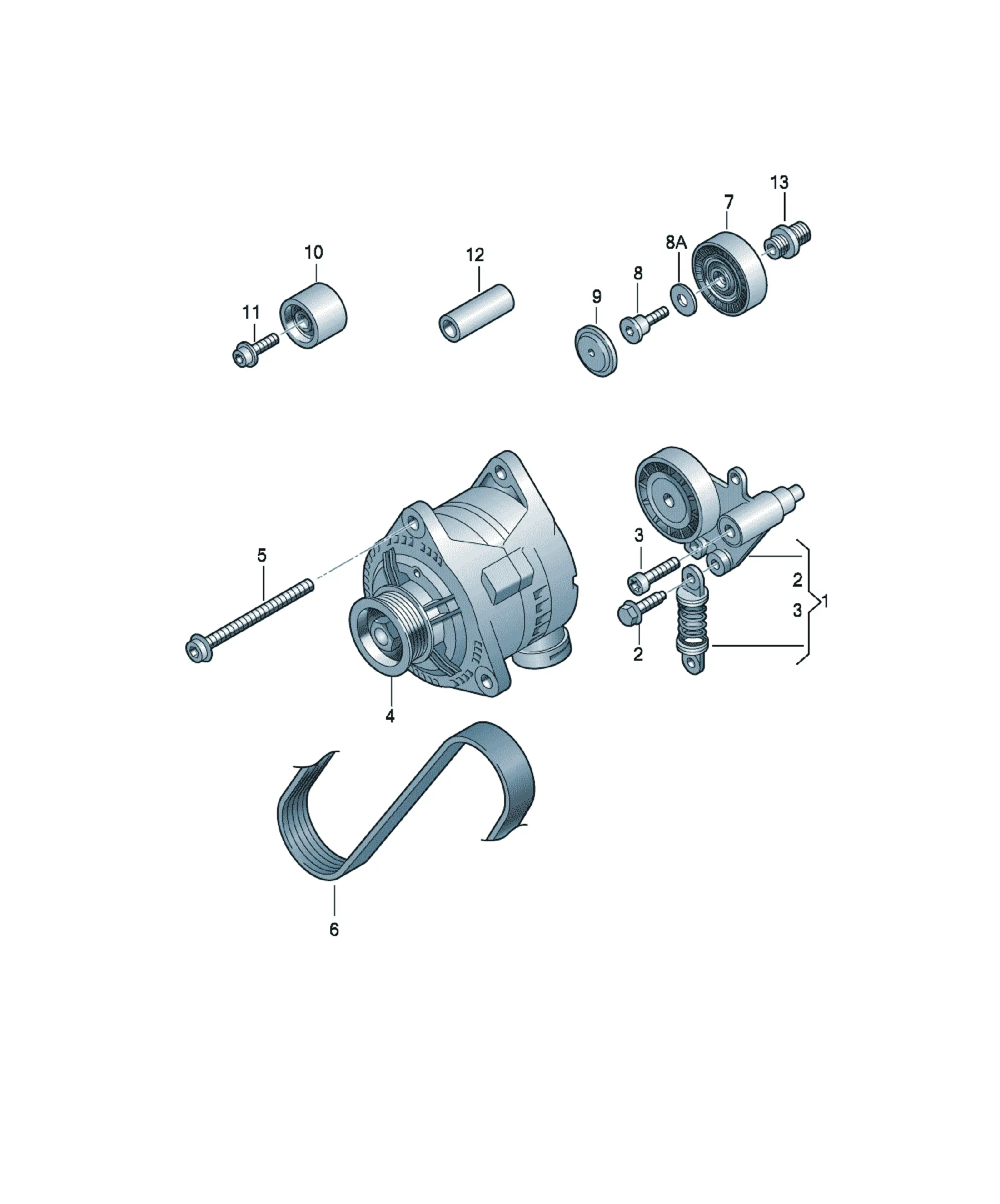

Крепление генератора

Схемы узла

6 схем

13 деталей

05A903133C Предложения

[Name] [QTY]
Belt tensioner damper 1
[Name] [Note]
idler pulley
see illustration, item: 103-070,54
05A109224C Предложения

[Name] [QTY]
bearing pin 2
idler pulley
N91057501 Предложения

[Name] [Note] [QTY]
Socket head bolt with inner multipoint head M10X65X45 1
[Name] [Note]
Alternator
see illustration, item: 903-000,1
N10610001 Предложения

[Name] [Note] [QTY]
Hex collared bolt M8X90 2
05A903137A Предложения

[Name] [Note] [QTY]
Poly-V-belt 25,21X2501MM 1
05A903389B Предложения

[Name] [Note] [QTY]
idler pulley 76,2MM 1
right
05A903403C Предложения

[Name] [Note] [QTY]
idler pulley 65,0MM 1
left upper
N10544903 Предложения

[Name] [Note] [QTY]
Socket head bolt with inner multipoint head M8X55 2
N90477302 Предложения

[Name] [Note] [QTY]
Washer 8,4X24X3 1
idler pulley 65,0MM
N90074104 Предложения

[Name] [Note] [QTY]
Washer 8,4X25X4 1
idler pulley 76,2MM
[Name] [Note] [QTY]
dust cap 2
Included in position: 7
