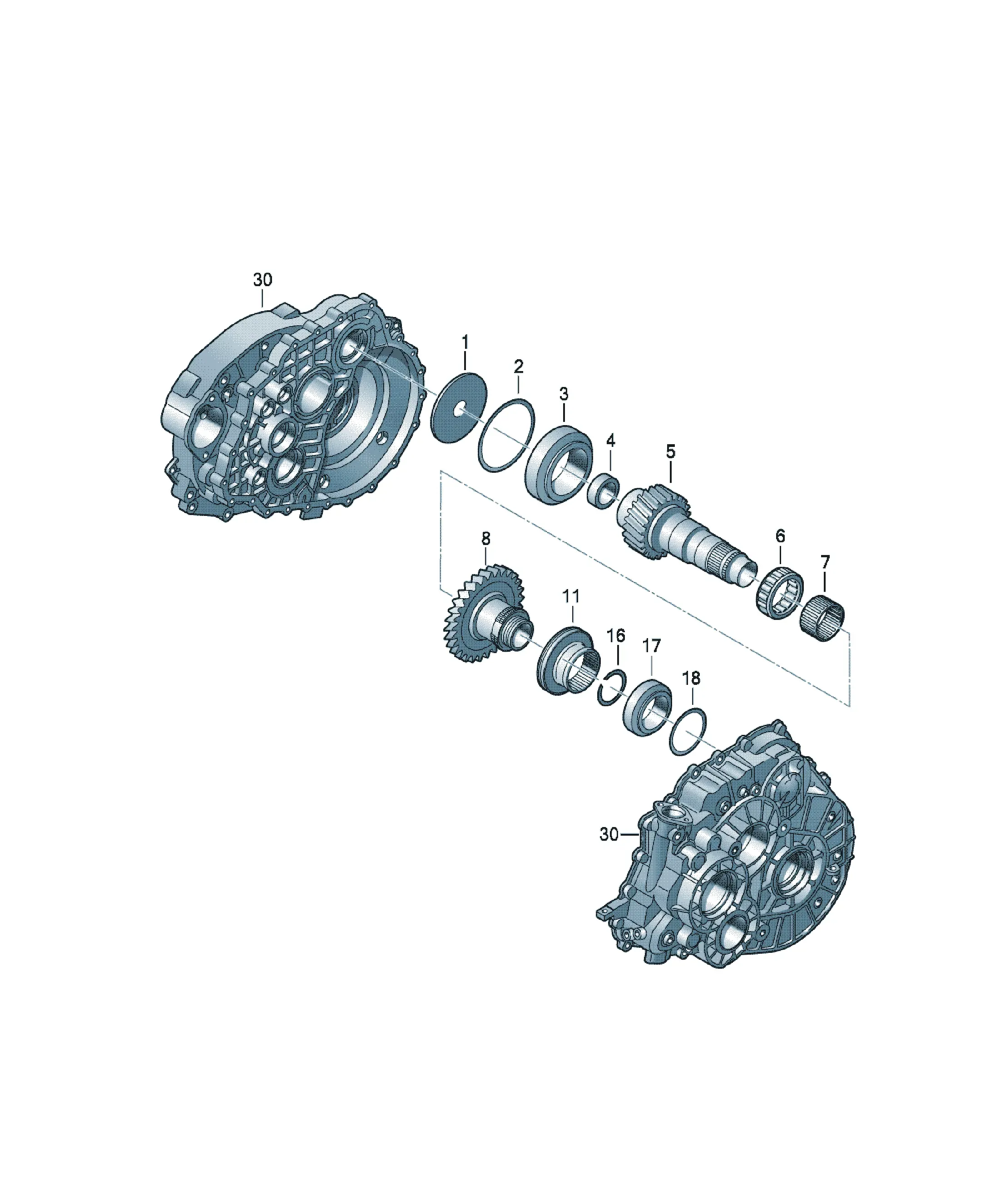

Вторичный вал коробки передач

[Name] [QTY]

oil thrower 1

[Name] [Note] [QTY]

synchronizing hub with locking collar Reverse gear 1

Replacements: 0A5311759B; 0A5311215C

[Name] [Note] [QTY]

Securing ring 28,3X36,3X2,5 1

[Name] [Note] [QTY]

Taper roller bearing 25X47X15 1

[Name] [Note] [QTY]

1 set shims 0,65-1,25 1

repair set

0A5311392 adjusting washer 0,65 1

0A5311392A adjusting washer 0,70 1

0A5311392B adjusting washer 0,75 1

0A5311392C adjusting washer 0,80 1

0A5311392D adjusting washer 0,85 1

0A5311392E adjusting washer 0,90 1

0A5311392F adjusting washer 0,95 1

0A5311392G adjusting washer 1,00 1

0A5311392H adjusting washer 1,05 1

0A5311392J adjusting washer 1,10 1

0A5311392K adjusting washer 1,15 1

0A5311392L adjusting washer 1,20 1

0A5311392M adjusting washer 1,25 1

[Name] [Note] [QTY]

1 set shims 0,65-1,25 1

repair set

02K409210 adjusting washer 0,65 1

02K409210A adjusting washer 0,7 1

02K409210B adjusting washer 0,75 1

02K409210C adjusting washer 0,8 1

02K409210D adjusting washer 0,85 1

02K409210E adjusting washer 0,9 1

02K409210F adjusting washer 0,95 1

02K409210G adjusting washer 1 1

02K409210H adjusting washer 1,05 1

02K409210J adjusting washer 1,1 1

02K409210K adjusting washer 1,15 1

02K409210L adjusting washer 1,2 1

02K409210M adjusting washer 1,25 1

[Name] [Note] [QTY]

Taper roller bearing 38,1X65X18 1

[Name] [Note]

Gear housing

see illustration: 301-040

[Name] [Note]

Gear housing

see illustration: 301-020

[Name] [Note] [QTY]

Cup washer 14X27,15X2X10 1

[Name]

No replacement part

The complete gearbox is to be used.

[Name] [Note] [QTY]

needle bearing - 37X49X15,8 1

[Name] [Note] [QTY]

needle bearing - 33X38X19,8 1

Replacements: 0A5311848B

[Name] [Note] [QTY]

change gear Reverse gear 1

Z=29/23

Replacements: 0A5311215C
