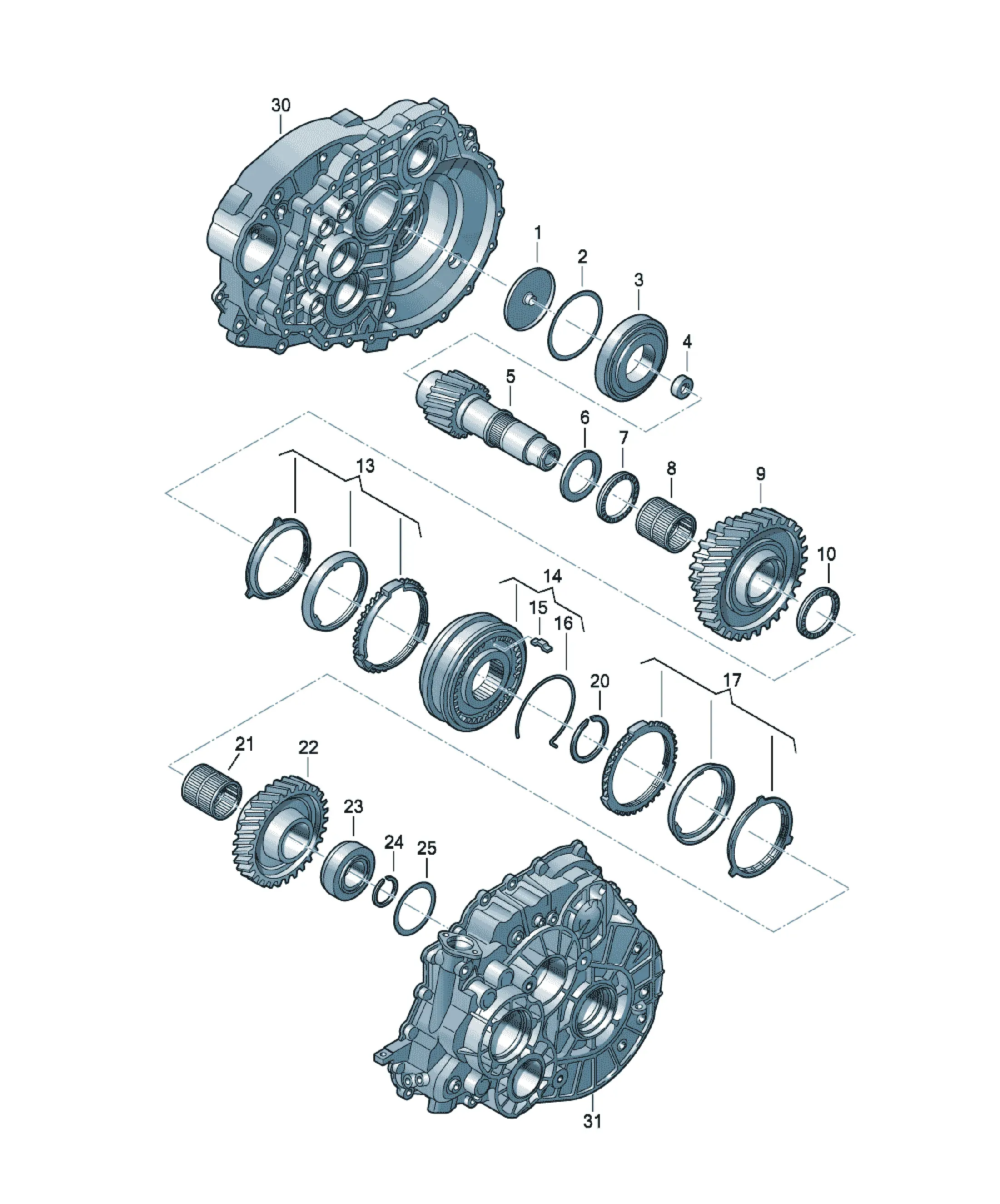

Вторичный вал КПП

[Name] [QTY]

oil thrower 1

[Name] [Note] [QTY]

needle bearing - 45,2X59,4X3,5 1

[Name] [Note] [QTY]

1 set synchro-rings 1.gear 1

also use: >>G 10 119

0A5 311 249 A 1

Accompanying details: 0A5311249A

Replacements: 02M311197P

[Name] [Note] [Model info] [QTY]

synchronizing hub with locking collar 1./2.gear 1

also use: >>G 10 119

0A5 311 249 B 2

>>G 03 100

0A5 311 261 AD KUG,KVB,KVC, 1

KQQ

0A5 311 261 AE KKJ,LMX 1

Accompanying details: 0A5311249B; 0A5311261AD; 0A5311261AE

[Name] [Note] [Model info] [QTY]

synchronizing hub with locking collar 1./2.gear 1

also use: >>G 10 119

0A5 311 249 B 2

>>G 03 100

0A5 311 261 AE KLX,LMW 1

0A5 311 261 AC LMY 1

Accompanying details: 0A5311249B; 0A5311261AE; 0A5311261AC

[Name] [Note] [QTY]

locking piece 1./2.gear 3

[Name] [Note] [QTY]

Spring 1./2.gear 2

G 11 11 9>>

[Name] [Note] [QTY]

Spring 1./2.gear 2

G >> 10 11 9

[Name] [Note] [QTY]

1 set synchro-rings 2.gear 1

also use: >>G 10 119

0A5 311 249 A 1

Accompanying details: 0A5311249A

Replacements: 02M311197P

[Name] [Note] [QTY]

1 set shims 0,65-1,25 1

repair set

0A5311140 adjusting washer 0,65 1

0A5311140A adjusting washer 0,70 1

0A5311140B adjusting washer 0,75 1

0A5311140C adjusting washer 0,80 1

0A5311140D adjusting washer 0,85 1

0A5311140E adjusting washer 0,90 1

0A5311140F adjusting washer 0,95 1

0A5311140G adjusting washer 1,00 1

0A5311140H adjusting washer 1,05 1

0A5311140J adjusting washer 1,10 1

0A5311140K adjusting washer 1,15 1

0A5311140L adjusting washer 1,20 1

0A5311140M adjusting washer 1,25 1

[Name] [Note] [QTY]

Securing ring 38,9X45,3X2,5 1

[Name] [Note] [QTY]

needle bearing - 41X46X37,8 1

[Name] [Note] [Model info] [QTY]

change gear 2.gear LMY 1

40/21

also use: >>G 03 100

02M 311 239 G 1

Accompanying details: 02M311239G

[Name] [Note] [Model info] [QTY]

change gear 2.gear KUG,KVB,KVC, 1

41/20 LMV,LMU,KQQ

>>G 03 100

also use: 02M 311 239 G 1

Accompanying details: 02M311239G

[Name] [Note] [Model info] [QTY]

change gear 2.gear KKJ,LMX 1

41/19

>>G 03 100

also use: 02M 311 239 G 1

Accompanying details: 02M311239G

[Name] [Note] [Model info] [QTY]

change gear 2.gear KLX,LMW 1

41/19

>>G 03 100

also use: 02M 311 239 G 1

Accompanying details: 02M311239G

[Name] [Note] [QTY]

Taper roller bearing 31,8X68,3X22,2 1

Replacements: 0A5311123B

[Name] [Note] [QTY]

Securing ring 29,5X35,9X2,5 1

[Name] [Note] [QTY]

1 set shims 0,65-1,25 1

repair set

0A5311391 adjusting washer 0,65 1

0A5311391A adjusting washer 0,70 1

0A5311391B adjusting washer 0,75 1

0A5311391C adjusting washer 0,80 1

0A5311391D adjusting washer 0,85 1

0A5311391E adjusting washer 0,90 1

0A5311391F adjusting washer 0,95 1

0A5311391G adjusting washer 1,00 1

0A5311391H adjusting washer 1,05 1

0A5311391J adjusting washer 1,10 1

0A5311391K adjusting washer 1,15 1

0A5311391L adjusting washer 1,20 1

0A5311391M adjusting washer 1,25 1

[Name] [Note] [QTY]

Taper roller bearing 47,6X96,8X21 1

Replacements: 0A5311220D

[Name] [Note]

clutch housing

see illustration, item: 301-040,1

[Name] [Note]

clutch housing

see illustration, item: 301-020,1

[Name] [Note]

Gear housing

see illustration, item: 301-020,10

[Name] [Note]

Gear housing

see illustration, item: 301-040,10

[Name] [Note] [QTY]

Cup washer 14X27,15X2X10 1

[Name]

No replacement part

The complete gearbox is to be used.

[Name] [Note] [QTY]

thrust washer 1.gear 1

[Name] [Note] [QTY]

needle bearing - 44,5X61,5X3 1

[Name] [Note] [QTY]

needle bearing - 41X46X37,8 1

[Name] [Note] [Model info] [QTY]

change gear 1.gear KLX,LMW 1

51/13

[Name] [Note] [QTY]

change gear 1.gear 1

51/13

[Name] [Note] [Model info] [QTY]

change gear 1.gear LMY 1

50/14
