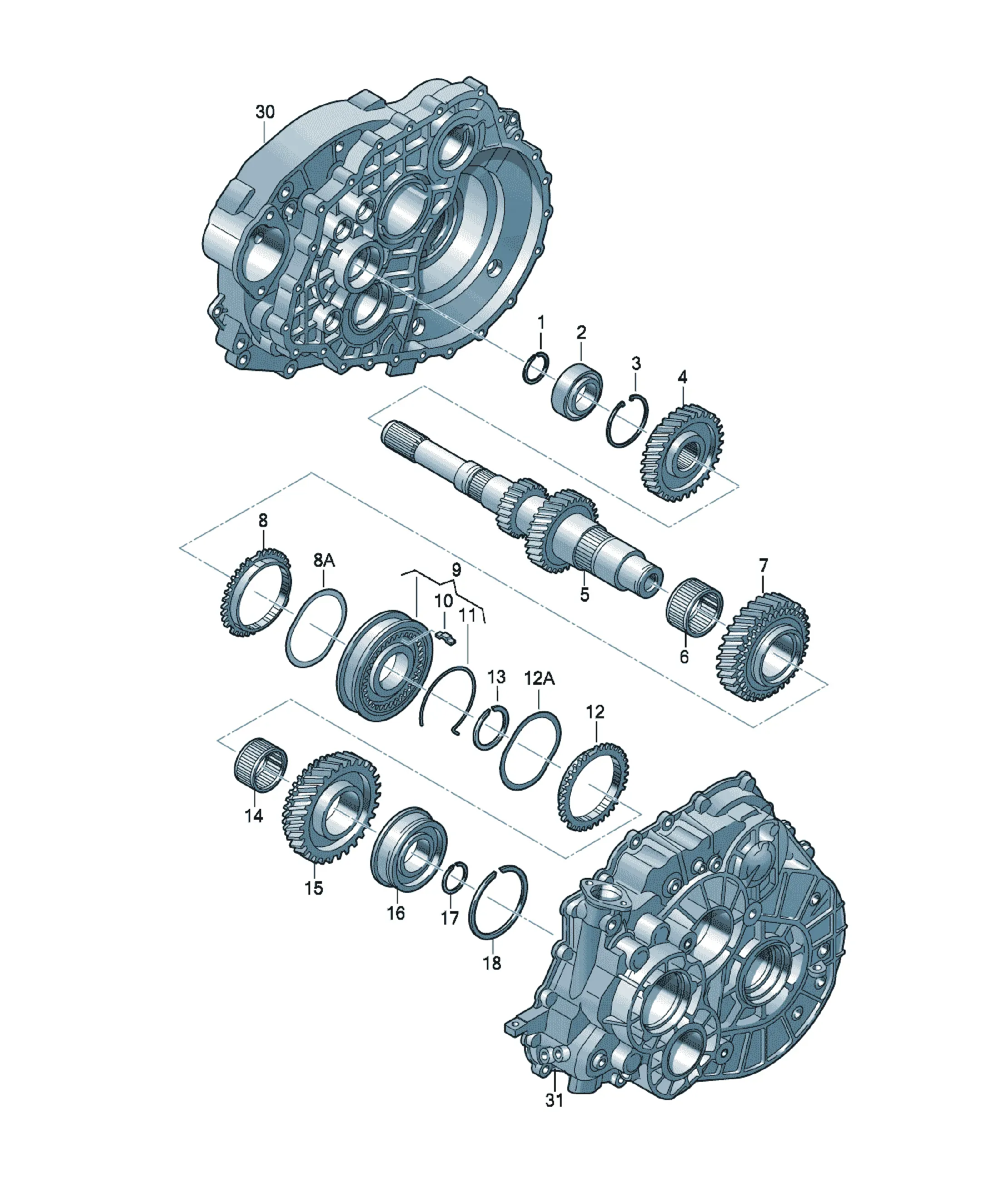

Первичный вал КПП

[Name] [Note] [QTY]

Securing ring 27,2X33,6X2,54 1

[Name] [QTY]

locking piece 3

[Name] [QTY]

Spring 2

[Name] [Note] [QTY]

synchronizer ring 6th gear 1

[Name] [Note] [QTY]

Wave spring washer 5th/6th gear 1

[Name] [Note] [QTY]

Securing ring 36X42,4X2,5 1

[Name] [Note] [QTY]

needle bearing - 38X44X26,8 1

[Name] [Note] [Model info] [QTY]

change gear 6th gear KKJ,LMX 1

33/36

[Name] [Note] [Model info] [QTY]

change gear 6th gear KVC,LMU 1

29/40

[Name] [Note] [Model info] [QTY]

change gear 6th gear KLX,LMW 1

33/36

[Name] [Note] [Model info] [QTY]

change gear 6th gear LMY 1

29/40

[Name] [Note] [Model info] [QTY]

change gear 6th gear KUG,KVB,LMV, 1

30/39 KQQ

[Name] [Note] [QTY]

grooved ball bearing 30X72X24,7

G 10 12 7>> 1

Replacements: 0A5311235K

[Name] [Note] [QTY]

grooved ball bearing 30X72X24,7

G >> 09 12 7 1

[Name] [Note] [QTY]

Securing ring 27,2X33,6X2,54 1

[Name] [Note] [QTY]

Securing ring 69,4X2 1

[Name] [Note] [QTY]

roller bearing 30,2X59X22 1

Replacements: 0A5311372B

[Name] [Note] [QTY]

Securing ring 57,2X61X1,5 1

[Name] [Note]

clutch housing

see illustration, item: 301-040,1

[Name] [Note]

clutch housing

see illustration, item: 301-020,1

[Name] [Note]

Gear housing

see illustration, item: 301-020,10

[Name] [Note]

Gear housing

see illustration, item: 301-040,10

[Name] [Note] [Model info] [QTY]

gear 4-speed KVC,LMU 1

37/32

[Name] [Note] [Model info] [QTY]

gear 4-speed KUG,KVB,LMV, 1

38/31 KQQ

[Name] [Note] [Model info] [QTY]

gear 4-speed LMY 1

37/32

[Name] [Note] [Model info] [QTY]

gear 4-speed KLX,LMW 1

40/29

[Name] [Note] [Model info] [QTY]

gear 4-speed KKJ,LMX 1

40/29

[Name] [Model info] [QTY]

Input shaft LMY 1

[Name] [Model info] [QTY]

Input shaft KLX,LMW 1

[Name] [Model info] [QTY]

Input shaft KUG,KVB,KVC, 1

LMV,LMU,KQQ

[Name] [Model info] [QTY]

Input shaft KKJ,LMX 1

[Name] [Note] [QTY]

needle bearing - 42X48X26,8 1

5-speed

[Name] [Note] [Model info] [QTY]

change gear 5-speed KKJ,LMX 1

36/33

[Name] [Note] [Model info] [QTY]

change gear 5-speed KUG,KVB,LMV, 1

33/35 KQQ

[Name] [Note] [Model info] [QTY]

change gear 5-speed LMY 1

32/37

[Name] [Note] [Model info] [QTY]

change gear 5-speed KLX,LMW 1

36/33

[Name] [Note] [Model info] [QTY]

change gear 5-speed KVC,LMU 1

32/37

[Name] [Note] [QTY]

synchronizer ring 5-speed 1

[Name] [Note] [QTY]

Wave spring washer 5th/6th gear 1

[Name] [Note] [QTY]

synchronizing hub with locking collar 5th/6th gear 1

Replacements: 0A5311241K
