Side panel

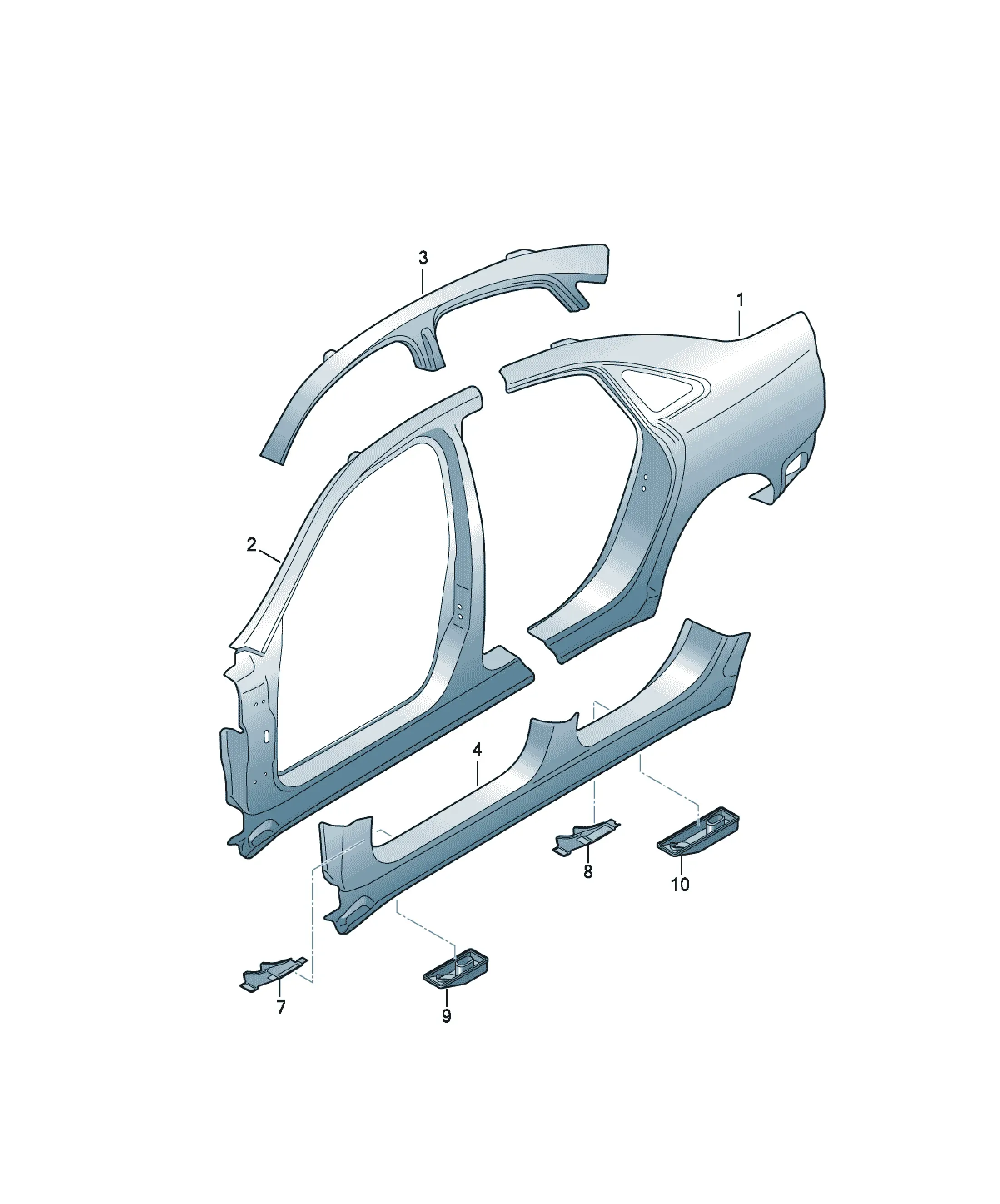

Side body panel

Assembly diagrams

4 diagrams

14 parts

4F5809837A Offers

[Name] [Note] [QTY]
Sectional part - side panel left 1
use if required: 4F5 809 649 B 1
Accompanying details: 4F5809649B
4F5809838A Offers

[Name] [Note] [QTY]
Sectional part - side panel right 1
use if required: 4F5 809 650 B 1
Accompanying details: 4F5809650B
4F0802847 Offers

[Name] [Note] [QTY]
socket - jack rear 2
4F5809840 Offers

[Name] [Note] [QTY]
Sectional part - pillar A/B with frame member right 1
4F5809839 Offers

[Name] [Note] [QTY]
Sectional part - pillar A/B with frame member left 1
4F5809834 Offers

[Name] [Note] [QTY]
Sectional part - side panel frame/roof edge right 1
4F5809833 Offers

[Name] [Note] [QTY]
Sectional part - side panel frame/roof edge left 1
4F5809847 Offers

[Name] [Note] [QTY]
Sectional part - side member left 1
4F5809848 Offers

[Name] [Note] [QTY]
Sectional part - side member right 1
4F0803475A Offers

[Name] [Note] [QTY]
Reinforcement for jack mount left front 1
4F0803476A Offers

[Name] [Note] [QTY]
Reinforcement for jack mount right front 1
4F0803477A Offers

[Name] [Note] [QTY]
Reinforcement for jack mount left rear 1
4F0803478A Offers

[Name] [Note] [QTY]
Reinforcement for jack mount right rear 1
4F0802845 Offers

[Name] [Note] [QTY]
socket - jack front 2
