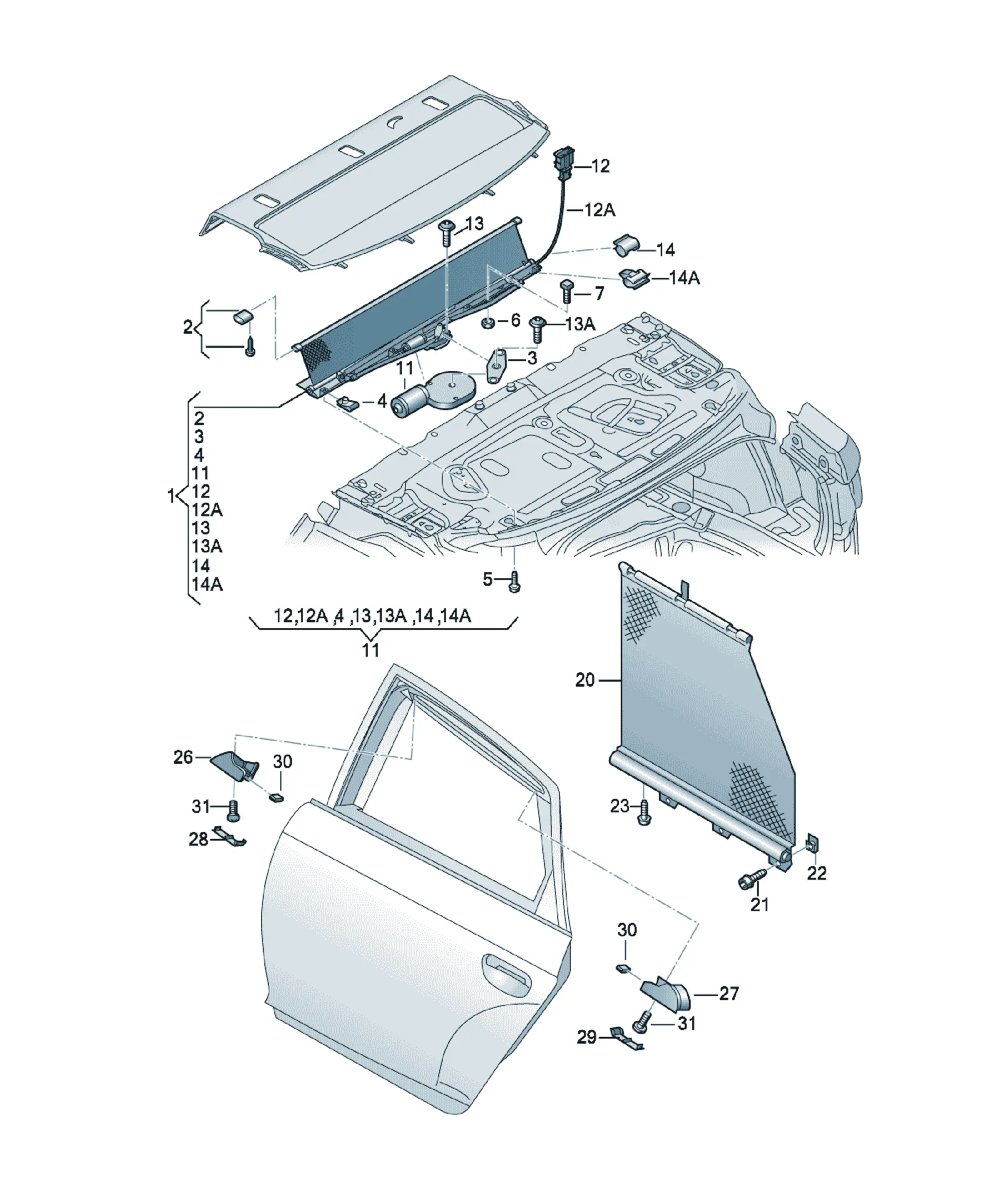

Luggage compartment roller blind

[Name] [Note] [Model info] [QTY]

Roller sun blind for rear window electric PR:3Y2,3Y5 1

[Name] [Note]

Satin black/soul -NK,QE,QL,QU,

QX,ZM,QQ

[Name] [Note]

Satin black/indigo -MF

[Name] [Note]

Satin black/amaretto -NM

[Name] [Note]

Satin black/torrone (beige) -NR

[Name] [Note]

Satin black/cream -NL

[Name] [Note]

Satin black/silver -ZQ

[Name] [Note]

Satin black/cardamom beige -MC

[Name] [Note]

light platinum (grey) -NQ

[Name] [Model info] [QTY]

roller blind motor PR:3Y2,3Y5 1

with:

Fasteners

repair set

roller blind motor 1

Wire set 1

Clip 3

holder for wiring harness 1

Hexagon socket flat head bolt 3

(BEF. MOTOR AN HALTER)

Hex socket countersunk bolt 1

Speed nut 3

[Name] [Note] [Model info] [QTY]

Flat connector housing with contact locking mechanism 2 pin PR:3Y2,3Y5 1

mating connector

1H0972702A Flat contact housing 2 pin 1

black

1J0971972 flat connector housing 2 pin 1

black

Possible single wire:

000979041E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' X

-40C/+125C

with cable crosssection: 0,5

Flat male connector with detent lug 1,5

000979041EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' X

-40C/+125C

with cable crosssection: 0,5

Flat male connector with detent lug 1,5

000979132E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

Flat male connector with detent lug 1,5

000979132EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+105C

Flat male connector with detent lug 1,5

000979254E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X

-40C/+125C

Flat male connector with detent lug 1,5

[Name] [Note] [Model info] [QTY]

Wire set PR:3Y2,3Y5 1

Included in position: 11

[Name] [Note] [QTY]

Hexagon socket flat head bolt M4X14 3

[Name] [Note] [Model info] [QTY]

Hex socket countersunk bolt PR:3Y2,3Y5 1

Included in position: 11

[Name] [Note] [Model info] [QTY]

Clip PR:3Y2,3Y5 3

Included in position: 11

[Name] [Note] [Model info] [QTY]

holder for wiring harness PR:3Y2,3Y5 1

Included in position: 11

[Name] [Note]

light platinum (grey) -NQ

repair set

End cap left 1

End cap right 1

countersunk self-tapping screw 2

[Name] [Note] [Model info] [QTY]

End cap left a. right PR:3Y2,3Y5 1

[Name] [Note]

amaretto brown -NM

repair set

End cap left 1

End cap right 1

countersunk self-tapping screw 2

[Name] [Note]

CREAM (creme beige) -NL

repair set

End cap left 1

End cap right 1

countersunk self-tapping screw 2

[Name] [Note]

Cardamom beige -MC

repair set

End cap left 1

End cap right 1

countersunk self-tapping screw 2

[Name] [Note]

Torrone (beige) -NR

repair set

End cap left 1

End cap right 1

countersunk self-tapping screw 2

[Name] [Note]

indigo -MF

repair set

End cap left 1

End cap right 1

countersunk self-tapping screw 2

[Name] [Note]

soul (black) -NK,QE,QL,QU,

QX,ZM,QQ

repair set

End cap left 1

End cap right 1

countersunk self-tapping screw 2

[Name] [Note]

pearl silver -ZQ

repair set

End cap left 1

End cap right 1

countersunk self-tapping screw 2

[Name] [Note] [Model info] [QTY]

Sunlight roller blind for door window left rear PR:3Y5 1

[Name] [Note] [Model info] [QTY]

Sunlight roller blind for door window right rear PR:3Y5 1

[Name] [Note] [QTY]

fillister hd. bolt M4X8 4

[Name] [Note] [QTY]

Speed nut M4X13,6X15 4

[Name] [Note] [QTY]

Hexagon socket flat head bolt 3,5X10 4

[Name] [Note] [Model info] [QTY]

Suspension lug front PR:3Y5 1

roller sunblind left rear

[Name]

Satin black

[Name] [Note] [Model info] [QTY]

Suspension lug front PR:3Y5 1

roller sunblind right rear

[Name]

Satin black

[Name]

Satin black

[Name]

Satin black

[Name] [Note] [Model info] [QTY]

Suspension lug rear PR:3Y5 1

roller sunblind left rear

[Name] [Note] [Model info] [QTY]

Suspension lug rear PR:3Y5 1

roller sunblind right rear

[Name] [Note] [Model info] [QTY]

Cover PR:3Y3,3Y5 2

Suspension lug front

roller sunblind left rear

right rear

[Name]

Satin black

[Name] [Note] [Model info] [QTY]

Cover PR:3Y3,3Y5 2

Suspension lug rear

roller sunblind left rear

right rear

[Name]

Satin black

[Name]

Drive wheel

No replacement part

[Name] [Note]

adjustment element

Discont. / replacement item: 26/27

[Name] [Note] [QTY]

oval head panel screw 3,5X19 4

[Name] [Note] [Model info] [QTY]

Speed nut M6X23,8X16 PR:3Y2,3Y5 3

[Name] [Note] [Model info] [QTY]

Hexagon socket oval head bolt (combi) M6X16 PR:3Y2,3Y5 3

[Name] [Note] [QTY]

Self-locking collar nut M6 8

[Name] [QTY]

Fasteners 1

repair set

Threaded stud M6 8

Locknut M6 8
