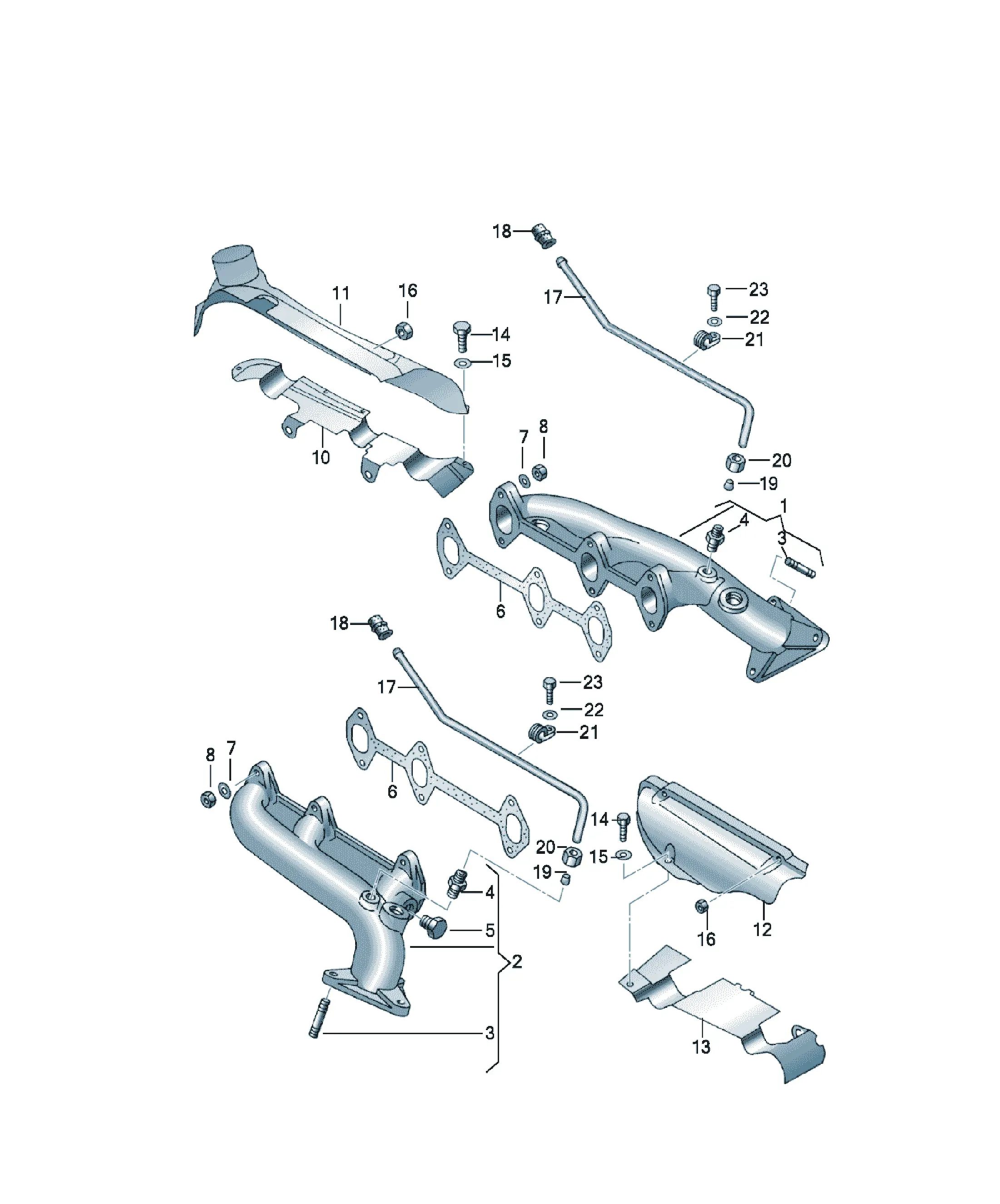

Exhaust manifold

Exhaust manifold

Assembly diagrams

6 diagrams

10 parts

06C253032J Offers

[Name] [Note] [QTY]
Exhaust manifolds cylinders 1-3 1
right
06C253036B Offers

[Name] [Note] [QTY]
Cover plate right upper 1
06C253037B Offers

[Name] [Note] [QTY]
Cover plate left upper 1
06C253009B Offers

[Name] [Note] [QTY]
Cover plate left a. right 2
lower
N10005207 Offers

[Name] [Note] [QTY]
hexagon head bolt (combi) M8X18 2
N10100505 Offers

[Name] [Note] [QTY]
hexagon head bolt (combi) M6X10-S1-N 4
06C253031J Offers

[Name] [Note] [QTY]
Exhaust manifolds cylinders 4-6 1
left
N0445145 Offers

[Name] [Note] [QTY]
Threaded pin M8X25 6
078253039G Offers

[Name] [QTY]
Seal 2
WHT003518 Offers

[Name] [Note] [QTY]
hexagon socket head pipe nut M8 18
