Cooling system pump and components

Additional coolant radiator

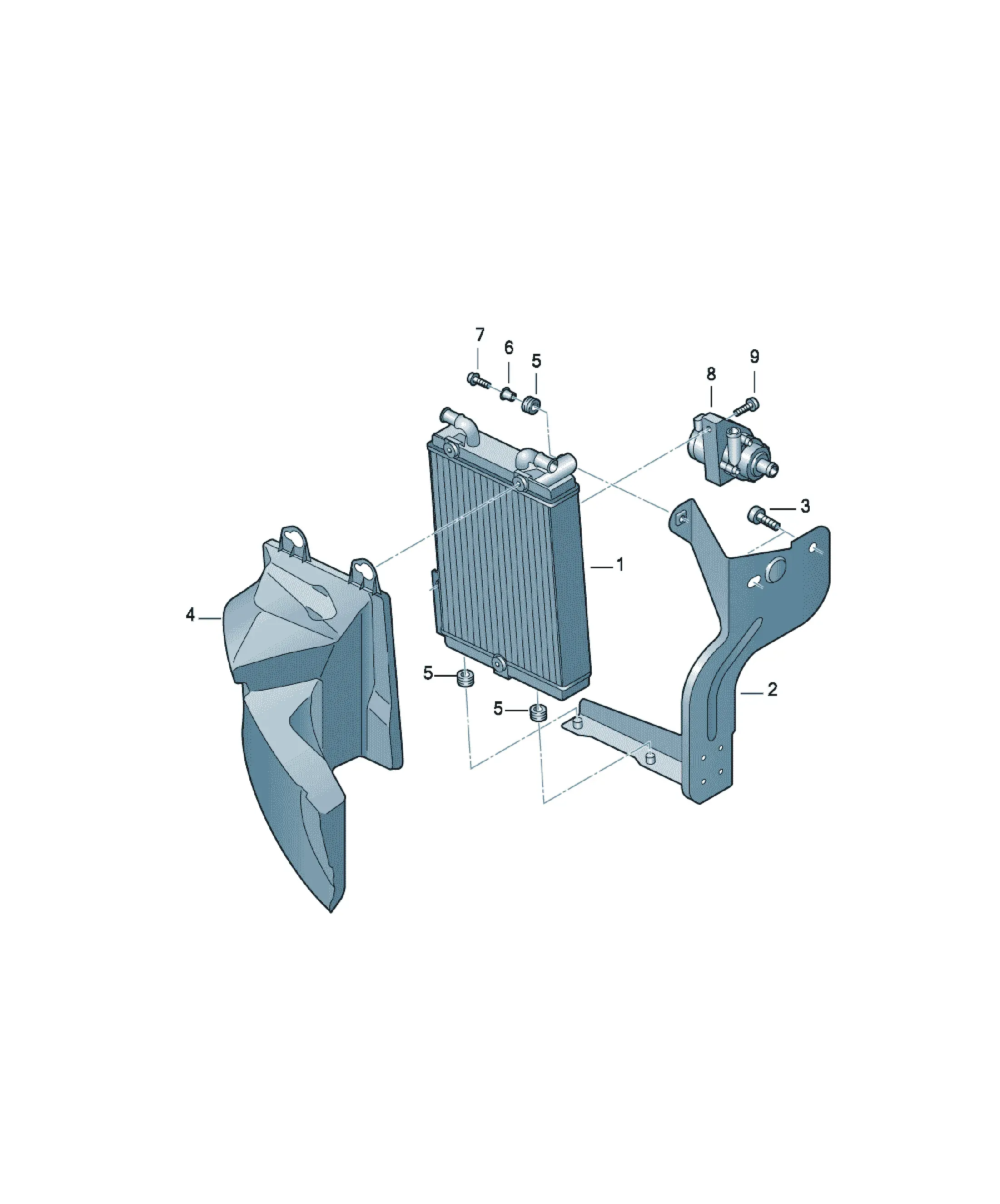

Assembly diagrams

10 diagrams

12 parts

hex.hd. thread cutting bolt
N10296202 Offers

[Name] [Note] [QTY]
hex.hd. thread cutting bolt M6X22 1
Шестигранная гайка с буртиком, самоконтрящаяся
N90183802 Offers

[Name] [Note] [QTY]
Hexagon collar nut self-locking M8 2
4F0121212H Offers

[Name] [QTY]
Additional cooler for coolant 1
4F0317827K Offers

[Name] [QTY]
Bracket for additional coolant radiator 1
N10524202 Offers

[Name] [Note] [QTY]
Hex socket head locating bolt M10X12 2
4F0317334 Offers

[Name] [Model info] [QTY]
Air guide PR:2K1 1
4F0317334B Offers

[Name] [Model info] [QTY]
Air guide PR:2K7 1
4D0317867A Offers

[Name] [Note] [QTY]
Rubber bush upper/lower 3
441903127 Offers

[Name] [Note] [QTY]
Mounting upper/lower 3
Replacements: 4E0903127
N90969702 Offers

[Name] [Note] [QTY]
Socket head bolt with inner multipoint head (Kombi) M8X35 1
upper
07C121599 Offers

[Name] [Note] [QTY]
Additional coolant pump M6X20-CH-S11 1
N10124408 Offers

[Name] [Note] [QTY]
Hexagon socket head bolt (combi) M6X20 1
