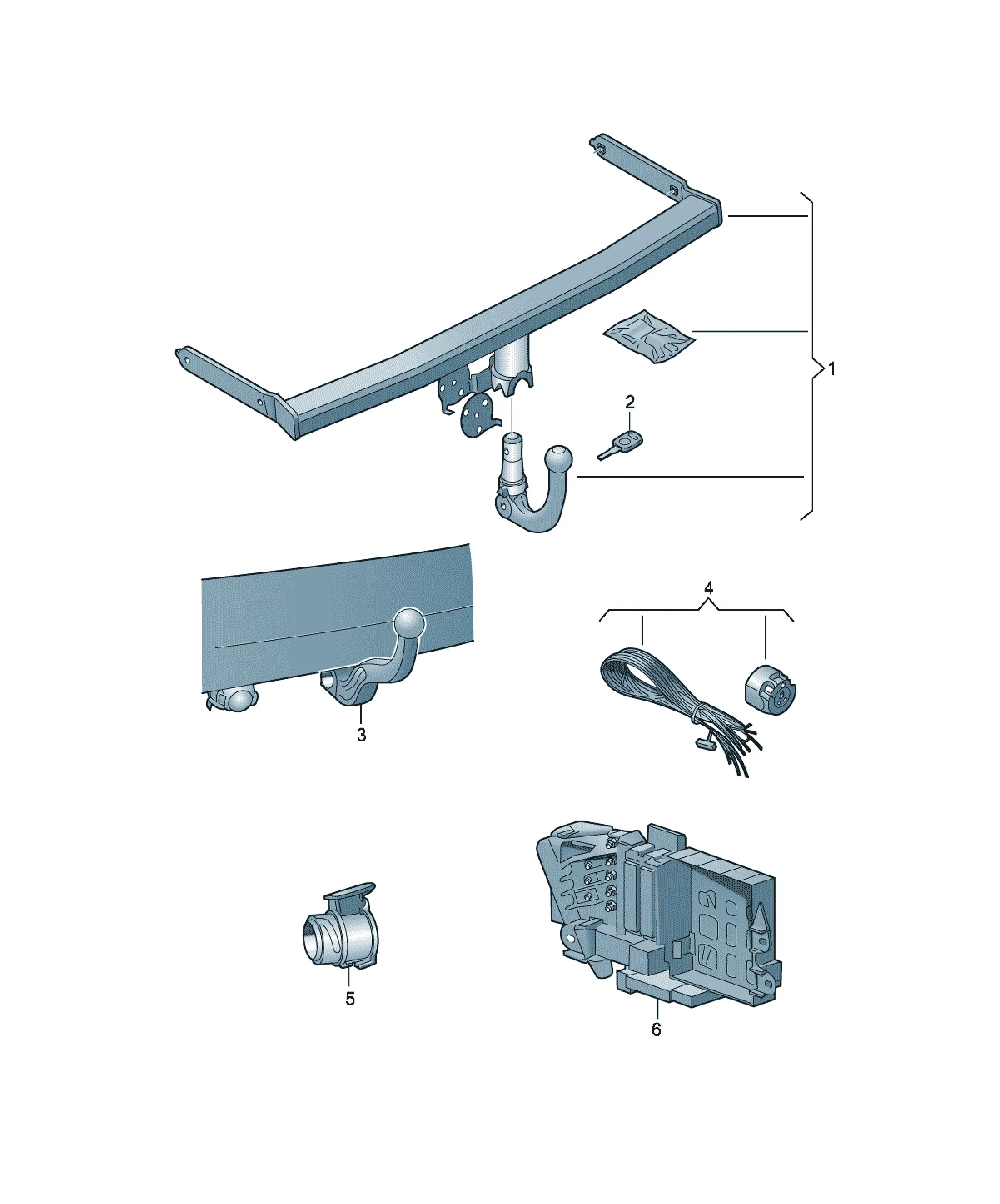

Trailer tow hitch

[Name] [QTY]

1 set attachment parts for tow hitch 1

For vehicles with removable trailer hitch (ball head)

[Name] [QTY]

Towbar, removable 1

for models with air suspension

[Name] [QTY]

Towbar, removable 1

Items supplied

4B0092201 Bungs 1

4B0092770B ball head 1

[Name] [Note] [QTY]

Towbar, removable 1

use if required: 4F9 055 204 G

Accompanying details: 4F9055204G

[Name] [Note] [QTY]

Towbar, removable 1

use if required: 4F9 055 204 G

D - 29.05.2006>> - 25.05.2008

Accompanying details: 4F9055204G

[Name] [QTY]

Towbar, removable 1

for models with air suspension

[Name] [Note]

key 2WXXX

Can be obtained from Westfalia Tel.: +49 (0) 5242 907 437 E-mail: [email protected]

[Name] [Note] [QTY]

Tow hitch, swivel-type 1

and

Installation kit - electrical parts for trailer operation 13 pin

also to be used for:

LED brake, turn signal, tail and reversing light cluster

Items supplied

4F0800491D Tow hitch, swivel-type 1

4F0813961A release lever 1

4F0907383D Control unit for trailer detection 1

4F5813685A Bracket 1

[Name] [Note] [QTY]

Tow hitch, swivel-type 1

for models with air suspension

and

Installation kit - electrical parts for trailer operation 13 pin

also to be used for:

LED brake, turn signal, tail and reversing light cluster

use if required: 4F0 055 307

or

4F0 055 307 A

Accompanying details: 4F0055307; 4F0055307A

Items supplied

4F0800491D Tow hitch, swivel-type 1

4F0910383D Control unit with software for trailer detection 1

4F5813685A Bracket 1

4F5813961A release lever 1

[Name] [Note] [QTY]

Tow hitch, swivel-type 1

and

Installation kit - electrical parts for trailer operation 13 pin

also to be used for:

LED brake, turn signal, tail and reversing light cluster

Items supplied

4F0800491C Tow hitch, swivel-type 1

4F0910383D Control unit with software for trailer detection 1

4F5813961A release lever 1

4F9813685A Bracket 1

[Name] [Note] [QTY]

Tow hitch, swivel-type 1

for models with air suspension

and

Installation kit - electrical parts for trailer operation 13 pin

also to be used for:

LED brake, turn signal, tail and reversing light cluster

use if required: 4F0 055 307

or

4F0 055 307 A

Accompanying details: 4F0055307; 4F0055307A

Items supplied

4F0800491D Tow hitch, swivel-type 1

4F0813961A release lever 1

4F0907383D Control unit for trailer detection 1

4F9813685A Bracket 1

[Name] [Note] [QTY]

Installation kit - electrical parts for trailer operation 13 pin 1

also to be used for:

LED brake, turn signal, tail and reversing light cluster

Items supplied

3D0945505 housing for trailer towing socket 1

4F0907383D Control unit for trailer detection 1

8A0971978 rd. connector sleeve housing 1

8A0972980A Annular contact w/ solder pin 1

[Name] [Note] [QTY]

Installation kit - electrical parts for trailer operation 13 pin 1

also to be used for:

LED brake, turn signal, tail and reversing light cluster

Items supplied

3D0945505 housing for trailer towing socket 1

4F0907383D Control unit for trailer detection 1

8A0971978 rd. connector sleeve housing 1

8A0972980A Annular contact w/ solder pin 1

[Name] [Note] [QTY]

Adapter 13 to 7-pin 1

socket for trailer towing

[Name] [QTY]

fuse holder

F >> 4F-6-250 000 1
