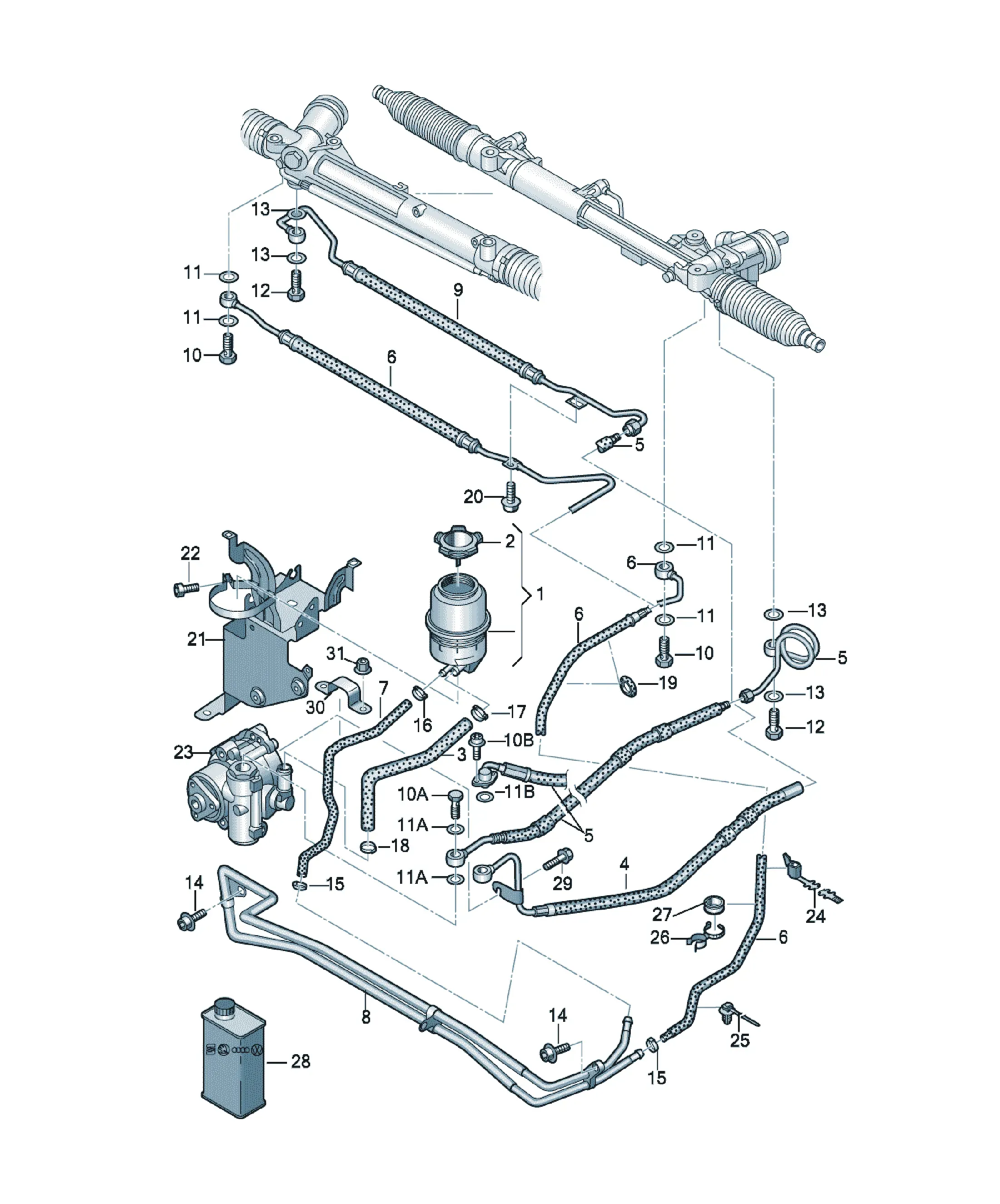

Power steering hose system

[Name] [QTY]

Bracket

(steering gear > return hose)

F 4F-5-075 000>> 1

[Name] [QTY]

Hexagon collar nut

F 4F-5-075 000>> 2

[Name] [QTY]

oil container 1

[Name] [Note] [QTY]

Banjo bolt M16X28 1

[Name] [Note] [QTY]

Banjo bolt M16X28 1

[Name] [Note] [QTY]

seal ring 16X22 2

[Name] [Note] [QTY]

seal ring 16X22 2

[Name] [QTY]

Non-return valve 1

[Name] [Note] [QTY]

seal ring 14X20 1

[Name] [Note] [QTY]

Socket head bolt with hexagon socket head (combination) M6X35 1

left

[Name] [Note] [QTY]

Socket head bolt with hexagon socket head (combination) M6X35 2

[Name] [Note] [QTY]

self-tapping screw 4X14 1

right

[Name] [Note] [QTY]

clamp 17,5X7X0,6 2

[Name] [Note] [QTY]

Spring band clamp 16X12 1

[Name] [Note] [QTY]

Spring band clamp 23X12 1

[Name] [Note] [QTY]

clamp 23,5X7X0,6 1

[Name] [QTY]

guide ring 2

[Name] [QTY]

Cover for oil reservoir 1

[Name] [Note] [QTY]

Socket head bolt with hexagon socket head (combination) M8X20

F >> 4F-7-035 000 rhd 1

Replacements: N 10225402

[Name] [Note]

Bracket

see illustration: 614-010

[Name] [Note] [QTY]

Socket head bolt with inner multipoint head M6X30 1

[Name] [Note]

Vane pump

see illustration: 145-075

[Name] [Note]

Vane pump

see illustration: 145-070

[Name] [Note] [QTY]

Cable tie with holder for weld pin: 10X187 1

5MM

[Name] [Note] [QTY]

Cable ties with bracket 4,6X200 2

[Name] [Note] [QTY]

double cable tie 7X213/140MM 1

[Name]

No replacement part

[Name] [Note] [QTY]

guide bush 4,5X200 1

[Name]

No replacement part

[Name] [Note] [QTY]

Hydraulic fluid 60ltr. 1

[Name] [Note] [QTY]

Hydraulic fluid 60ltr. X

[Name] [Note] [QTY]

Hydraulic fluid 1.0 Ltr. 1

[Name] [Note] [QTY]

Hydraulic fluid 30ltr. 1

Replacements: G 004000M2; G 004000M8

[Name] [Note] [QTY]

Hydraulic fluid 30ltr. X

Replacements: G 004000M2; G 004000M8

[Name] [Note] [QTY]

Hydraulic fluid 1.0 Ltr. X

[Name]

No replacement part

[Name] [Note] [QTY]

hexagon head bolt (combi) M8X22 1

[Name] [QTY]

Intake hose 1

[Name] [QTY]

Intake hose 1

[Name] [QTY]

Bracket

(steering gear > return hose)

F 4F-5-075 000>> 1

[Name] [QTY]

Hexagon collar nut

F 4F-5-075 000>> 2

[Name] [Note] [Model info] [QTY]

Expansion hose lhd Petr. engine 1

[Name] [Note] [Model info] [QTY]

Expansion hose lhd diesel eng. 1

[Name] [Note] [Model info] [QTY]

Expansion hose rhd diesel eng. 1

[Name] [Note] [Model info] [QTY]

Expansion hose rhd Petr. engine 1

[Name]

No replacement part

[Name] [Note] [QTY]

Expansion hose lhd 1

Replacements: 4F1422893T

[Name]

No replacement part

[Name] [Note] [QTY]

Expansion hose rhd 1

[Name] [Note] [QTY]

Return hose lhd 1

[Name] [Note] [QTY]

Return hose rhd 1

Replacements: 4F2422891T

[Name] [QTY]

Return hose 1

[Name] [QTY]

Return hose 1

[Name] [QTY]

Cooling pipe 1

[Name] [QTY]

Cooling pipe 1

[Name] [Note] [QTY]

Expansion hose rhd 1
