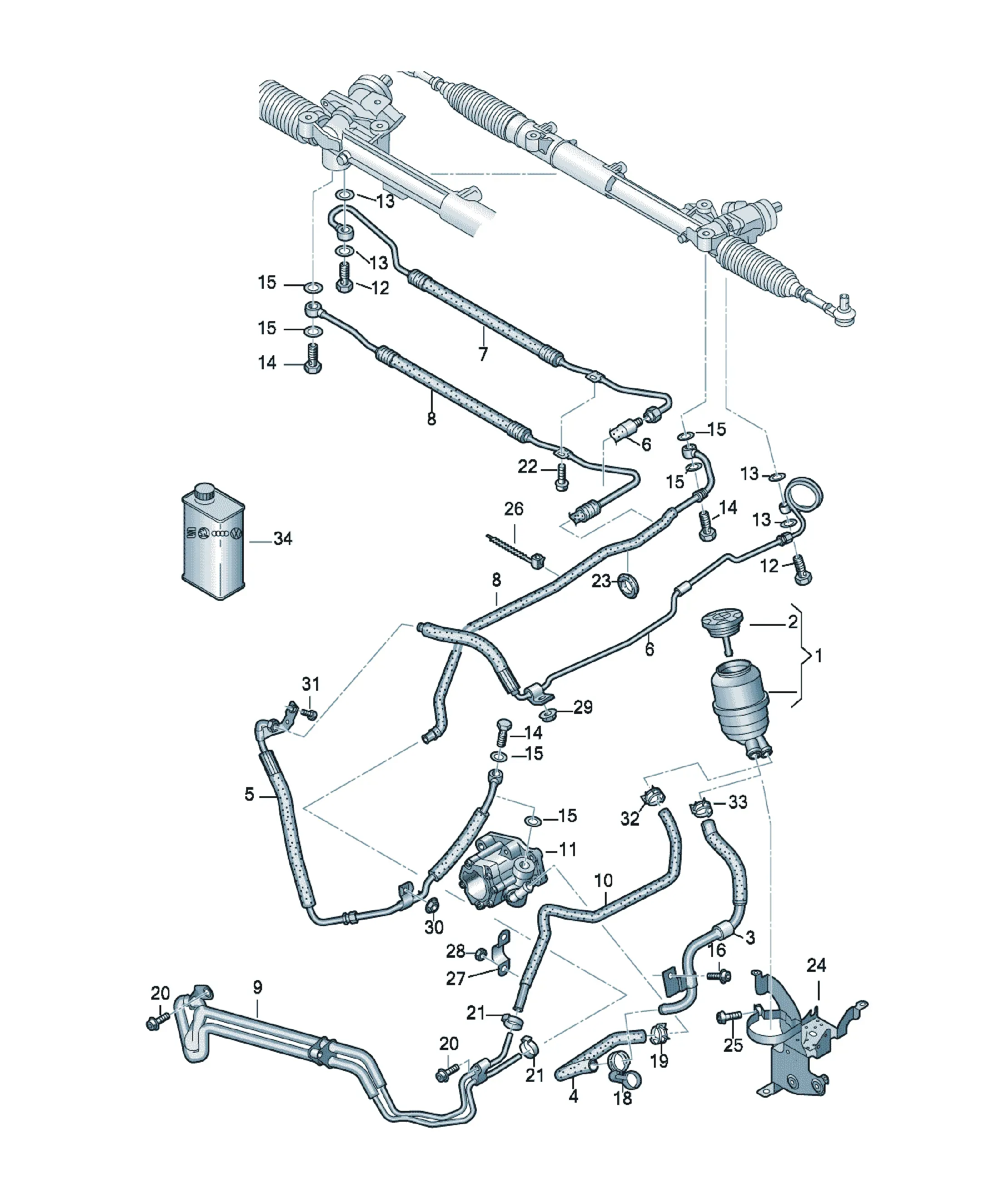

Power steering hose system

[Name] [QTY]

oil container 1

[Name] [QTY]

Return hose 1

(cooling pipe > oil reservoir)

[Name] [Note]

see illustration: 145-095

[Name] [QTY]

Non-return valve 1

[Name] [Note] [QTY]

seal ring A14X20 1

[Name] [Note] [QTY]

Banjo bolt M16X28 1

Hexagon collared bolt with hexagon socket head (duo)

[Name] [Note] [QTY]

seal ring A16X22 1

[Name] [Note] [QTY]

hexagon head bolt (combi) M8X20 1

[Name] [QTY]

Clamp 1

[Name] [Note] [QTY]

clamp 23,5X7X0,6 1

[Name] [QTY]

Cover for oil reservoir 1

[Name] [Note] [QTY]

Socket head bolt with hexagon socket head (combination) M6X35 1

[Name] [Note] [QTY]

clamp 17,5X7X0,6 2

[Name] [Note] [QTY]

Hexagon socket head bolt (combi) M8X20 1

[Name] [QTY]

guide ring 2

[Name] [Note]

see illustration: 614-010

[Name] [Note] [QTY]

Socket head bolt with inner multipoint head M6X30 1

[Name] [Note] [QTY]

Cable tie with holder for weld pin: 10X187 X

5MM

[Name] [QTY]

Bracket 1

Return hose

[Name] [Note] [QTY]

speed nut 5 2

Replacements: N 90708803

[Name] [Note] [QTY]

hex. nut with washer M6 1

[Name] [QTY]

Intake hose 1

[Name] [Note] [QTY]

Hexagon collar nut M6 1

Replacements: N 01508210

[Name] [Note] [QTY]

Oval socket head bolt with hex drive M6X18 1

[Name] [Note] [QTY]

Spring band clamp 16X12 1

[Name] [Note] [QTY]

Spring band clamp 23X12 1

[Name] [Note] [QTY]

Hydraulic fluid 60ltr. 1

Service fluid

[Name] [Note] [QTY]

Hydraulic fluid 1.0 Ltr. 1

[Name] [Note] [QTY]

Hydraulic fluid 30ltr. 1

Service fluid

Replacements: G 004000M2; G 004000M8

[Name] [QTY]

Intake hose 1

[Name] [QTY]

Expansion hose 1

(flex. hose > vane type pump)

[Name] [Note] [QTY]

Expansion hose lhd 1

[Name] [Note] [QTY]

Expansion hose rhd 1

[Name] [Note] [QTY]

Expansion hose rhd 1

[Name] [Note] [QTY]

Return hose lhd 1

Steering gear

Cooling pipe

Replacements: 4F1422891M

[Name] [Note] [QTY]

Return hose rhd 1

Steering gear

Cooling pipe

Replacements: 4F2422891T

[Name] [QTY]

Cooling pipe 1
