Power steering system

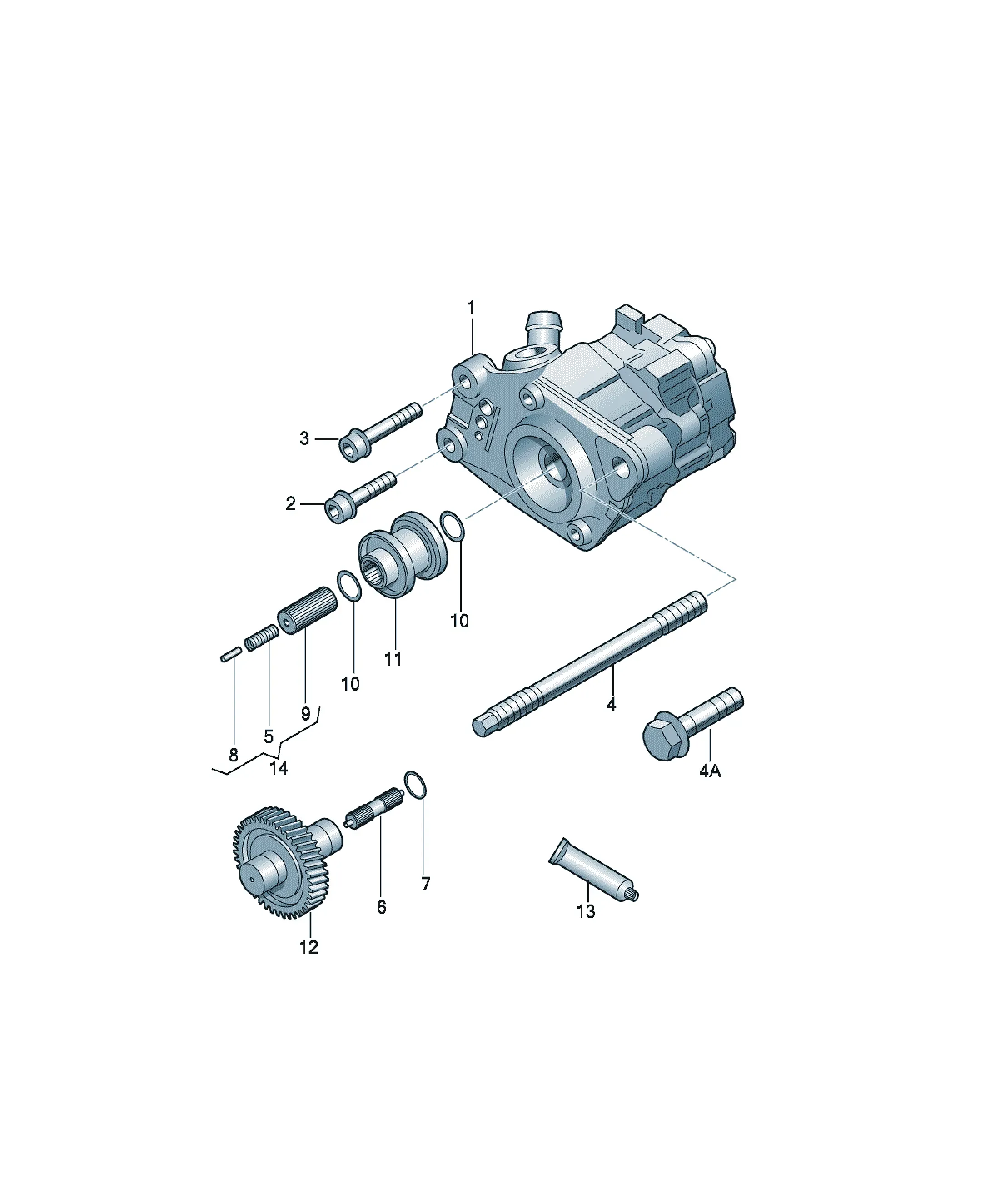

Power steering pump

Assembly diagrams

13 diagrams

11 parts

4F0145155B Offers

[Name] [QTY]
Vane pump 1
079145119 Offers

[Name] [Note] [QTY]
O-ring 16X4-N 2
079145258A Offers

[Name] [QTY]
Sleeve 1
G000100 Offers

[Name] [Note] [QTY]
Grease for clutch plate splines 80G 1
4E0198156B Offers

[Name] [QTY]
Repair set for vane pump 1
repair set
079145225C Input shaft 1
079145750 Intermediate piece 1
079145799 Pressure spring 1
N10666401 Offers

[Name] [Note] [QTY]
Socket head bolt with inner multipoint head M8X75 1
N10408101 Offers

[Name] [Note] [QTY]
Socket head bolt with inner multipoint head M8X85X41 1
N10580201 Offers

[Name] [Note] [QTY]
hexagon head bolt (combi) M12X170X49 1
079145799 Offers

[Name] [QTY]
Pressure spring 1
079145750 Offers

[Name] [QTY]
Intermediate piece 1
079145225C Offers

[Name] [QTY]
Input shaft 1
