Power steering system

Power steering pump

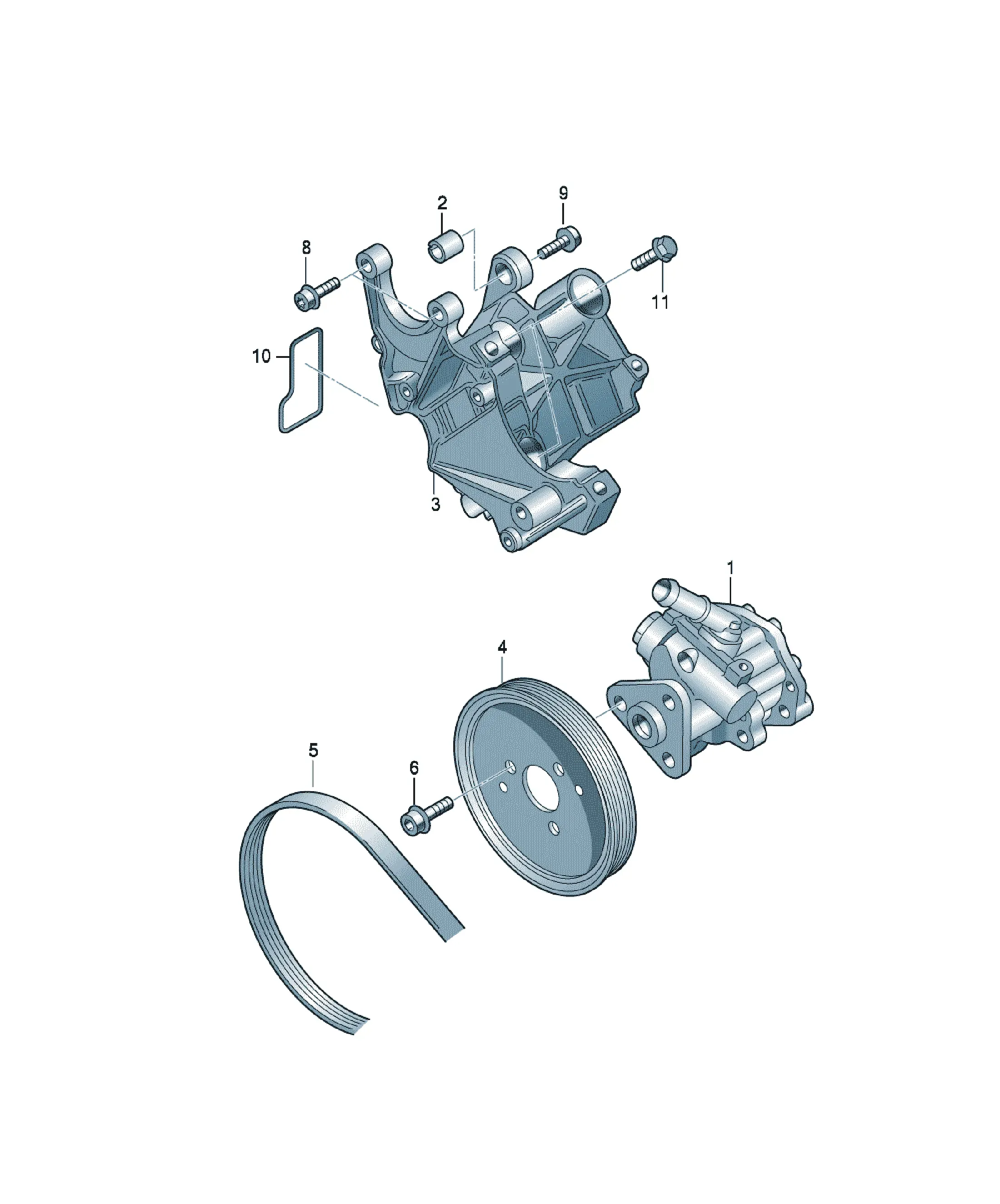

Assembly diagrams

13 diagrams

11 parts

4F0145155A Offers

[Name] [QTY]
Vane pump 1
059145773 Offers

[Name] [QTY]
Seal 1
N10286205 Offers

[Name] [Note] [QTY]
Hex collared bolt M10X60 4
068903147H Offers

[Name] [Note] [QTY]
bush 8,4X18X19,5 1
059145167AE Offers

[Name] [Note] [QTY]
Retainer for vane pump 1
to remove: 059 103 926 M
059145167AE Offers

[Name] [Note] [QTY]
Retainer for vane pump 1
to remove: 059 103 926 S
059145255C Offers

[Name] [QTY]
pulley 1
Replacements: 059145255A
[Name] [Note]
Poly-V-belt
see illustration: 903-040
N91052201 Offers

[Name] [Note] [QTY]
Socket head collared bolt with inner multipoint head M8X12 3
N0195315 Offers

[Name] [Note] [QTY]
Hex collared bolt M8X40 2
N0195315 Offers

[Name] [Note] [QTY]
Hex collared bolt M8X40 2
