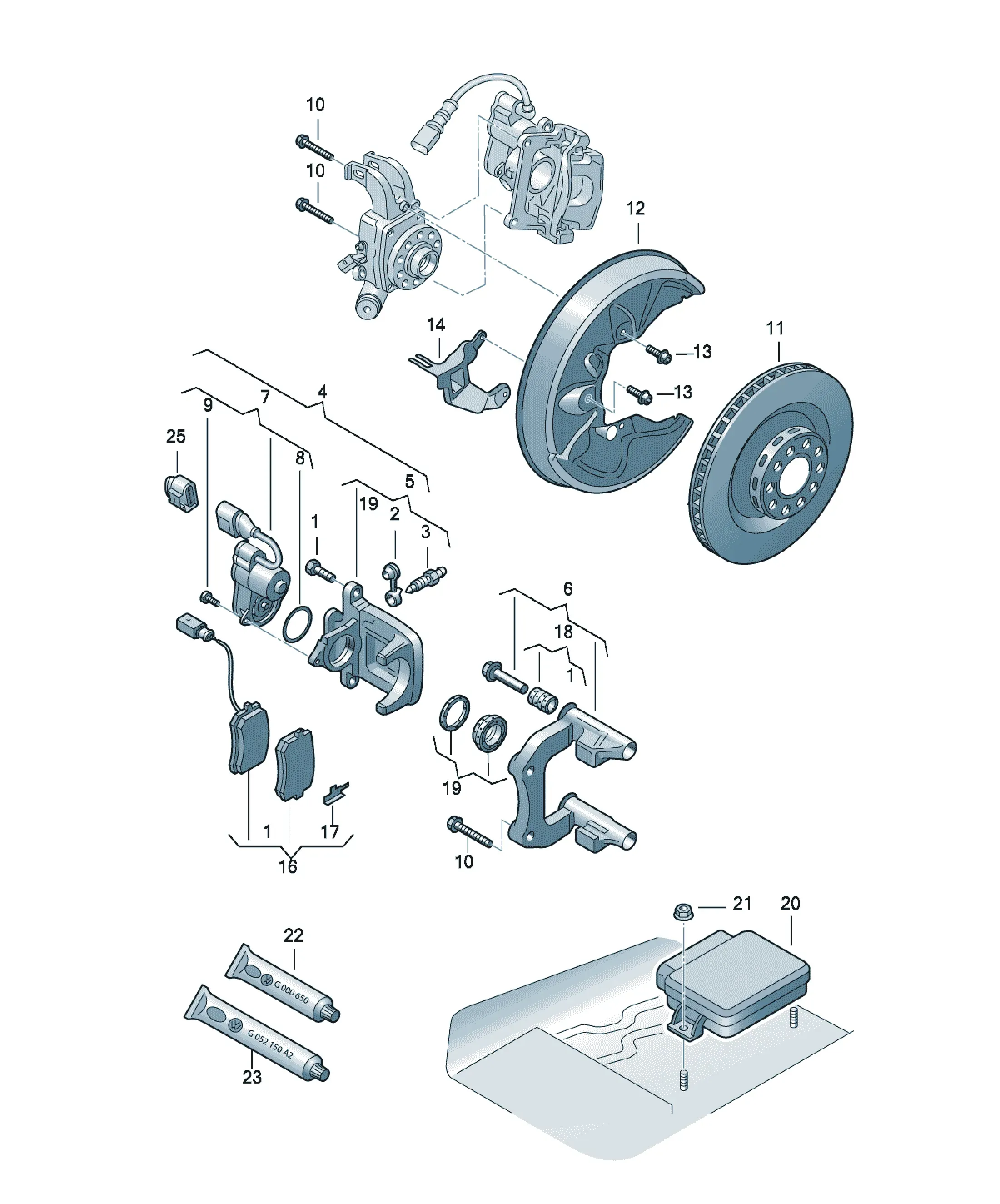

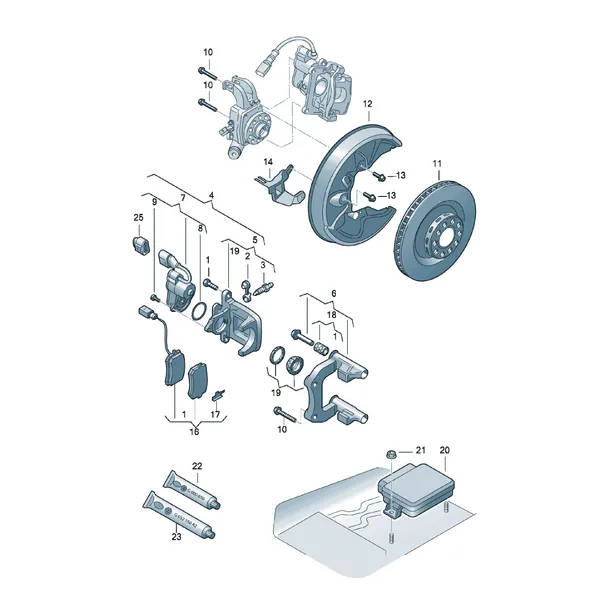

Brake caliper

[Name] [Note] [QTY]

Hex socket countersunk bolt M6X16 2

[Name] [Note] [Model info] [QTY]

1 set brake discs with brake pads rear PR:1KD 1

D - 31.01.2009>>

repair set

4F0615601E Brake disc 302X12MM 5/112 2

4F0698451Q 1 set of brake pads for disk brake 302X12MM 1

rear

N 91126801 ribbed bolt M12X1,5X62 4

N 10648301 Hex socket countersunk bolt M6X16 2

[Name] [QTY]

1 set brake discs with brake pads 1

D >> - 31.01.2009

Replacements: 4F0698601

repair set

4F0615601E Brake disc 302X12MM 5/112 2

4F0698451D 1 set of brake pads for disk brake 302X12MM 1

rear

N 91126801 ribbed bolt M12X1,5X62 4

N 10648301 Hex socket countersunk bolt M6X16 2

[Name] [Note] [QTY]

bolt, hex. hd. with shoulder, self-locking M8X22 4

[Name] [Note] [QTY]

ribbed bolt M12X1,5X62 4

[Name] [Note] [QTY]

Brake disc (vented) 330X22MM 5/112 2

[Name] [Note] [QTY]

Brake disc 302X12MM 5/112 2

[Name] [Note] [Model info] [QTY]

Brake disc (vented) 330X22MM 5/112 S6 2

[Name] [Note] [QTY]

Cover plate for brake disc left 1

[Name] [Note] [QTY]

Cover plate for brake disc right 1

[Name] [Note] [QTY]

Oval hexagon socket head bolt M6X12 6

[Name] [Note] [QTY]

1 set of brake pads for disk brake 302X12MM 1

Replacements: 4F0698451Q; 1K0615231B; N 01024124

repair set

4F0615415H disc brake pad 4

1K0615231B Intermediate plate 4

bolt, hex. hd. with shoulder, self-locking M8X22-MK 4

[Name] [Note] [QTY]

1 set of brake pads for disk brake 330X22MM 1

Replacements: 4F0698451L; 3D0615231; N 01024124

repair set

4F0615415C disc brake pad 4

3D0615231 retaining spring 4

bolt, hex. hd. with shoulder, self-locking M8X22-MK 4

[Name] [QTY]

Intermediate plate

F >> 4F-7-200 000 4

Replacements: 1K0615231B

[Name] [QTY]

retaining spring 4

[Name] [QTY]

1 set protective sleeves for guide pins 2

Replacements: 3AA698470; G 055150A1

repair set

Protective sleeve 2

bolt, hex. hd. with shoulder, self-locking 2

[Name] [QTY]

1 set protective sleeves for guide pins 2

Replacements: 1K0698470A; G 055150A1

repair set

Protective sleeve 2

WHT003250 bolt, hex. hd. with shoulder, self-locking M8X22-MK 2

grease 5G 1

[Name] [QTY]

Set of gaskets for brake caliper housing 1

Replacements: 3D0698671A; G 055563A1

repair set

seal ring 2

Protective cap 2

assembly lubricant 1

fitting instructions 1

[Name] [QTY]

Set of gaskets for brake caliper housing 1

Replacements: 5K0698671B; G 055563A1

repair set

seal ring 2

Protective cap 2

assembly lubricant 30ML 1

[Name] [QTY]

dust cap 2

[Name] [QTY]

Control unit with software for electromechanical parking brake -EPB- 1

Replacements: 4F0910801D

mating connector

3C0973763A flat contact housing with cap 30 pin 1

slide valve right

[Name] [Note] [QTY]

Hexagon collar nut M6 2

Replacements: N 01508210

[Name] [Note] [QTY]

Solid lubricant paste 100G X

[Name] [Note] [QTY]

Lithium lubricating grease 180G X

[Name] [Note]

see illustration, item: 927-000,17

[Name] [Note] [QTY]

Breather valve M10X1 2

[Name] [Note] [QTY]

Brake caliper housing with servomotor

F >> 4F-7-032 500* right 1

[Name] [Note] [Model info] [QTY]

Brake caliper housing with servomotor

F >> 4F-7-032 500* left S6 1

black

[Name] [Note] [QTY]

Brake caliper housing with servomotor

F >> 4F-7-032 500* left 1

[Name] [Note] [Model info] [QTY]

Brake caliper housing with servomotor

F >> 4F-7-032 500* right S6 1

black

[Name] [Note] [QTY]

Brake caliper housing with servomotor

F >> 4F-7-032 500* right 1

[Name] [Note] [QTY]

Brake caliper housing with servomotor

F >> 4F-7-032 500* left 1

[Name]

No replacement part

[Name] [Note] [QTY]

brake carrier with pad retaining pin

F >> 4F-7-200 000 left 1

Replacements: 4F0615425F

[Name] [Note] [Model info] [QTY]

brake carrier with pad retaining pin

F >> 4F-7-200 000 right S6 1

black

Replacements: 4F0615426E

[Name] [Note] [QTY]

brake carrier with pad retaining pin right 1

[Name] [Note] [QTY]

brake carrier with pad retaining pin

F >> 4F-7-200 000 right 1

Replacements: 4F0615426F

[Name] [Note] [QTY]

brake carrier with pad retaining pin left 1

[Name] [Note] [Model info] [QTY]

brake carrier with pad retaining pin

F >> 4F-7-200 000 left S6 1

black

Replacements: 4F0615425E

[Name] [QTY]

Servomotor for brake calliper housing with assembly parts

F >> 4F-7-032 500* 2

repair set

Servomotor 1

4E0615137 O-ring 1

Socket head bolt with inner multipoint head 2

[Name] [QTY]

O-ring 2

[Name] [Note] [QTY]

Socket head bolt with hexagon socket head M6X12 4
