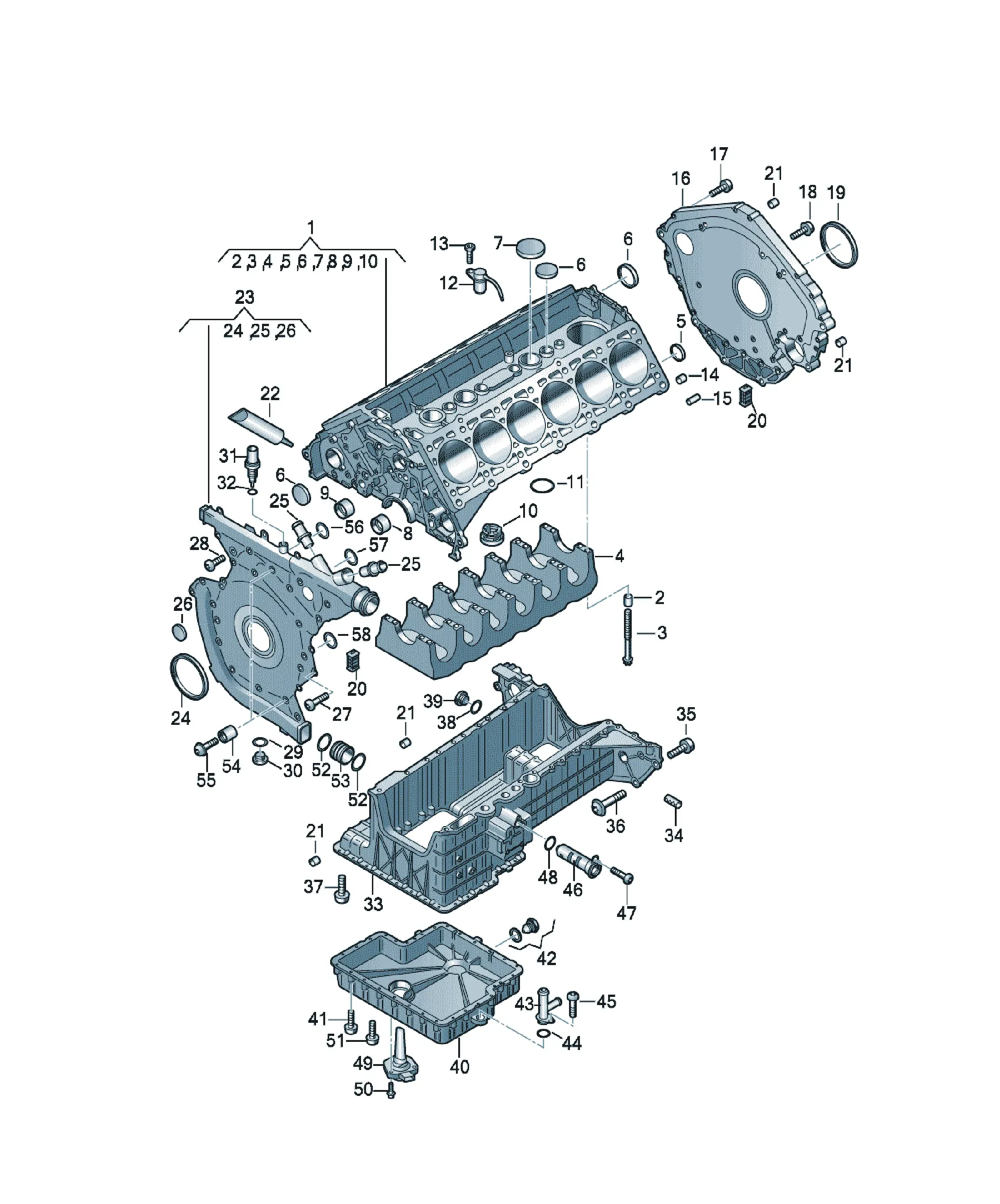

Блок-картер

Oil pan

Assembly diagrams

9 diagrams

Parts

62 parts

Уплотнительное кольцо
WHT001315A Offers

[Name] [Note] [QTY]
O-ring 28X2,5 3
O-ring
N91008501 Offers

[Name] [Note] [QTY]
O-ring 35X3 1
Уплотнительное кольцо
N90275302 Offers

[Name] [Note] [QTY]
O-ring 32X3 2
Protective cap
05A903343A Offers

[Name] [QTY]
Protective cap 1
05A103011C Offers

[Name] [QTY]
Crankcase housing 1
[Name]
Valve
No replacement part
WHT001315A Offers

[Name] [Note] [QTY]
O-ring 28X2,5 3
05A103158 Offers

[Name] [QTY]
jet 12
N91054701 Offers

[Name] [Note] [QTY]
Hex socket head locating bolt M6X6X12 12
022103139B Offers

[Name] [Note] [QTY]
dowel sleeve 16X13,5 2
N0132102 Offers

[Name] [Note] [QTY]
Cylinder pin 6X16 2
05A103171C Offers

[Name] [Note] [QTY]
Sealing flange rear 1
N10156206 Offers

[Name] [Note] [QTY]
Oval hexagon socket head bolt M6X30 23
N91026602 Offers

[Name] [Note] [QTY]
Oval head locating bolt with multi-point socket head M8X35 5
05A103051 Offers

[Name] [QTY]
Shaft oil seal 1
057103139 Offers

[Name] [QTY]
dowel sleeve 2
057103147A Offers

[Name] [QTY]
Seal 4
022103139B Offers

[Name] [Note] [QTY]
dowel sleeve 16X13,5 2
D176501A1 Offers

[Name] [Note] [QTY]
Silicon sealant 50ML X
adhesives and sealing compound
05A103151D Offers

[Name] [Note] [QTY]
Sealing flange front 1
079103051D Offers

[Name] [QTY]
Shaft oil seal 1
05A103230A Offers

[Name] [QTY]
Connector union 2
N01191410 Offers

[Name] [Note] [QTY]
End cap 24 1
N91071701 Offers

[Name] [Note] [QTY]
Hexagon socket flat head bolt M6X25 9
N10405702 Offers

[Name] [Note] [QTY]
Hexagon socket head bolt M6X45 1
N0138115 Offers

[Name] [Note] [QTY]
seal ring 10X13,5 1
059103039H Offers

[Name] [Note] [QTY]
Hexagon head bolt M11X112 28
N91119401 Offers

[Name] [Note] [QTY]
sealing plug M10X1X10 1
[Name] [Note]
Temperature sensor
see illustration: 919-080
[Name] [Note]
O-ring
see illustration: 919-080
05A103603D Offers

[Name] [QTY]
Engine oil sump upper part 1
055105277 Offers

[Name] [Note] [QTY]
spring pin 6,2X22 2
N90853802 Offers

[Name] [Note] [QTY]
Socket head bolt with inner multipoint head M7X20 1
N91009402 Offers

[Name] [Note] [QTY]
Socket head bolt with inner multipoint head M7X105X39 12
N90853903 Offers

[Name] [Note] [QTY]
Socket head bolt with inner multipoint head M7X50 15
N0138165 Offers

[Name] [Note] [QTY]
seal ring 18X24 1
N0160293 Offers

[Name] [Note] [QTY]
sealing plug M18X1,50 1
[Name]
Bearing cover
No replacement part
05A103601B Offers

[Name] [QTY]
Engine oil sump 1
N10582103 Offers

[Name] [Note] [QTY]
oval head countersunk bolt with multi-point socket head M6X40 27
N90813202 Offers

[Name] [Note] [QTY]
Seal bolt with sealing ring M14X1,5X22 1
05A103701A Offers

[Name] [QTY]
Pipe union 2
035115427 Offers

[Name] [Note] [QTY]
O-ring 15X2,5 2
N10405604 Offers

[Name] [Note] [QTY]
Oval hexagon socket head bolt M6X14 2
05A115201 Offers

[Name] [QTY]
thermostat 1
N10451405 Offers

[Name] [Note] [QTY]
Oval hexagon socket head bolt M6X16 1
WHT003251 Offers

[Name] [Note] [QTY]
O-ring 6X2 2
[Name] [Note] [QTY]
oil level sensor 1
see illustration: 919-080
N0119185 Offers

[Name] [Note] [QTY]
End cap 12 3
[Name] [Note] [QTY]
Hexagon socket flat head bolt 1
see illustration: 919-080
N10124306 Offers

[Name] [Note] [QTY]
Hexagon socket flat head bolt M6X20 1
[Name] [Note]
O-ring
see illustration: 260-020
[Name] [Note]
Coolant pipe
see illustration: 260-020
05A109244A Offers

[Name] [QTY]
idler pulley 2
Poly-V-belt
N91124501 Offers

[Name] [Note] [QTY]
Hexagon socket head bolt M8X40 2
WHT001315A Offers

[Name] [Note] [QTY]
O-ring 28X2,5 3
N91008501 Offers

[Name] [Note] [QTY]
O-ring 35X3 1
N90275302 Offers

[Name] [Note] [QTY]
O-ring 32X3 2
N0119019 Offers

[Name] [Note] [QTY]
End cap 20 9
N10550502 Offers

[Name] [Note] [QTY]
End cap 36X1,6 5
05A103520B Offers

[Name] [Note] [QTY]
Mounting 38X18 1
05A103520A Offers

[Name] [Note] [QTY]
Mounting 22X18 1
