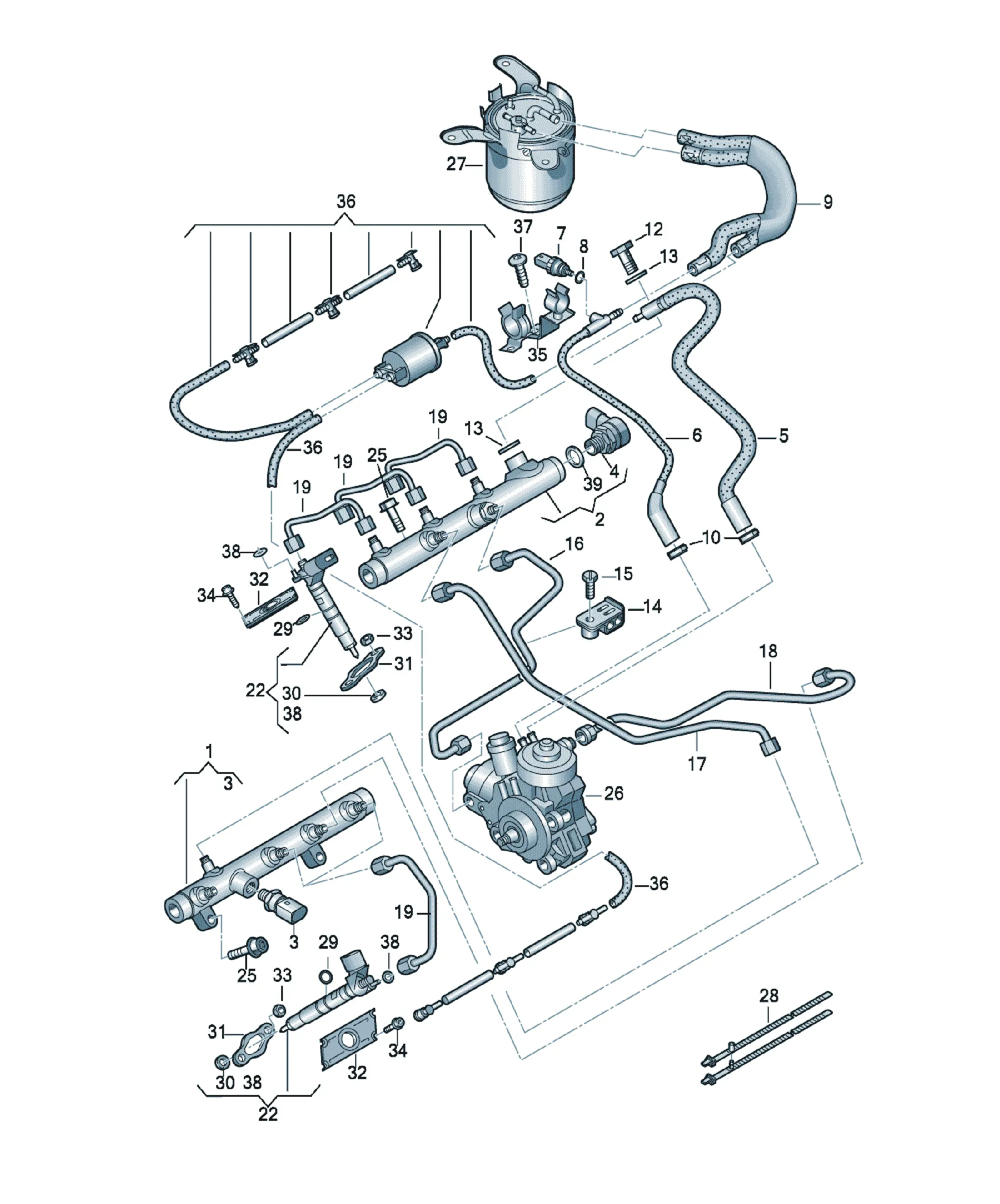

Fuel rail

[Name] [Note] [QTY]

Fuel rail left 1

[Name] [Note] [QTY]

Spring band clamp 17X12 2

[Name] [Note] [QTY]

Banjo bolt M12 1

Replacements: N 0210719

[Name] [Note] [QTY]

seal ring 12X15,5X1,5 2

[Name] [Note] [QTY]

Bracket 2 point 2

[Name] [Note] [QTY]

Oval hexagon socket head bolt M6X16 2

[Name] [QTY]

Fuel line 1

[Name] [QTY]

Fuel line 1

[Name] [QTY]

Fuel line 1

[Name] [Note] [QTY]

pressure pipe Cylinder 1-6 6

[Name] [Note] [QTY]

Fuel rail right 1

[Name] [Note] [QTY]

Injector unit 6

only to be used for: 059 130 277 BE

Replacements: 059130277BE

Old part

059130277AP Injector unit 1

Labelled with part number

059130277AR Injector unit 1

Labelled with part number

059130277BE Injector unit 1

Labelled with part number

[Name] [QTY]

Injector unit 6

mating connector

4D0971992 Flat connector housing with contact locking mechanism 2 pin 1

black/violet

[Name] [Note] [QTY]

Socket head bolt with inner multipoint head M8X60 4

[Name] [Note]

high pressure pump

see illustration: 130-032

[Name] [Note]

Fuel filter

see illustration: 127-050

[Name] [Note] [QTY]

double cable tie 7X213/140MM X

[Name] [Note] [QTY]

O-ring 16,2X1,5 6

[Name] [Note] [QTY]

Pressure sensor 1800 BAR 1

M12X1,5

mating connector

4D0971993 Flat connector housing with contact locking mechanism 3 pin 1

black

[Name] [QTY]

seal ring 6

[Name] [QTY]

tensioning plate 6

[Name] [QTY]

End cap 6

Replacements: 059103113G

[Name] [Note] [QTY]

Hexagon collar nut M6 12

[Name] [Note] [QTY]

Socket head bolt with hexagon socket head (combination) M5X12 16

[Name] [QTY]

Bracket 1

[Name] [QTY]

Fuel hose 1

D - 28.09.2009>>

[Name] [QTY]

Fuel hose 1

Replacements: 059130218AF; 059130131H

[Name] [Note] [QTY]

Hexagon socket flat head bolt M6X12 3

[Name] [Note] [QTY]

O-ring 2,8X1,5 6

Replacements: WHT007480

[Name] [QTY]

O-ring 1

[Name] [Note] [QTY]

Pressure regulating valve 1800 BAR 1

also use: 057 130 119 A 1

Accompanying details: 057130119A

mating connector

4D0971992A Flat connector housing with contact locking mechanism 2 pin 1

black

[Name] [Note] [QTY]

1 set fuel pipes feed/return 1

D >> - 03.11.2010

only for: 059 130 755 AH

059 130 755 BB

Potential individual parts

N 91020301 Spring band clamp 14,5X12 3

4B0422379 Spring band clamp 16X12 2

[Name] [Note] [QTY]

1 set fuel pipes feed/return 1

D - 03.11.2010>>

only for: 059 130 755 BK

059 130 755 BS

[Name] [Note]

Included in position: 5

[Name] [QTY]

Temperature sensor 1

Replacements: 059919523F

mating connector

07P973702 Flat contact housing with contact locking mechanism 2 pin 1

black/yellow

Connection piece

thermostat

4H0973702A Flat contact housing 2 pin 1

Connection piece black

thermostat

[Name] [Note] [QTY]

O-ring 5,6X2N 1

[Name] [Note]

Fuel line

see illustration: 201-021
