Anti-roll bar / Sway bar

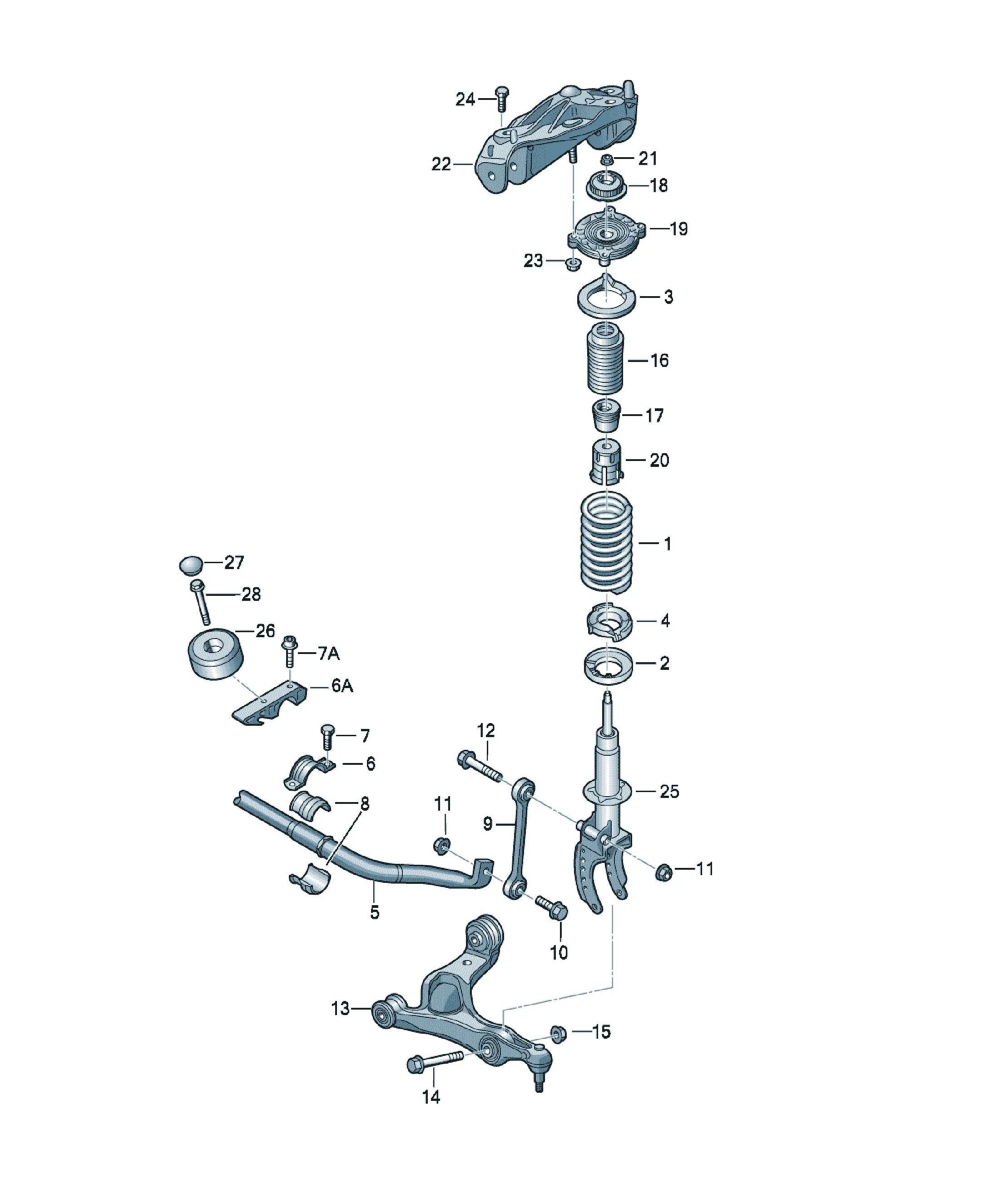

Front suspension

Assembly diagrams

3 diagrams

Parts

62 parts

7L8411105AP Offers

[Name] [Note] [Model info] [QTY]
Coil spring PR:0JA+1BW 2
1 paint mark Erika violet
3 paint marks brown
7L8411105AK Offers

[Name] [Note] [Model info] [QTY]
Coil spring PR:0JA+1BA 2
1 paint mark Erika violet
1 paint mark green
7L8411105AK Offers

[Name] [Note] [Model info] [QTY]
Coil spring PR:0JA+1BM 2
1 paint mark Erika violet
1 paint mark green
7L8411105AL Offers

[Name] [Note] [Model info] [QTY]
Coil spring PR:0JB+1BA 2
1 paint mark Erika violet
2 paint marks green
7L8411105AL Offers

[Name] [Note] [Model info] [QTY]
Coil spring PR:0JB+1BM 2
1 paint mark Erika violet
2 paint marks green
7L8411105AM Offers

[Name] [Note] [Model info] [QTY]
Coil spring PR:0JC+1BA 2
1 paint mark Erika violet
3 paint marks green
7L8411105AM Offers

[Name] [Note] [Model info] [QTY]
Coil spring PR:0JC+1BM 2
1 paint mark Erika violet
3 paint marks green
7L8411105AN Offers

[Name] [Note] [Model info] [QTY]
Coil spring PR:0JD+1BA 2
1 paint mark Erika violet
1 paint mark brown
7L8411105AQ Offers

[Name] [Note] [Model info] [QTY]
Coil spring PR:0JB+1BW 2
1 paint mark Erika violet
1 paint mark Dark green
7L8411105AR Offers

[Name] [Note] [Model info] [QTY]
Coil spring PR:0JC+1BW 2
1 paint mark Erika violet
2 paint marks Dark green
4L0411105 Offers

[Name] [Note] [Model info] [QTY]
Coil spring PR:0JA+1BV 2
1 paint mark Grey
1 paint mark yellow
4L0411105A Offers

[Name] [Note] [Model info] [QTY]
Coil spring PR:0JB+1BV 2
1 paint mark Grey
2 paint marks yellow
4L0411105B Offers

[Name] [Note] [Model info] [QTY]
Coil spring PR:0JC+1BV 2
1 paint mark Grey
3 paint marks yellow
4L0411105C Offers

[Name] [Note] [Model info] [QTY]
Coil spring PR:0JD+1BV 2
1 paint mark Grey
1 paint mark red
4L0411105D Offers

[Name] [Note] [Model info] [QTY]
Coil spring PR:0JE+1BV 2
1 paint mark Grey
2 paint marks red
N10566803 Offers

[Name] [Note] [QTY]
Hex collared bolt M12X1,5X60 2
N10402904 Offers

[Name] [Note] [QTY]
Hexagon collar nut M12X1,5 4
N10576002 Offers

[Name] [Note] [QTY]
Hex collared bolt M12X1,5X125 2
[Name] [Note]
Wishbone
see illustration: 407-000
N10532602 Offers

[Name] [Note] [QTY]
Hex collared bolt M14X1,5X102 2
N10335304 Offers

[Name] [Note] [QTY]
Hexagon nut M14X1,5 2
7L0412137 Offers

[Name] [QTY]
Protective sleeve 2
7L5412303 Offers

[Name] [Note] [Model info] [QTY]
rubber stop for shock absorber 78MM PR:1BV 2
for vehicles with sports suspension
7L8412303 Offers

[Name] [Note] [QTY]
rubber stop for shock absorber 78MM 2
7L0412327A Offers

[Name] [Note] [QTY]
Mounting upper 2
7L0412347A Offers

[Name] [Note] [QTY]
Bearing plate upper 2
7L0411178B Offers

[Name] [Note] [QTY]
Insert lower 2
marked with: beige
7L0411178A Offers

[Name] [Note] [QTY]
Insert lower 2
marked with: blue
7L0411178 Offers

[Name] [Note] [QTY]
Insert lower 2
marked with: black
7L0412375A Offers

[Name] [QTY]
Cap 2
N90966402 Offers

[Name] [Note] [QTY]
Hexagon collar nut self-locking M12X1,5 2
[Name] [Note]
Bracket
see illustration: 407-000
N10435506 Offers

[Name] [Note] [QTY]
Hexagon collar nut self-locking M8 8
N91040002 Offers

[Name] [Note] [QTY]
bolt,hex.hd.with shoul.(combi) M10X37 6
4L0413031 Offers

[Name] [Note] [Model info] [QTY]
Gas shock absorber left PR:1BV 1
***** Caution Hazardous ******
7L8413031J Offers

[Name] [Note] [Model info] [QTY]
Gas shock absorber left PR:1BA,1BM 1
***** Caution Hazardous ******
7L8413031K Offers

[Name] [Note] [Model info] [QTY]
Gas shock absorber left PR:1BW 1
***** Caution Hazardous ******
7L8413032J Offers

[Name] [Note] [Model info] [QTY]
Gas shock absorber right PR:1BA,1BM 1
***** Caution Hazardous ******
4L0413032 Offers

[Name] [Note] [Model info] [QTY]
Gas shock absorber right PR:1BV 1
***** Caution Hazardous ******
7L8413032K Offers

[Name] [Note] [Model info] [QTY]
Gas shock absorber right PR:1BW 1
***** Caution Hazardous ******
7P6499321 Offers

[Name] [Model info] [QTY]
Balance weight 6-cylinder+ 2
D - MJ 2010>> diesel eng.
7H0499333 Offers

[Name] [Model info] [QTY]
Cap 6-cylinder+ 2
D - MJ 2010>> diesel eng.
N10650501 Offers

[Name] [Note] [Model info] [QTY]
Hex collared bolt M10X105X90 6-cylinder+ 2
D - MJ 2010>> diesel eng.
4L0411189 Offers

[Name] [Note] [Model info] [QTY]
Underlay upper PR:1BV 2
7L0411189 Offers

[Name] [Note] [Model info] [QTY]
Underlay upper PR:1BA,1BM, 2
1BW
7L0411190 Offers

[Name] [Note] [Model info] [QTY]
Underlay lower PR:1BA,1BM, 2
1BW
4L0411190 Offers

[Name] [Note] [Model info] [QTY]
Underlay lower PR:1BV 2
7L0411025G Offers

[Name] [Note] [QTY]
Anti-roll bar 38X5,4MM 1
marked with: green
D - 30.05.2011>> - 04.02.2013
7L0411025G Offers

[Name] [Note] [QTY]
Anti-roll bar 38X5,4MM 1
marked with: green
D - 31.05.2010>> - 30.05.2011
7L0411025G Offers

[Name] [Note] [QTY]
Anti-roll bar 38X5,4MM 1
marked with: green
D >> - 31.05.2010
7L0411025H Offers

[Name] [Note] [QTY]
Anti-roll bar 38X5,4MM 1
marked with: brown
7P0411025J Offers

[Name] [Note] [QTY]
Anti-roll bar 38X5,4MM 1
marked with: brown
D - 04.02.2013>>
7P0411025H Offers

[Name] [Note] [QTY]
Anti-roll bar 38X5,4MM 1
marked with: green
D >> - 04.02.2013
7P0411025H Offers

[Name] [Note] [QTY]
Anti-roll bar 38X5,4MM 1
marked with: green
D - 04.02.2013>>
7L0411025G Offers

[Name] [Note] [QTY]
Anti-roll bar 38X5,4MM 1
marked with: green
D - 04.02.2013>>
[Name]
Clamp
Not for this model
7L0411063B Offers

[Name] [QTY]
Clamp 2
[Name]
Hexagon bolt
Not for this model
N10425302 Offers

[Name] [Note] [QTY]
Hex collared bolt M10X62X45 4
D - 31.05.2010>>
N10425302 Offers

[Name] [Note] [QTY]
Hex collared bolt M10X62X45 4
D >> - 31.05.2010
7L8411313B Offers

[Name] [Note] [QTY]
Rubber bush 4
marked with: orange
marked with: green
7L0411317 Offers

[Name] [QTY]
Coupling rod 2
