Fluids, oil change

Gearbox seals

Assembly diagrams

8 diagrams

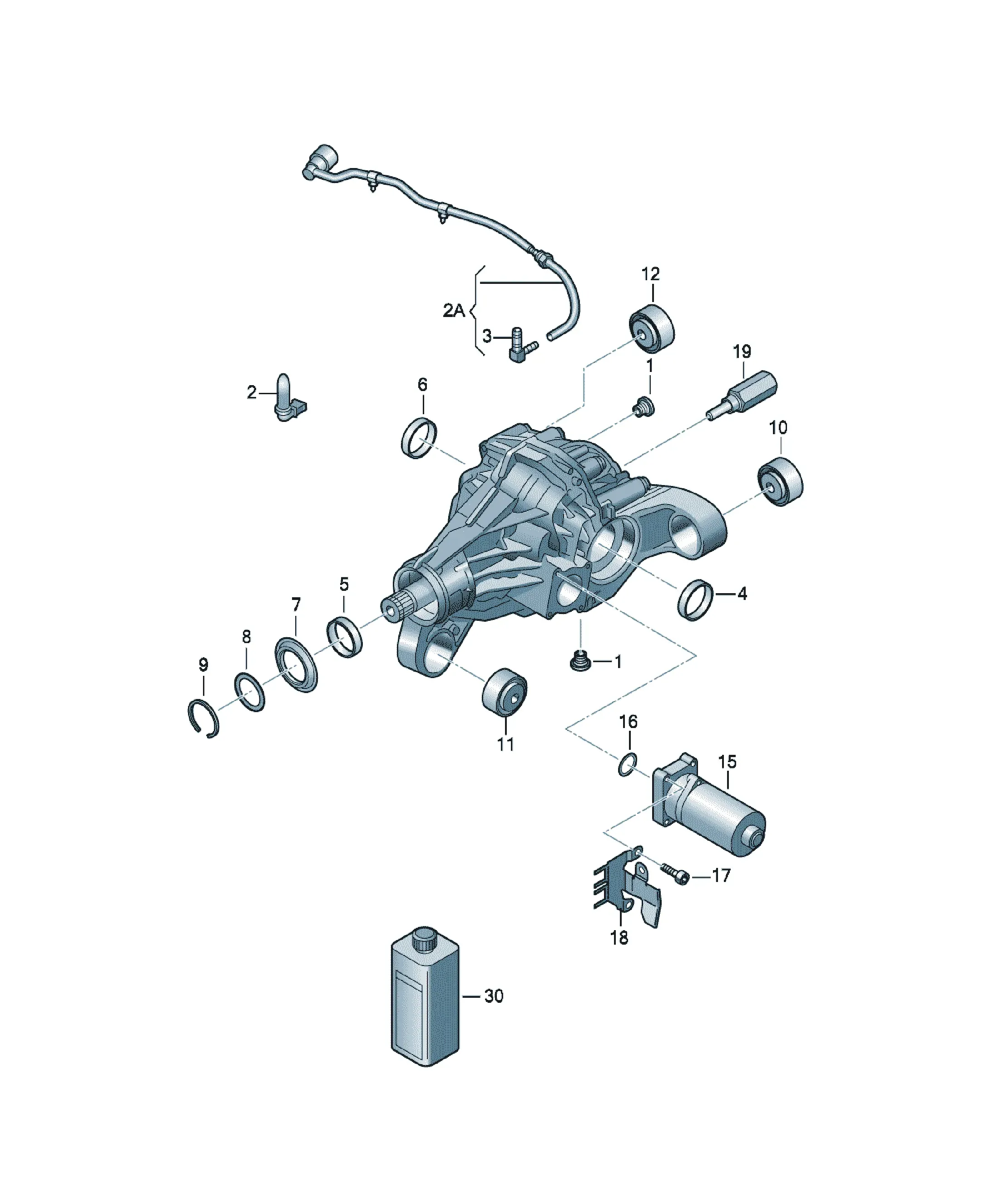

Gearbox seals diagram

Parts

17 parts

0AA409057 Offers

[Name] [Note] [QTY]
sealing plug M16X1,5 2
7P0525337E Offers

[Name] [Note] [QTY]
Bonded rubber bush 60MM 1
7P0525337D Offers

[Name] [Note] [QTY]
Bonded rubber bush 70MM 1
7P0525337E Offers

[Name] [Note] [QTY]
Bonded rubber bush 60MM 1
0BM301047 Offers

[Name] [QTY]
Bleed valve 1
G052145S2 Offers

[Name] [Note] [QTY]
axle oil 1.0 Ltr. X
Service fluid -gear oil- SAE 75W-90
G052145A1 Offers

[Name] [Note] [QTY]
axle oil 0.5ltr. X
Service fluid -gear oil- SAE 75W90
Replacements: G 052145S2;
0AA409189A Offers

[Name] [Note] [Model info] [QTY]
Shaft oil seal 1
Axle code letter:
MEX,MEY
0AB525596B Offers

[Name] [Note] [Model info] [QTY]
Shaft oil seal 72X50 1
Axle code letter:
MEZ
0AA409189D Offers

[Name] [Note] [Model info] [QTY]
Shaft oil seal 1
Axle code letter:
MEZ
0AA409189C Offers

[Name] [Note] [Model info] [QTY]
Shaft oil seal 1
Axle code letter:
MEX,MEY
0AA409189H Offers

[Name] [Note] [Model info] [QTY]
Shaft oil seal 1
Axle code letter:
MEX,MEY
0AB525596A Offers

[Name] [Note] [Model info] [QTY]
Shaft oil seal 82X50 1
Axle code letter:
MEZ
0AA409375F Offers

[Name] [Note] [Model info] [QTY]
protective ring 1
Axle code letter:
MEZ
0AA409375E Offers

[Name] [Note] [Model info] [QTY]
protective ring 1
Axle code letter:
MEX,MEY
[Name] [Note]
see illustration: 521-005
[Name] [Note]
see illustration: 521-005
