Roof

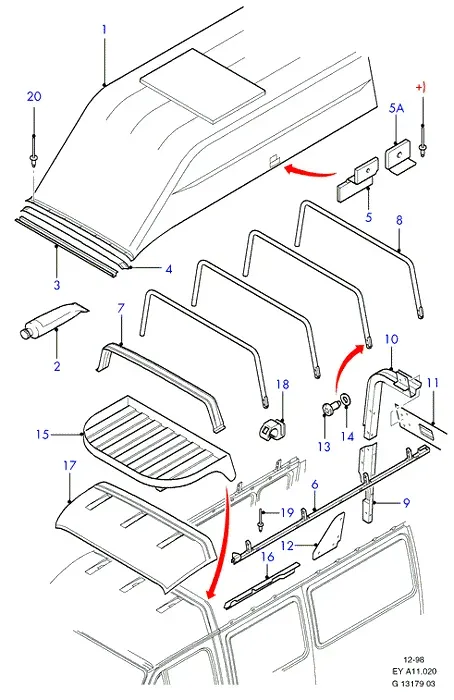

Roof structure

Assembly diagrams

7 diagrams

Parts

35 parts

1669316 Offers

Engineering number: V94VB V50202 AAW
Date of manufacture: 01/11/1994 - 31/08/2000
: 1
description: Panel Assy - Roof
Hi Cube(White)
SVO V883
(+)"Europe"
3570MM (LCY)
1077483 Offers

Engineering number: V95VB V50202 AAW
Date of manufacture: 01/11/1994 - 31/08/2000
: 1
description: Panel Assy - Roof
Hi Cube(Securicor Omega B)
(+)"Europe"
3570MM (LCY)
1042209 Offers

Engineering number: 94VB V50202 AEZAAD
Date of manufacture: 08/08/1994 - 31/08/2000
: 1
description: Panel Assy - Roof
(+)"Europe"
3570MM (LCY)
1042974 Offers

Engineering number: 94VB V50202 BEZAAD
Date of manufacture: 08/08/1994 - 31/08/2000
: 1
description: Panel Assy - Roof
(+)"Europe"
2835MM (LCX)
1037176 Offers

Engineering number: 94VB V412K24 AE
Date of manufacture: 08/08/1994 - 31/08/2000
: 1
description: Reinforcement Assy - Roof Rear Rail
Before ordering, please read the information in the blue envelope!
LH
(+)"Europe"
1037175 Offers

Engineering number: 94VB V412K23 AE
Date of manufacture: 08/08/1994 - 31/08/2000
: 1
description: Reinforcement Assy - Roof Rear Rail
Before ordering, please read the information in the blue envelope!
RH
(+)"Europe"
1037177 Offers

Engineering number: 95VB V513B06 AB
Date of manufacture: 01/11/1994 - 31/08/2000
: 1
description: Rail Assy - Roof - Rear
Before ordering, please read the information in the blue envelope!
(+)"Europe"
6943405 Offers

Engineering number: 94VB V410A48 AA
Date of manufacture: 08/08/1994 - 31/08/2000
: 2
description: Plate - Reinforcement
(+)"Europe"
6668510 Offers

Engineering number: W701070 S309M
Date of manufacture: 08/08/1994 - 31/08/2000
: 36
description: Screw
M8 x 24MM
(+)"Europe"
1430164 Offers

Engineering number: W700415 S437
Date of manufacture: 08/08/1994 - 31/08/2000
: 36
description: Washer - Flat
8.4 x 17MM
(+)"Europe"
1071635 Offers

Engineering number: 94VB V550A72 ACYRA4
Date of manufacture: 08/08/1994 - 31/08/2000
: 1
description: Tray Assy - Package
(+)"Europe"
7393288 Offers

Engineering number: 94VB V250K17 ACYCMV
Date of manufacture: 08/08/1994 - 31/08/2000
: 1
description: Cover
With Side Loading Door
(T-)
(+)"Europe"
3570MM (LCY)
7393289 Offers

Engineering number: 94VB V250K17 BCYCMV
Date of manufacture: 08/08/1994 - 31/08/2000
: 1
description: Cover
With Side Loading Door
(-S)
(+)"Europe"
3570MM (LCY)
7393291 Offers

Engineering number: 94VB V250K17 DCYCMV
Date of manufacture: 08/08/1994 - 31/08/2000
: 1
description: Cover
With Side Loading Door
(-S)
(+)"Europe"
2835MM (LCX)
7393290 Offers

Engineering number: 94VB V250K17 CCYCMV
Date of manufacture: 08/08/1994 - 31/08/2000
: 1
description: Cover
With Side Loading Door
(T-)
(+)"Europe"
2835MM (LCX)
1015744 Offers

Engineering number: 86VB V50202 BD
Date of manufacture: 08/08/1994 - 31/08/2000
: 1
description: Panel Assy - Roof
Before ordering, please read the information in the blue envelope!
(+)"Europe"
1000540 Offers

Engineering number: W700901 S300
Date of manufacture: 08/08/1994 - 31/08/2000
: 1
description: Clip - Wiring
(+)"Europe"
1476197 Offers

Engineering number: W702512 S437
Date of manufacture: 08/08/1994 - 31/08/2000
: 10
description: Rivet - Blind
(+)"Europe"
1790195 Offers

Engineering number: 1S5J M4G245 AB
Date of manufacture: 08/08/1994 - 31/08/2000
: AR
description: Sealer - Air Drying
ESKM-4G245-A
310 ML
(+)"Europe"
6958032 Offers

Engineering number: W702554 S309
Date of manufacture: 08/08/1994 - 31/08/2000
: AR
description: Rivet - Blind
(+)"Europe"
1097835 Offers

Engineering number: 94VB V54732 AE
Date of manufacture: 08/08/1994 - 31/08/2000
: 1
description: Weatherstrip
(+)"Europe"
7196839 Offers

Engineering number: 94VB V54714 AB
Date of manufacture: 08/08/1994 - 31/08/2000
: 1
description: Retainer - Weatherstrip
(+)"Europe"
7121593 Offers

Engineering number: 94VB V503N37 AC
Date of manufacture: 08/08/1994 - 31/08/2000
: 4
description: Bracket - Support
(+)"Europe"
1023010 Offers

Engineering number: 95VB V513A09 CD
Date of manufacture: 08/08/1994 - 31/08/2000
: 1
description: Reinforcement - Roof Rail
With Side Loading Door
LH
(+)"Europe"
2835MM (LCX)
1055414 Offers

Engineering number: 95VB V513A08 DD
Date of manufacture: 08/08/1994 - 31/08/2000
: 1
description: Reinforcement - Roof Rail
Less Side Loading Door
RH
(+)"Europe"
2835MM (LCX)
1055417 Offers

Engineering number: 95VB V513A09 DD
Date of manufacture: 08/08/1994 - 31/08/2000
: 1
description: Reinforcement - Roof Rail
Less Side Loading Door
LH
(+)"Europe"
2835MM (LCX)
1055416 Offers

Engineering number: 95VB V513A09 BD
Date of manufacture: 08/08/1994 - 31/08/2000
: 1
description: Reinforcement - Roof Rail
Less Side Loading Door
LH
(+)"Europe"
3570MM (LCY)
1055413 Offers

Engineering number: 95VB V513A08 BD
Date of manufacture: 08/08/1994 - 31/08/2000
: 1
description: Reinforcement - Roof Rail
Less Side Loading Door
RH
(+)"Europe"
3570MM (LCY)
1022997 Offers

Engineering number: 95VB V513A08 AD
Date of manufacture: 08/08/1994 - 31/08/2000
: 1
description: Reinforcement - Roof Rail
With Side Loading Door
RH
(+)"Europe"
3570MM (LCY)
1023004 Offers

Engineering number: 95VB V513A09 AD
Date of manufacture: 08/08/1994 - 31/08/2000
: 1
description: Reinforcement - Roof Rail
With Side Loading Door
LH
(+)"Europe"
3570MM (LCY)
1023002 Offers

Engineering number: 95VB V513A08 CD
Date of manufacture: 08/08/1994 - 31/08/2000
: 1
description: Reinforcement - Roof Rail
With Side Loading Door
RH
(+)"Europe"
2835MM (LCX)
6943404 Offers

Engineering number: 94VB V51272 AA
Date of manufacture: 08/08/1994 - 31/08/2000
: 1
description: Bow Assy - Roof
Before ordering, please read the information in the blue envelope!
(+)"Europe"
1052159 Offers

Engineering number: 94VB V512A78 AD
Date of manufacture: 08/08/1994 - 31/08/2000
: 4
description: Bow Assy - Roof
Before ordering, please read the information in the blue envelope!
(+)"Europe"
1037174 Offers

Engineering number: 94VB V41021 AE
Date of manufacture: 08/08/1994 - 31/08/2000
: 1
description: Reinforcement Assy - Roof Rear Rail
LH
(+)"Europe"
1037173 Offers

Engineering number: 94VB V41020 AE
Date of manufacture: 08/08/1994 - 31/08/2000
: 1
description: Reinforcement Assy - Roof Rear Rail
RH
(+)"Europe"
