Shock absorbers

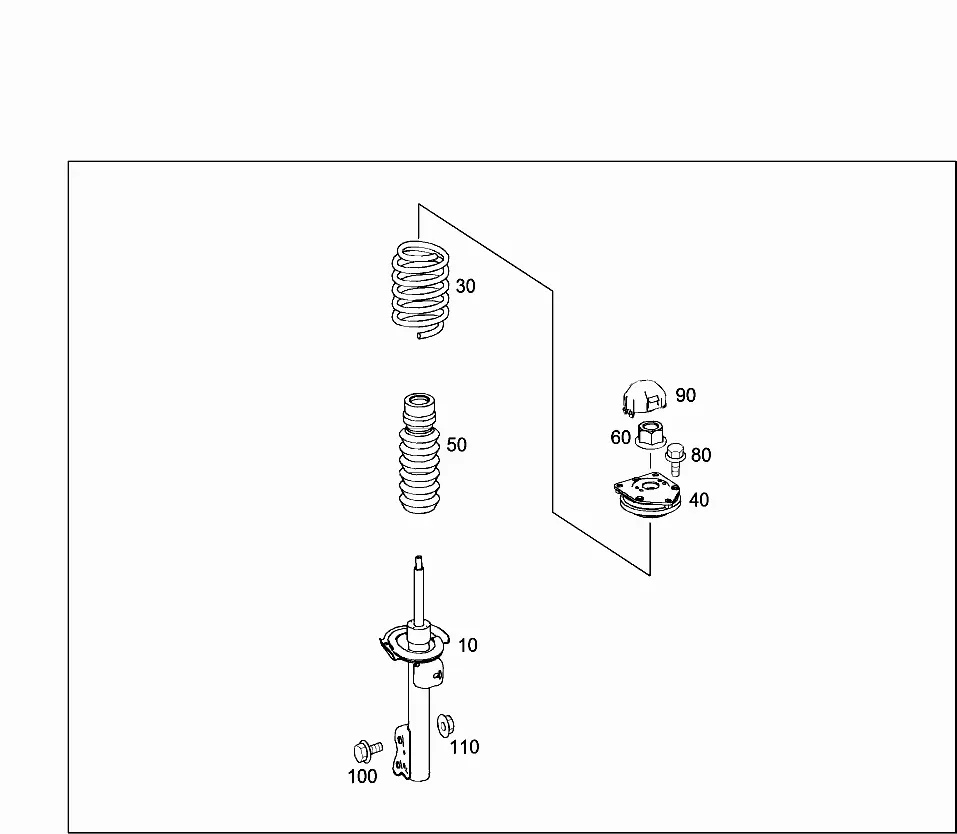

Front suspension strut

Assembly diagrams

2 diagrams

Parts

23 parts

A1693201030 Offers

FRONT
Replaced by A 1693201630
002: NOTE SERVICE INFORMATION IN WIS WIS-NET#BT32.25-P-0003-01AK#
QTY: 002
A1693200430 Offers

FRONT
Replaced by A 1693201030
002: NOTE SERVICE INFORMATION IN WIS WIS-NET#BT32.25-P-0003-01AK#
QTY: 002
A1693201630 Offers

FRONT
002: NOTE SERVICE INFORMATION IN WIS WIS-NET#BT32.25-P-0003-01AK#
QTY: 002
N910105014006 Offers

SUSPENSION STRUT TO STEERING KNUCKLE
M14X1.5X65
QTY: 004
A0029903554 Offers

SUSPENSION STRUT TO STEERING KNUCKLE
M14X1,5
QTY: 004
A1693211004 Offers

COLOR MARKING: 4 X GREEN
002: NOTE SERVICE INFORMATION IN WIS WIS-NET#BT32.25-P-0003-01AK#
004: TO DETERMINE THE FRONT SPRINGS, THE POINTS IN THE TABLE BELOW FOR EACH RESPECTIVE MODEL AND THE SPECIAL VERSIONS
004: INSTALLED ARE TO BE ADDED UP
004: ===========================================================================================================================
004: MODEL POINTS TOTAL CODE SPECIALEQUIPMENT POINTS TOTAL
004: 169.006 190 416 PANORAMIC GLASS ROOF 2
004: 169.007 194 417 LAMELLAROOF 2
004: 169.008 194 426 CVT AUTOMATIC TRANS. 8 = 007/008/034/307/308/334
004: 169.031 166 426 CVT AUTOMATIC TRANSM. 11 = 006/033/306/333
004: 169.032 168 426 CVT AUTOMATIC TRANSMISSION 12 = 032/332
004: 169.033 171 426 CVT AUTOMATIC TRANSMISSION 13 = 031/331
004: 169.034 180 474 PARTICULATE FILTER 1
004: 169.306 187 484 MORE GROUND CLEARANCE 5
004: 169.307 191 525 RADIO 1
004: 169.308 191 527/529/530 COMAND 1
004: 169.331 163 494 USA VERSION 1
004: 169.332 165 450 TAXI 1
004: 169.333 168 614-618 BI-XENON 1
004: 169.334 177 673 BATTERY WITH HIGHER CAPACITY 1
004: 819 CD-CHANGER 1
004: 873 HEATED. SEAT 1
004: U57 EASY-VARIO 1
004: U64 DUAL OPERATION 3
004: 550+426 TRAILERCOUPLING 1 = 006/007/008/033/034
004: 550+426 TRAILERCOUPLING 1 = 306/307/308/333/334
004: 580/581 A/C SYSTEM 3 = 006/007/031/032/033
004: 580/581 A/C SYSTEM 3 = 306/307/331/332/333
004: 580/581 A/C SYSTEM 4 = 008/034/308/334
004: FRONT. SPRING TABLE
004: POINTS TOTAL....
004: S.SERIES LG. GRND S. SUSPENSION FR. SPRING
004: CLEAR.484 486/M640+M013+410
004: -176 169 321 38 04
004: 177-183 169 321 23 04
004: 184-191 169 321 24 04
004: 192-199 169 321 25 04
004: 200-207 169 321 26 04
004: 208-216 169 321 27 04
004: 217-250 169 321 28 04
004:
004: -188 169 321 06 04
004: 189-197 169 321 08 04
004: 198-205 169 321 09 04
004: 206-214 169 321 10 04
004: 215-250 169 321 11 04
004: -179 169 321 39 04
004: 180-187 169 321 16 04
004: 188-196 169 321 17 04
004: 197-205 169 321 18 04
004: 206-214 169 321 19 04
004: 215-250 169 321 20 04
004: ------------------------------------------------------------------------------------------------------------------------------
005: CAUTION: UP TO IDENT. NO. J 336437 REPLACE AS PAIR ONLY
QTY: 002
A1693210904 Offers

COLOR MARKING: 3 X GREEN
002: NOTE SERVICE INFORMATION IN WIS WIS-NET#BT32.25-P-0003-01AK#
004: TO DETERMINE THE FRONT SPRINGS, THE POINTS IN THE TABLE BELOW FOR EACH RESPECTIVE MODEL AND THE SPECIAL VERSIONS
004: INSTALLED ARE TO BE ADDED UP
004: ===========================================================================================================================
004: MODEL POINTS TOTAL CODE SPECIALEQUIPMENT POINTS TOTAL
004: 169.006 190 416 PANORAMIC GLASS ROOF 2
004: 169.007 194 417 LAMELLAROOF 2
004: 169.008 194 426 CVT AUTOMATIC TRANS. 8 = 007/008/034/307/308/334
004: 169.031 166 426 CVT AUTOMATIC TRANSM. 11 = 006/033/306/333
004: 169.032 168 426 CVT AUTOMATIC TRANSMISSION 12 = 032/332
004: 169.033 171 426 CVT AUTOMATIC TRANSMISSION 13 = 031/331
004: 169.034 180 474 PARTICULATE FILTER 1
004: 169.306 187 484 MORE GROUND CLEARANCE 5
004: 169.307 191 525 RADIO 1
004: 169.308 191 527/529/530 COMAND 1
004: 169.331 163 494 USA VERSION 1
004: 169.332 165 450 TAXI 1
004: 169.333 168 614-618 BI-XENON 1
004: 169.334 177 673 BATTERY WITH HIGHER CAPACITY 1
004: 819 CD-CHANGER 1
004: 873 HEATED. SEAT 1
004: U57 EASY-VARIO 1
004: U64 DUAL OPERATION 3
004: 550+426 TRAILERCOUPLING 1 = 006/007/008/033/034
004: 550+426 TRAILERCOUPLING 1 = 306/307/308/333/334
004: 580/581 A/C SYSTEM 3 = 006/007/031/032/033
004: 580/581 A/C SYSTEM 3 = 306/307/331/332/333
004: 580/581 A/C SYSTEM 4 = 008/034/308/334
004: FRONT. SPRING TABLE
004: POINTS TOTAL....
004: S.SERIES LG. GRND S. SUSPENSION FR. SPRING
004: CLEAR.484 486/M640+M013+410
004: -176 169 321 38 04
004: 177-183 169 321 23 04
004: 184-191 169 321 24 04
004: 192-199 169 321 25 04
004: 200-207 169 321 26 04
004: 208-216 169 321 27 04
004: 217-250 169 321 28 04
004:
004: -188 169 321 06 04
004: 189-197 169 321 08 04
004: 198-205 169 321 09 04
004: 206-214 169 321 10 04
004: 215-250 169 321 11 04
004: -179 169 321 39 04
004: 180-187 169 321 16 04
004: 188-196 169 321 17 04
004: 197-205 169 321 18 04
004: 206-214 169 321 19 04
004: 215-250 169 321 20 04
004: ------------------------------------------------------------------------------------------------------------------------------
005: CAUTION: UP TO IDENT. NO. J 336437 REPLACE AS PAIR ONLY
QTY: 002
A1693210604 Offers

COLOR MARKING: 1 X GREEN
002: NOTE SERVICE INFORMATION IN WIS WIS-NET#BT32.25-P-0003-01AK#
004: TO DETERMINE THE FRONT SPRINGS, THE POINTS IN THE TABLE BELOW FOR EACH RESPECTIVE MODEL AND THE SPECIAL VERSIONS
004: INSTALLED ARE TO BE ADDED UP
004: ===========================================================================================================================
004: MODEL POINTS TOTAL CODE SPECIALEQUIPMENT POINTS TOTAL
004: 169.006 190 416 PANORAMIC GLASS ROOF 2
004: 169.007 194 417 LAMELLAROOF 2
004: 169.008 194 426 CVT AUTOMATIC TRANS. 8 = 007/008/034/307/308/334
004: 169.031 166 426 CVT AUTOMATIC TRANSM. 11 = 006/033/306/333
004: 169.032 168 426 CVT AUTOMATIC TRANSMISSION 12 = 032/332
004: 169.033 171 426 CVT AUTOMATIC TRANSMISSION 13 = 031/331
004: 169.034 180 474 PARTICULATE FILTER 1
004: 169.306 187 484 MORE GROUND CLEARANCE 5
004: 169.307 191 525 RADIO 1
004: 169.308 191 527/529/530 COMAND 1
004: 169.331 163 494 USA VERSION 1
004: 169.332 165 450 TAXI 1
004: 169.333 168 614-618 BI-XENON 1
004: 169.334 177 673 BATTERY WITH HIGHER CAPACITY 1
004: 819 CD-CHANGER 1
004: 873 HEATED. SEAT 1
004: U57 EASY-VARIO 1
004: U64 DUAL OPERATION 3
004: 550+426 TRAILERCOUPLING 1 = 006/007/008/033/034
004: 550+426 TRAILERCOUPLING 1 = 306/307/308/333/334
004: 580/581 A/C SYSTEM 3 = 006/007/031/032/033
004: 580/581 A/C SYSTEM 3 = 306/307/331/332/333
004: 580/581 A/C SYSTEM 4 = 008/034/308/334
004: FRONT. SPRING TABLE
004: POINTS TOTAL....
004: S.SERIES LG. GRND S. SUSPENSION FR. SPRING
004: CLEAR.484 486/M640+M013+410
004: -176 169 321 38 04
004: 177-183 169 321 23 04
004: 184-191 169 321 24 04
004: 192-199 169 321 25 04
004: 200-207 169 321 26 04
004: 208-216 169 321 27 04
004: 217-250 169 321 28 04
004:
004: -188 169 321 06 04
004: 189-197 169 321 08 04
004: 198-205 169 321 09 04
004: 206-214 169 321 10 04
004: 215-250 169 321 11 04
004: -179 169 321 39 04
004: 180-187 169 321 16 04
004: 188-196 169 321 17 04
004: 197-205 169 321 18 04
004: 206-214 169 321 19 04
004: 215-250 169 321 20 04
004: ------------------------------------------------------------------------------------------------------------------------------
005: CAUTION: UP TO IDENT. NO. J 336437 REPLACE AS PAIR ONLY
QTY: 002
A1693210804 Offers

COLOR MARKING: 2 X GREEN
002: NOTE SERVICE INFORMATION IN WIS WIS-NET#BT32.25-P-0003-01AK#
004: TO DETERMINE THE FRONT SPRINGS, THE POINTS IN THE TABLE BELOW FOR EACH RESPECTIVE MODEL AND THE SPECIAL VERSIONS
004: INSTALLED ARE TO BE ADDED UP
004: ===========================================================================================================================
004: MODEL POINTS TOTAL CODE SPECIALEQUIPMENT POINTS TOTAL
004: 169.006 190 416 PANORAMIC GLASS ROOF 2
004: 169.007 194 417 LAMELLAROOF 2
004: 169.008 194 426 CVT AUTOMATIC TRANS. 8 = 007/008/034/307/308/334
004: 169.031 166 426 CVT AUTOMATIC TRANSM. 11 = 006/033/306/333
004: 169.032 168 426 CVT AUTOMATIC TRANSMISSION 12 = 032/332
004: 169.033 171 426 CVT AUTOMATIC TRANSMISSION 13 = 031/331
004: 169.034 180 474 PARTICULATE FILTER 1
004: 169.306 187 484 MORE GROUND CLEARANCE 5
004: 169.307 191 525 RADIO 1
004: 169.308 191 527/529/530 COMAND 1
004: 169.331 163 494 USA VERSION 1
004: 169.332 165 450 TAXI 1
004: 169.333 168 614-618 BI-XENON 1
004: 169.334 177 673 BATTERY WITH HIGHER CAPACITY 1
004: 819 CD-CHANGER 1
004: 873 HEATED. SEAT 1
004: U57 EASY-VARIO 1
004: U64 DUAL OPERATION 3
004: 550+426 TRAILERCOUPLING 1 = 006/007/008/033/034
004: 550+426 TRAILERCOUPLING 1 = 306/307/308/333/334
004: 580/581 A/C SYSTEM 3 = 006/007/031/032/033
004: 580/581 A/C SYSTEM 3 = 306/307/331/332/333
004: 580/581 A/C SYSTEM 4 = 008/034/308/334
004: FRONT. SPRING TABLE
004: POINTS TOTAL....
004: S.SERIES LG. GRND S. SUSPENSION FR. SPRING
004: CLEAR.484 486/M640+M013+410
004: -176 169 321 38 04
004: 177-183 169 321 23 04
004: 184-191 169 321 24 04
004: 192-199 169 321 25 04
004: 200-207 169 321 26 04
004: 208-216 169 321 27 04
004: 217-250 169 321 28 04
004:
004: -188 169 321 06 04
004: 189-197 169 321 08 04
004: 198-205 169 321 09 04
004: 206-214 169 321 10 04
004: 215-250 169 321 11 04
004: -179 169 321 39 04
004: 180-187 169 321 16 04
004: 188-196 169 321 17 04
004: 197-205 169 321 18 04
004: 206-214 169 321 19 04
004: 215-250 169 321 20 04
004: ------------------------------------------------------------------------------------------------------------------------------
005: CAUTION: UP TO IDENT. NO. J 336437 REPLACE AS PAIR ONLY
QTY: 002
A1693212804 Offers

COLOR MARKING: 6 X WHITE
002: NOTE SERVICE INFORMATION IN WIS WIS-NET#BT32.25-P-0003-01AK#
004: TO DETERMINE THE FRONT SPRINGS, THE POINTS IN THE TABLE BELOW FOR EACH RESPECTIVE MODEL AND THE SPECIAL VERSIONS
004: INSTALLED ARE TO BE ADDED UP
004: ===========================================================================================================================
004: MODEL POINTS TOTAL CODE SPECIALEQUIPMENT POINTS TOTAL
004: 169.006 190 416 PANORAMIC GLASS ROOF 2
004: 169.007 194 417 LAMELLAROOF 2
004: 169.008 194 426 CVT AUTOMATIC TRANS. 8 = 007/008/034/307/308/334
004: 169.031 166 426 CVT AUTOMATIC TRANSM. 11 = 006/033/306/333
004: 169.032 168 426 CVT AUTOMATIC TRANSMISSION 12 = 032/332
004: 169.033 171 426 CVT AUTOMATIC TRANSMISSION 13 = 031/331
004: 169.034 180 474 PARTICULATE FILTER 1
004: 169.306 187 484 MORE GROUND CLEARANCE 5
004: 169.307 191 525 RADIO 1
004: 169.308 191 527/529/530 COMAND 1
004: 169.331 163 494 USA VERSION 1
004: 169.332 165 450 TAXI 1
004: 169.333 168 614-618 BI-XENON 1
004: 169.334 177 673 BATTERY WITH HIGHER CAPACITY 1
004: 819 CD-CHANGER 1
004: 873 HEATED. SEAT 1
004: U57 EASY-VARIO 1
004: U64 DUAL OPERATION 3
004: 550+426 TRAILERCOUPLING 1 = 006/007/008/033/034
004: 550+426 TRAILERCOUPLING 1 = 306/307/308/333/334
004: 580/581 A/C SYSTEM 3 = 006/007/031/032/033
004: 580/581 A/C SYSTEM 3 = 306/307/331/332/333
004: 580/581 A/C SYSTEM 4 = 008/034/308/334
004: FRONT. SPRING TABLE
004: POINTS TOTAL....
004: S.SERIES LG. GRND S. SUSPENSION FR. SPRING
004: CLEAR.484 486/M640+M013+410
004: -176 169 321 38 04
004: 177-183 169 321 23 04
004: 184-191 169 321 24 04
004: 192-199 169 321 25 04
004: 200-207 169 321 26 04
004: 208-216 169 321 27 04
004: 217-250 169 321 28 04
004:
004: -188 169 321 06 04
004: 189-197 169 321 08 04
004: 198-205 169 321 09 04
004: 206-214 169 321 10 04
004: 215-250 169 321 11 04
004: -179 169 321 39 04
004: 180-187 169 321 16 04
004: 188-196 169 321 17 04
004: 197-205 169 321 18 04
004: 206-214 169 321 19 04
004: 215-250 169 321 20 04
004: ------------------------------------------------------------------------------------------------------------------------------
005: CAUTION: UP TO IDENT. NO. J 336437 REPLACE AS PAIR ONLY
QTY: 002
A1693212604 Offers

COLOR MARKING: 4 X WHITE
002: NOTE SERVICE INFORMATION IN WIS WIS-NET#BT32.25-P-0003-01AK#
004: TO DETERMINE THE FRONT SPRINGS, THE POINTS IN THE TABLE BELOW FOR EACH RESPECTIVE MODEL AND THE SPECIAL VERSIONS
004: INSTALLED ARE TO BE ADDED UP
004: ===========================================================================================================================
004: MODEL POINTS TOTAL CODE SPECIALEQUIPMENT POINTS TOTAL
004: 169.006 190 416 PANORAMIC GLASS ROOF 2
004: 169.007 194 417 LAMELLAROOF 2
004: 169.008 194 426 CVT AUTOMATIC TRANS. 8 = 007/008/034/307/308/334
004: 169.031 166 426 CVT AUTOMATIC TRANSM. 11 = 006/033/306/333
004: 169.032 168 426 CVT AUTOMATIC TRANSMISSION 12 = 032/332
004: 169.033 171 426 CVT AUTOMATIC TRANSMISSION 13 = 031/331
004: 169.034 180 474 PARTICULATE FILTER 1
004: 169.306 187 484 MORE GROUND CLEARANCE 5
004: 169.307 191 525 RADIO 1
004: 169.308 191 527/529/530 COMAND 1
004: 169.331 163 494 USA VERSION 1
004: 169.332 165 450 TAXI 1
004: 169.333 168 614-618 BI-XENON 1
004: 169.334 177 673 BATTERY WITH HIGHER CAPACITY 1
004: 819 CD-CHANGER 1
004: 873 HEATED. SEAT 1
004: U57 EASY-VARIO 1
004: U64 DUAL OPERATION 3
004: 550+426 TRAILERCOUPLING 1 = 006/007/008/033/034
004: 550+426 TRAILERCOUPLING 1 = 306/307/308/333/334
004: 580/581 A/C SYSTEM 3 = 006/007/031/032/033
004: 580/581 A/C SYSTEM 3 = 306/307/331/332/333
004: 580/581 A/C SYSTEM 4 = 008/034/308/334
004: FRONT. SPRING TABLE
004: POINTS TOTAL....
004: S.SERIES LG. GRND S. SUSPENSION FR. SPRING
004: CLEAR.484 486/M640+M013+410
004: -176 169 321 38 04
004: 177-183 169 321 23 04
004: 184-191 169 321 24 04
004: 192-199 169 321 25 04
004: 200-207 169 321 26 04
004: 208-216 169 321 27 04
004: 217-250 169 321 28 04
004:
004: -188 169 321 06 04
004: 189-197 169 321 08 04
004: 198-205 169 321 09 04
004: 206-214 169 321 10 04
004: 215-250 169 321 11 04
004: -179 169 321 39 04
004: 180-187 169 321 16 04
004: 188-196 169 321 17 04
004: 197-205 169 321 18 04
004: 206-214 169 321 19 04
004: 215-250 169 321 20 04
004: ------------------------------------------------------------------------------------------------------------------------------
005: CAUTION: UP TO IDENT. NO. J 336437 REPLACE AS PAIR ONLY
QTY: 002
A1693213804 Offers

COLOR MARKING: 1 X RED
002: NOTE SERVICE INFORMATION IN WIS WIS-NET#BT32.25-P-0003-01AK#
004: TO DETERMINE THE FRONT SPRINGS, THE POINTS IN THE TABLE BELOW FOR EACH RESPECTIVE MODEL AND THE SPECIAL VERSIONS
004: INSTALLED ARE TO BE ADDED UP
004: ===========================================================================================================================
004: MODEL POINTS TOTAL CODE SPECIALEQUIPMENT POINTS TOTAL
004: 169.006 190 416 PANORAMIC GLASS ROOF 2
004: 169.007 194 417 LAMELLAROOF 2
004: 169.008 194 426 CVT AUTOMATIC TRANS. 8 = 007/008/034/307/308/334
004: 169.031 166 426 CVT AUTOMATIC TRANSM. 11 = 006/033/306/333
004: 169.032 168 426 CVT AUTOMATIC TRANSMISSION 12 = 032/332
004: 169.033 171 426 CVT AUTOMATIC TRANSMISSION 13 = 031/331
004: 169.034 180 474 PARTICULATE FILTER 1
004: 169.306 187 484 MORE GROUND CLEARANCE 5
004: 169.307 191 525 RADIO 1
004: 169.308 191 527/529/530 COMAND 1
004: 169.331 163 494 USA VERSION 1
004: 169.332 165 450 TAXI 1
004: 169.333 168 614-618 BI-XENON 1
004: 169.334 177 673 BATTERY WITH HIGHER CAPACITY 1
004: 819 CD-CHANGER 1
004: 873 HEATED. SEAT 1
004: U57 EASY-VARIO 1
004: U64 DUAL OPERATION 3
004: 550+426 TRAILERCOUPLING 1 = 006/007/008/033/034
004: 550+426 TRAILERCOUPLING 1 = 306/307/308/333/334
004: 580/581 A/C SYSTEM 3 = 006/007/031/032/033
004: 580/581 A/C SYSTEM 3 = 306/307/331/332/333
004: 580/581 A/C SYSTEM 4 = 008/034/308/334
004: FRONT. SPRING TABLE
004: POINTS TOTAL....
004: S.SERIES LG. GRND S. SUSPENSION FR. SPRING
004: CLEAR.484 486/M640+M013+410
004: -176 169 321 38 04
004: 177-183 169 321 23 04
004: 184-191 169 321 24 04
004: 192-199 169 321 25 04
004: 200-207 169 321 26 04
004: 208-216 169 321 27 04
004: 217-250 169 321 28 04
004:
004: -188 169 321 06 04
004: 189-197 169 321 08 04
004: 198-205 169 321 09 04
004: 206-214 169 321 10 04
004: 215-250 169 321 11 04
004: -179 169 321 39 04
004: 180-187 169 321 16 04
004: 188-196 169 321 17 04
004: 197-205 169 321 18 04
004: 206-214 169 321 19 04
004: 215-250 169 321 20 04
004: ------------------------------------------------------------------------------------------------------------------------------
005: CAUTION: UP TO IDENT. NO. J 336437 REPLACE AS PAIR ONLY
QTY: 002
A1693211104 Offers

COLOR MARKING: 5 X GREEN
002: NOTE SERVICE INFORMATION IN WIS WIS-NET#BT32.25-P-0003-01AK#
004: TO DETERMINE THE FRONT SPRINGS, THE POINTS IN THE TABLE BELOW FOR EACH RESPECTIVE MODEL AND THE SPECIAL VERSIONS
004: INSTALLED ARE TO BE ADDED UP
004: ===========================================================================================================================
004: MODEL POINTS TOTAL CODE SPECIALEQUIPMENT POINTS TOTAL
004: 169.006 190 416 PANORAMIC GLASS ROOF 2
004: 169.007 194 417 LAMELLAROOF 2
004: 169.008 194 426 CVT AUTOMATIC TRANS. 8 = 007/008/034/307/308/334
004: 169.031 166 426 CVT AUTOMATIC TRANSM. 11 = 006/033/306/333
004: 169.032 168 426 CVT AUTOMATIC TRANSMISSION 12 = 032/332
004: 169.033 171 426 CVT AUTOMATIC TRANSMISSION 13 = 031/331
004: 169.034 180 474 PARTICULATE FILTER 1
004: 169.306 187 484 MORE GROUND CLEARANCE 5
004: 169.307 191 525 RADIO 1
004: 169.308 191 527/529/530 COMAND 1
004: 169.331 163 494 USA VERSION 1
004: 169.332 165 450 TAXI 1
004: 169.333 168 614-618 BI-XENON 1
004: 169.334 177 673 BATTERY WITH HIGHER CAPACITY 1
004: 819 CD-CHANGER 1
004: 873 HEATED. SEAT 1
004: U57 EASY-VARIO 1
004: U64 DUAL OPERATION 3
004: 550+426 TRAILERCOUPLING 1 = 006/007/008/033/034
004: 550+426 TRAILERCOUPLING 1 = 306/307/308/333/334
004: 580/581 A/C SYSTEM 3 = 006/007/031/032/033
004: 580/581 A/C SYSTEM 3 = 306/307/331/332/333
004: 580/581 A/C SYSTEM 4 = 008/034/308/334
004: FRONT. SPRING TABLE
004: POINTS TOTAL....
004: S.SERIES LG. GRND S. SUSPENSION FR. SPRING
004: CLEAR.484 486/M640+M013+410
004: -176 169 321 38 04
004: 177-183 169 321 23 04
004: 184-191 169 321 24 04
004: 192-199 169 321 25 04
004: 200-207 169 321 26 04
004: 208-216 169 321 27 04
004: 217-250 169 321 28 04
004:
004: -188 169 321 06 04
004: 189-197 169 321 08 04
004: 198-205 169 321 09 04
004: 206-214 169 321 10 04
004: 215-250 169 321 11 04
004: -179 169 321 39 04
004: 180-187 169 321 16 04
004: 188-196 169 321 17 04
004: 197-205 169 321 18 04
004: 206-214 169 321 19 04
004: 215-250 169 321 20 04
004: ------------------------------------------------------------------------------------------------------------------------------
005: CAUTION: UP TO IDENT. NO. J 336437 REPLACE AS PAIR ONLY
QTY: 002
A1693212304 Offers

COLOR MARKING: 1 X WHITE
002: NOTE SERVICE INFORMATION IN WIS WIS-NET#BT32.25-P-0003-01AK#
004: TO DETERMINE THE FRONT SPRINGS, THE POINTS IN THE TABLE BELOW FOR EACH RESPECTIVE MODEL AND THE SPECIAL VERSIONS
004: INSTALLED ARE TO BE ADDED UP
004: ===========================================================================================================================
004: MODEL POINTS TOTAL CODE SPECIALEQUIPMENT POINTS TOTAL
004: 169.006 190 416 PANORAMIC GLASS ROOF 2
004: 169.007 194 417 LAMELLAROOF 2
004: 169.008 194 426 CVT AUTOMATIC TRANS. 8 = 007/008/034/307/308/334
004: 169.031 166 426 CVT AUTOMATIC TRANSM. 11 = 006/033/306/333
004: 169.032 168 426 CVT AUTOMATIC TRANSMISSION 12 = 032/332
004: 169.033 171 426 CVT AUTOMATIC TRANSMISSION 13 = 031/331
004: 169.034 180 474 PARTICULATE FILTER 1
004: 169.306 187 484 MORE GROUND CLEARANCE 5
004: 169.307 191 525 RADIO 1
004: 169.308 191 527/529/530 COMAND 1
004: 169.331 163 494 USA VERSION 1
004: 169.332 165 450 TAXI 1
004: 169.333 168 614-618 BI-XENON 1
004: 169.334 177 673 BATTERY WITH HIGHER CAPACITY 1
004: 819 CD-CHANGER 1
004: 873 HEATED. SEAT 1
004: U57 EASY-VARIO 1
004: U64 DUAL OPERATION 3
004: 550+426 TRAILERCOUPLING 1 = 006/007/008/033/034
004: 550+426 TRAILERCOUPLING 1 = 306/307/308/333/334
004: 580/581 A/C SYSTEM 3 = 006/007/031/032/033
004: 580/581 A/C SYSTEM 3 = 306/307/331/332/333
004: 580/581 A/C SYSTEM 4 = 008/034/308/334
004: FRONT. SPRING TABLE
004: POINTS TOTAL....
004: S.SERIES LG. GRND S. SUSPENSION FR. SPRING
004: CLEAR.484 486/M640+M013+410
004: -176 169 321 38 04
004: 177-183 169 321 23 04
004: 184-191 169 321 24 04
004: 192-199 169 321 25 04
004: 200-207 169 321 26 04
004: 208-216 169 321 27 04
004: 217-250 169 321 28 04
004:
004: -188 169 321 06 04
004: 189-197 169 321 08 04
004: 198-205 169 321 09 04
004: 206-214 169 321 10 04
004: 215-250 169 321 11 04
004: -179 169 321 39 04
004: 180-187 169 321 16 04
004: 188-196 169 321 17 04
004: 197-205 169 321 18 04
004: 206-214 169 321 19 04
004: 215-250 169 321 20 04
004: ------------------------------------------------------------------------------------------------------------------------------
005: CAUTION: UP TO IDENT. NO. J 336437 REPLACE AS PAIR ONLY
QTY: 002
A1693212404 Offers

COLOR MARKING: 2 X WHITE
002: NOTE SERVICE INFORMATION IN WIS WIS-NET#BT32.25-P-0003-01AK#
004: TO DETERMINE THE FRONT SPRINGS, THE POINTS IN THE TABLE BELOW FOR EACH RESPECTIVE MODEL AND THE SPECIAL VERSIONS
004: INSTALLED ARE TO BE ADDED UP
004: ===========================================================================================================================
004: MODEL POINTS TOTAL CODE SPECIALEQUIPMENT POINTS TOTAL
004: 169.006 190 416 PANORAMIC GLASS ROOF 2
004: 169.007 194 417 LAMELLAROOF 2
004: 169.008 194 426 CVT AUTOMATIC TRANS. 8 = 007/008/034/307/308/334
004: 169.031 166 426 CVT AUTOMATIC TRANSM. 11 = 006/033/306/333
004: 169.032 168 426 CVT AUTOMATIC TRANSMISSION 12 = 032/332
004: 169.033 171 426 CVT AUTOMATIC TRANSMISSION 13 = 031/331
004: 169.034 180 474 PARTICULATE FILTER 1
004: 169.306 187 484 MORE GROUND CLEARANCE 5
004: 169.307 191 525 RADIO 1
004: 169.308 191 527/529/530 COMAND 1
004: 169.331 163 494 USA VERSION 1
004: 169.332 165 450 TAXI 1
004: 169.333 168 614-618 BI-XENON 1
004: 169.334 177 673 BATTERY WITH HIGHER CAPACITY 1
004: 819 CD-CHANGER 1
004: 873 HEATED. SEAT 1
004: U57 EASY-VARIO 1
004: U64 DUAL OPERATION 3
004: 550+426 TRAILERCOUPLING 1 = 006/007/008/033/034
004: 550+426 TRAILERCOUPLING 1 = 306/307/308/333/334
004: 580/581 A/C SYSTEM 3 = 006/007/031/032/033
004: 580/581 A/C SYSTEM 3 = 306/307/331/332/333
004: 580/581 A/C SYSTEM 4 = 008/034/308/334
004: FRONT. SPRING TABLE
004: POINTS TOTAL....
004: S.SERIES LG. GRND S. SUSPENSION FR. SPRING
004: CLEAR.484 486/M640+M013+410
004: -176 169 321 38 04
004: 177-183 169 321 23 04
004: 184-191 169 321 24 04
004: 192-199 169 321 25 04
004: 200-207 169 321 26 04
004: 208-216 169 321 27 04
004: 217-250 169 321 28 04
004:
004: -188 169 321 06 04
004: 189-197 169 321 08 04
004: 198-205 169 321 09 04
004: 206-214 169 321 10 04
004: 215-250 169 321 11 04
004: -179 169 321 39 04
004: 180-187 169 321 16 04
004: 188-196 169 321 17 04
004: 197-205 169 321 18 04
004: 206-214 169 321 19 04
004: 215-250 169 321 20 04
004: ------------------------------------------------------------------------------------------------------------------------------
005: CAUTION: UP TO IDENT. NO. J 336437 REPLACE AS PAIR ONLY
QTY: 002
A1693212504 Offers

COLOR MARKING: 3 X WHITE
002: NOTE SERVICE INFORMATION IN WIS WIS-NET#BT32.25-P-0003-01AK#
004: TO DETERMINE THE FRONT SPRINGS, THE POINTS IN THE TABLE BELOW FOR EACH RESPECTIVE MODEL AND THE SPECIAL VERSIONS
004: INSTALLED ARE TO BE ADDED UP
004: ===========================================================================================================================
004: MODEL POINTS TOTAL CODE SPECIALEQUIPMENT POINTS TOTAL
004: 169.006 190 416 PANORAMIC GLASS ROOF 2
004: 169.007 194 417 LAMELLAROOF 2
004: 169.008 194 426 CVT AUTOMATIC TRANS. 8 = 007/008/034/307/308/334
004: 169.031 166 426 CVT AUTOMATIC TRANSM. 11 = 006/033/306/333
004: 169.032 168 426 CVT AUTOMATIC TRANSMISSION 12 = 032/332
004: 169.033 171 426 CVT AUTOMATIC TRANSMISSION 13 = 031/331
004: 169.034 180 474 PARTICULATE FILTER 1
004: 169.306 187 484 MORE GROUND CLEARANCE 5
004: 169.307 191 525 RADIO 1
004: 169.308 191 527/529/530 COMAND 1
004: 169.331 163 494 USA VERSION 1
004: 169.332 165 450 TAXI 1
004: 169.333 168 614-618 BI-XENON 1
004: 169.334 177 673 BATTERY WITH HIGHER CAPACITY 1
004: 819 CD-CHANGER 1
004: 873 HEATED. SEAT 1
004: U57 EASY-VARIO 1
004: U64 DUAL OPERATION 3
004: 550+426 TRAILERCOUPLING 1 = 006/007/008/033/034
004: 550+426 TRAILERCOUPLING 1 = 306/307/308/333/334
004: 580/581 A/C SYSTEM 3 = 006/007/031/032/033
004: 580/581 A/C SYSTEM 3 = 306/307/331/332/333
004: 580/581 A/C SYSTEM 4 = 008/034/308/334
004: FRONT. SPRING TABLE
004: POINTS TOTAL....
004: S.SERIES LG. GRND S. SUSPENSION FR. SPRING
004: CLEAR.484 486/M640+M013+410
004: -176 169 321 38 04
004: 177-183 169 321 23 04
004: 184-191 169 321 24 04
004: 192-199 169 321 25 04
004: 200-207 169 321 26 04
004: 208-216 169 321 27 04
004: 217-250 169 321 28 04
004:
004: -188 169 321 06 04
004: 189-197 169 321 08 04
004: 198-205 169 321 09 04
004: 206-214 169 321 10 04
004: 215-250 169 321 11 04
004: -179 169 321 39 04
004: 180-187 169 321 16 04
004: 188-196 169 321 17 04
004: 197-205 169 321 18 04
004: 206-214 169 321 19 04
004: 215-250 169 321 20 04
004: ------------------------------------------------------------------------------------------------------------------------------
005: CAUTION: UP TO IDENT. NO. J 336437 REPLACE AS PAIR ONLY
QTY: 002
A1693212704 Offers

COLOR MARKING: 5 X WHITE
002: NOTE SERVICE INFORMATION IN WIS WIS-NET#BT32.25-P-0003-01AK#
004: TO DETERMINE THE FRONT SPRINGS, THE POINTS IN THE TABLE BELOW FOR EACH RESPECTIVE MODEL AND THE SPECIAL VERSIONS
004: INSTALLED ARE TO BE ADDED UP
004: ===========================================================================================================================
004: MODEL POINTS TOTAL CODE SPECIALEQUIPMENT POINTS TOTAL
004: 169.006 190 416 PANORAMIC GLASS ROOF 2
004: 169.007 194 417 LAMELLAROOF 2
004: 169.008 194 426 CVT AUTOMATIC TRANS. 8 = 007/008/034/307/308/334
004: 169.031 166 426 CVT AUTOMATIC TRANSM. 11 = 006/033/306/333
004: 169.032 168 426 CVT AUTOMATIC TRANSMISSION 12 = 032/332
004: 169.033 171 426 CVT AUTOMATIC TRANSMISSION 13 = 031/331
004: 169.034 180 474 PARTICULATE FILTER 1
004: 169.306 187 484 MORE GROUND CLEARANCE 5
004: 169.307 191 525 RADIO 1
004: 169.308 191 527/529/530 COMAND 1
004: 169.331 163 494 USA VERSION 1
004: 169.332 165 450 TAXI 1
004: 169.333 168 614-618 BI-XENON 1
004: 169.334 177 673 BATTERY WITH HIGHER CAPACITY 1
004: 819 CD-CHANGER 1
004: 873 HEATED. SEAT 1
004: U57 EASY-VARIO 1
004: U64 DUAL OPERATION 3
004: 550+426 TRAILERCOUPLING 1 = 006/007/008/033/034
004: 550+426 TRAILERCOUPLING 1 = 306/307/308/333/334
004: 580/581 A/C SYSTEM 3 = 006/007/031/032/033
004: 580/581 A/C SYSTEM 3 = 306/307/331/332/333
004: 580/581 A/C SYSTEM 4 = 008/034/308/334
004: FRONT. SPRING TABLE
004: POINTS TOTAL....
004: S.SERIES LG. GRND S. SUSPENSION FR. SPRING
004: CLEAR.484 486/M640+M013+410
004: -176 169 321 38 04
004: 177-183 169 321 23 04
004: 184-191 169 321 24 04
004: 192-199 169 321 25 04
004: 200-207 169 321 26 04
004: 208-216 169 321 27 04
004: 217-250 169 321 28 04
004:
004: -188 169 321 06 04
004: 189-197 169 321 08 04
004: 198-205 169 321 09 04
004: 206-214 169 321 10 04
004: 215-250 169 321 11 04
004: -179 169 321 39 04
004: 180-187 169 321 16 04
004: 188-196 169 321 17 04
004: 197-205 169 321 18 04
004: 206-214 169 321 19 04
004: 215-250 169 321 20 04
004: ------------------------------------------------------------------------------------------------------------------------------
005: CAUTION: UP TO IDENT. NO. J 336437 REPLACE AS PAIR ONLY
QTY: 002
A1693200073 Offers

SHOCK ABSORBER
QTY: 002
A1693230392 Offers

SHOCK ABSORBER
QTY: 002
A0029905550 Offers

SHOCK ABSORBER
M14X1.5
QTY: 002
N910105008008 Offers

SPRING STRUT TO BODY
M8X16
QTY: 006
N000000005261 Offers

SPRING STRUT TO BODY
M8X16
Replaced by N910105008008
QTY: 006
A1693220087 Offers

SPRING DOME
QTY: 002

Front suspension strut

Assembly diagrams

Parts

Catalog

More

Contact us
