Dashboard, center console

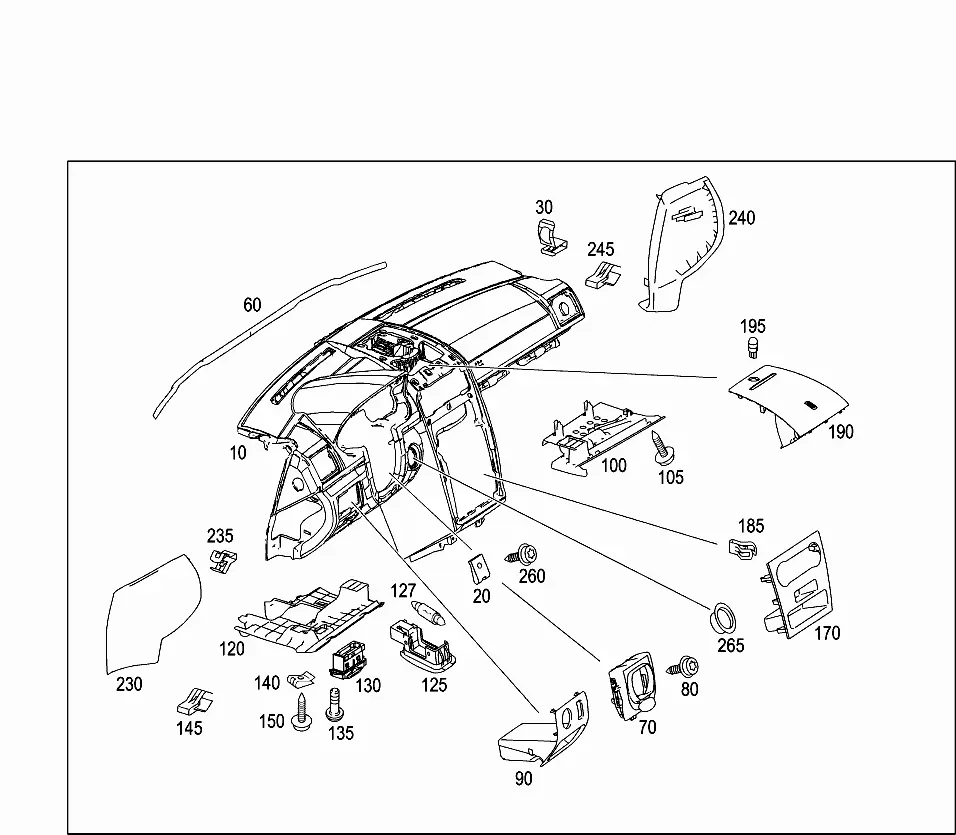

Instrument panel

Assembly diagrams

3 diagrams

Parts

20 parts
  • A1696800787 Offers

    Version: L

    QTY: 001

  • A16968007879D84 Offers

    900: 9D84 311A/411A/611A/721A/751A/801A

    900: QFT169A3000 BLACK

    Version: L

    QTY: 001

  • A1696804436 Offers

    BELOW INSTRUMENT PANEL, CO-DRIVER'S SIDE

    003: From Chassis: J 530922

    003: From Date: 10.09.2007

    Except for the model year808

    Version: L

    QTY: 001

  • A1696800039 Offers

    BELOW INSTRUMENT PANEL,LEFT

    Version: L

    QTY: 001

  • A2025402373 Offers

    AT COVERING

    QTY: 001

  • A0009949345 Offers

    RELEASE, ENGINE HOOD

    QTY: 001

  • A1696890022 Offers

    AT COVERING

    QTY: 001

    or

    MOUNTING, COVER

    QTY: 006

    or

    COVER ATTACHMENT

    QTY: 002

    or

    COVER ATTACHMENT

    QTY: 001

  • N000000000888 Offers

    MOUNTING, COVER

    4.2X19

    QTY: 002

  • A1696802339 Offers

    RADIO SLOT

    QTY: 001

  • A2029940245 Offers

    MOUNTING, FOOTWELL COVER DRIVER SIDE

    4,2

    QTY: 002

    or

    MOUNTING OF INSTRUMENT PANEL

    4,2

    QTY: 006

    or

    TUNNEL COVERING

    4,2

    QTY: 002

    or

    MOUNTING, GLOVE COMPARTMENT

    4,2

    QTY: 005

    or

    RELEASE, ENGINE HOOD

    4,2

    Replaced by A 0009949345

    QTY: 001

  • A16968001789051 Offers

    LATERAL LEFT

    905: 9051 311A/611A/411A/721A/801A/751A

    905: QFT169A3003 BLACK

    Version: L

    QTY: 001

  • A16968002789051 Offers

    LATERAL RIGHT

    905: 9051 311A/611A/411A/721A/801A/751A

    905: QFT169A3003 BLACK

    Version: L

    QTY: 001

  • N000000000925 Offers

    INSTRUMENT PANEL TO CROSS MEMBER

    4.8X19

    QTY: 005

  • A20868004657C45 Offers

    STEERING LOCK

    906: 7C45

    906: QFT169A3014 DEEP GREY

    QTY: 001

  • A0129886478 Offers

    MOUNTING, PANELING TO A-PILLAR

    QTY: 004

  • A1696890098 Offers

    CROSS MEMBER BELOW WINDSHIELD

    QTY: 001

  • A16946000959051 Offers

    STEERING COLUMN ADJUSTMENT

    903: 9051 311A/315A/611A

    903: QFT169A4513 BLACK

    QTY: 001

  • A1694600095 Offers

    STEERING COLUMN ADJUSTMENT

    QTY: 001

  • A0019845829 Offers

    MOUNTING, COVER

    4X16

    QTY: 003

    or

    MOUNTING, COVER

    4X16

    QTY: 002

    or

    BRACKET MOUNTING

    4X16

    QTY: 002

  • A1696803765 Offers

    LIGHT RANGE ADJUSTER AND FOGLAMP

    003: From Chassis: J 530922

    003: From Date: 10.09.2007

    Except for the model year808

    Version: L

    QTY: 001
