Cylinder block

Cylinder block

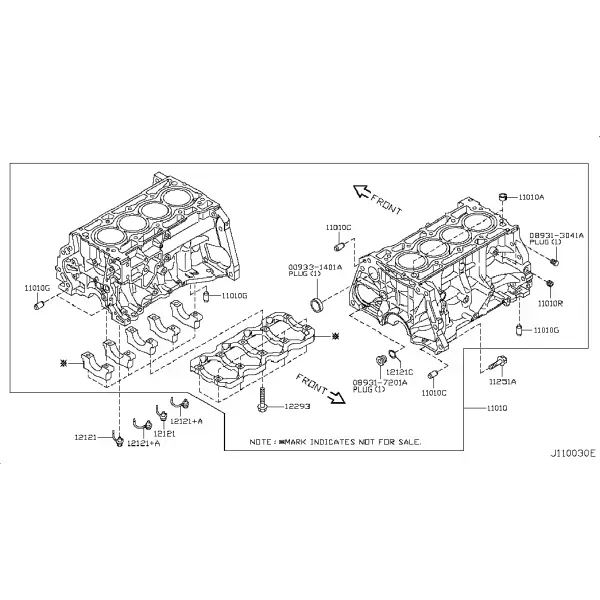

Assembly diagrams

2 diagrams

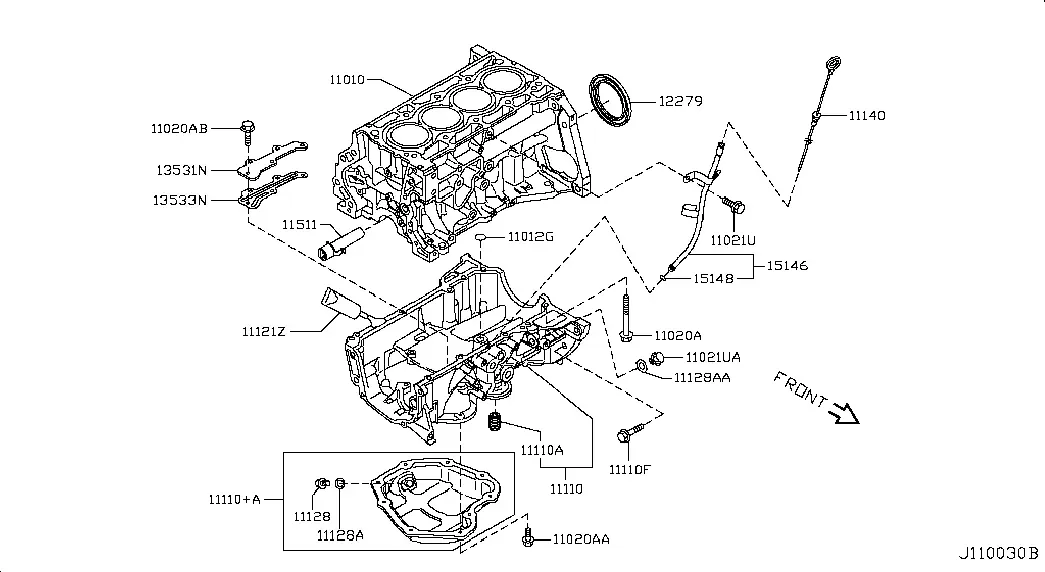

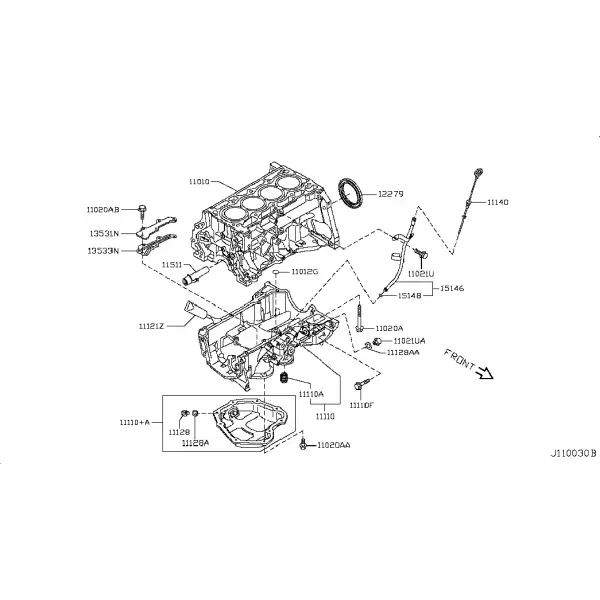

Cylinder block diagram

Parts

21 parts

Cylinder block
11000BV80A Offers

× 1
O-ring
1506631U00 Offers

× 1
Flange bolt
01125E8151 Offers

× 1
Bolt
01125E6011 Offers

× 1
Drive cover bolt
01125E6021 Offers

× 1
Bolt
11190JD20B Offers

× 1
Oil pan assembly
11110BV80A Offers

× 1
Oil filter stud
1521331U00 Offers

× 1
Oil pan assembly
111101KC0B Offers

× 1
Drain plug
31377EN21A Offers

× 1
Герметик
KP71000150 Offers

× 1
Oil drain plug
1112801M00 Offers

× 1
Drain plug washer
1102601M02 Offers

× 1
Drain plug washer
11026JD20A Offers

× 1
Oil dipstick
11140BV80A Offers

× 1
Cylinder block heater
110011FK0A Offers

× 1
Rear crankshaft oil seal
122793VA0A Offers

× 1
Oil gallery cover
13531BV80A Offers

× 1
Oil gallery gasket
13533BV80A Offers

× 1
Oil dipstick guide
111501KC0A Offers

× 1
Oil level sensor guide seal
150664W000 Offers

× 1
