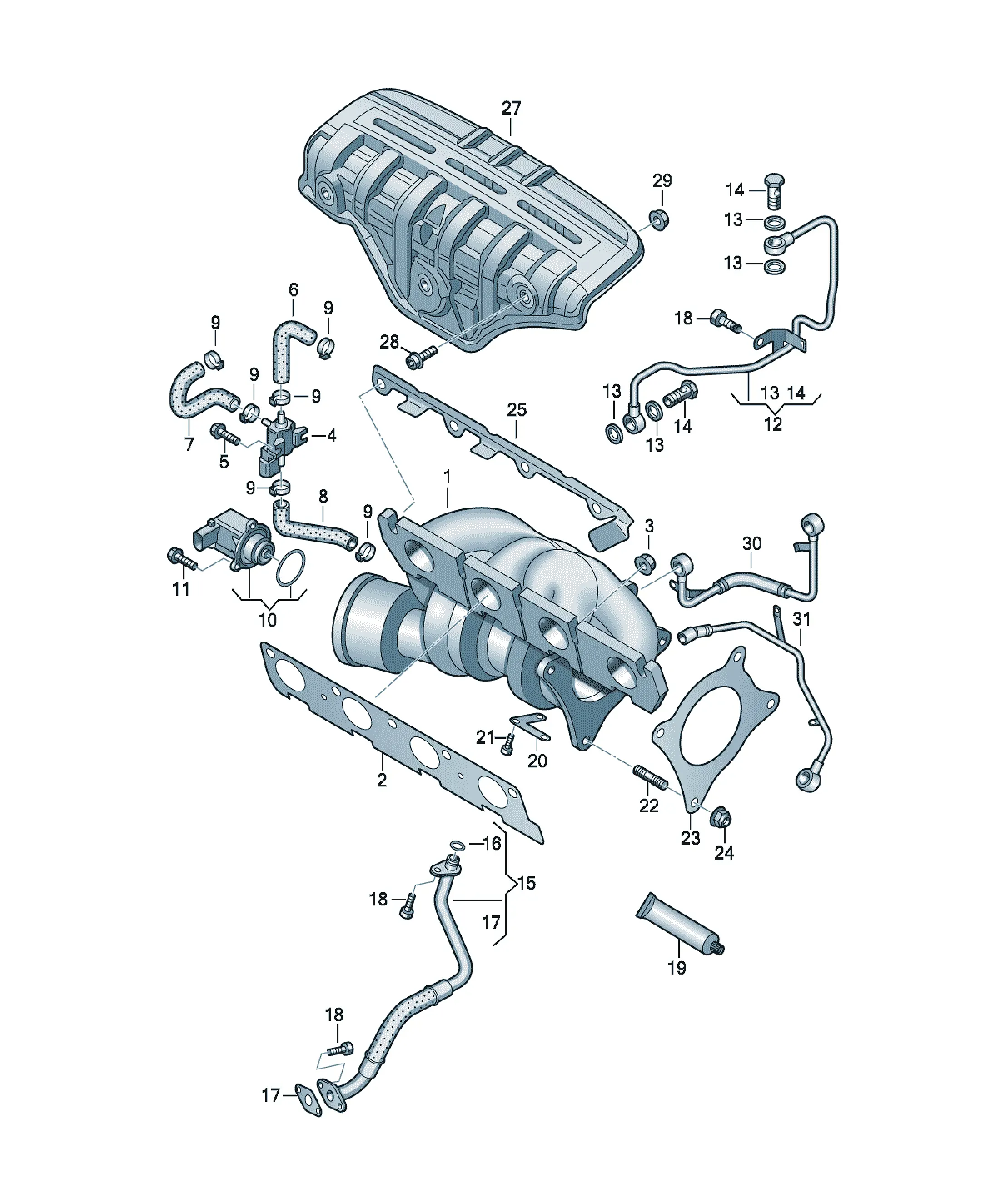

Exhaust manifold with turbocharger

[Name] [Note] [QTY]

Spring band clamp 27X12 X

[Name] [Note] [QTY]

Threaded pin M8X22 2

additionally to be used items: 3

[Name] [Note] [QTY]

double collared stud M6X16/M6X12 2

[Name] [Note] [QTY]

Exhaust manifold with turbo- charger BORGWARNER 1

Old part

03C145701B Exhaust manifold with turbo- charger 1

Labelled with part number

03C145701K Exhaust manifold with turbo- charger 1

Labelled with part number

03C145701T Exhaust manifold with turbo- charger 1

Labelled with part number

03C145702B Exhaust manifold with turbo- charger 1

Labelled with part number

03C145702P Exhaust manifold with turbo- charger 1

Labelled with part number

03C145703A Exhaust manifold with turbo- charger 1

Labelled with part number

[Name] [Note] [QTY]

Exhaust manifold with turbo- charger BORGWARNER 1

Exchange program parts: 03C145702PX

[Name] [QTY]

cut-off valve 1

mating connector

1J0973722A Flat contact housing with contact locking mechanism 2 pin 1

black

[Name] [Note] [QTY]

Round-head screw with inner hexagon socket head M6X20 1

[Name] [Note] [QTY]

oil pipe feed 1

[Name] [Note] [QTY]

seal ring 12X17 4

[Name] [Note] [QTY]

Banjo bolt M12 2

[Name] [Note] [QTY]

oil pipe return 1

[Name] [Note] [QTY]

seal ring 15X2 1

[Name] [QTY]

Seal 1

[Name] [Note] [QTY]

Hexagon bolt M6X10 3

[Name] [Note] [QTY]

hot-bolt-paste 170G 1

[Name] [QTY]

Seal 1

[Name] [QTY]

Retaining bar 1

[Name] [Note] [QTY]

Hexagon bolt M8X16 1

[Name] [Note] [QTY]

Threaded pin M8X27,5 4

[Name] [QTY]

Seal 1

[Name] [Note] [QTY]

Hexagon collar nut self-locking M8 1

[Name] [Note] [QTY]

Bracket upper 1

[Name] [Note] [QTY]

Bracket lower 1

[Name] [QTY]

warm air deflector plate 1

[Name] [Note] [QTY]

Oval socket head bolt with hex drive M6X16 3

[Name] [Note] [QTY]

Hexagon collar nut M6 2

[Name] [Note] [QTY]

hexagon nut, self-locking M8 9

[Name] [Note] [QTY]

(Ex.gas turboc.> coolant pipe) feed 1

see illustration: 121-014

[Name] [Note] [QTY]

(Ex.gas turboc.> coolant pipe) return 1

see illustration: 121-014

[Name] [QTY]

Solenoid valve 1

mating connector

1J0973722 Flat contact housing with contact locking mechanism 2 pin 1

black

[Name] [Note] [QTY]

Round-head screw with inner hexagon socket head M6X20 1

[Name] [QTY]

Hose 1

[Name] [QTY]

Hose 1

[Name] [QTY]

Hose 1

[Name] [Note] [QTY]

Spring band clamp 11,5X8,4 X
