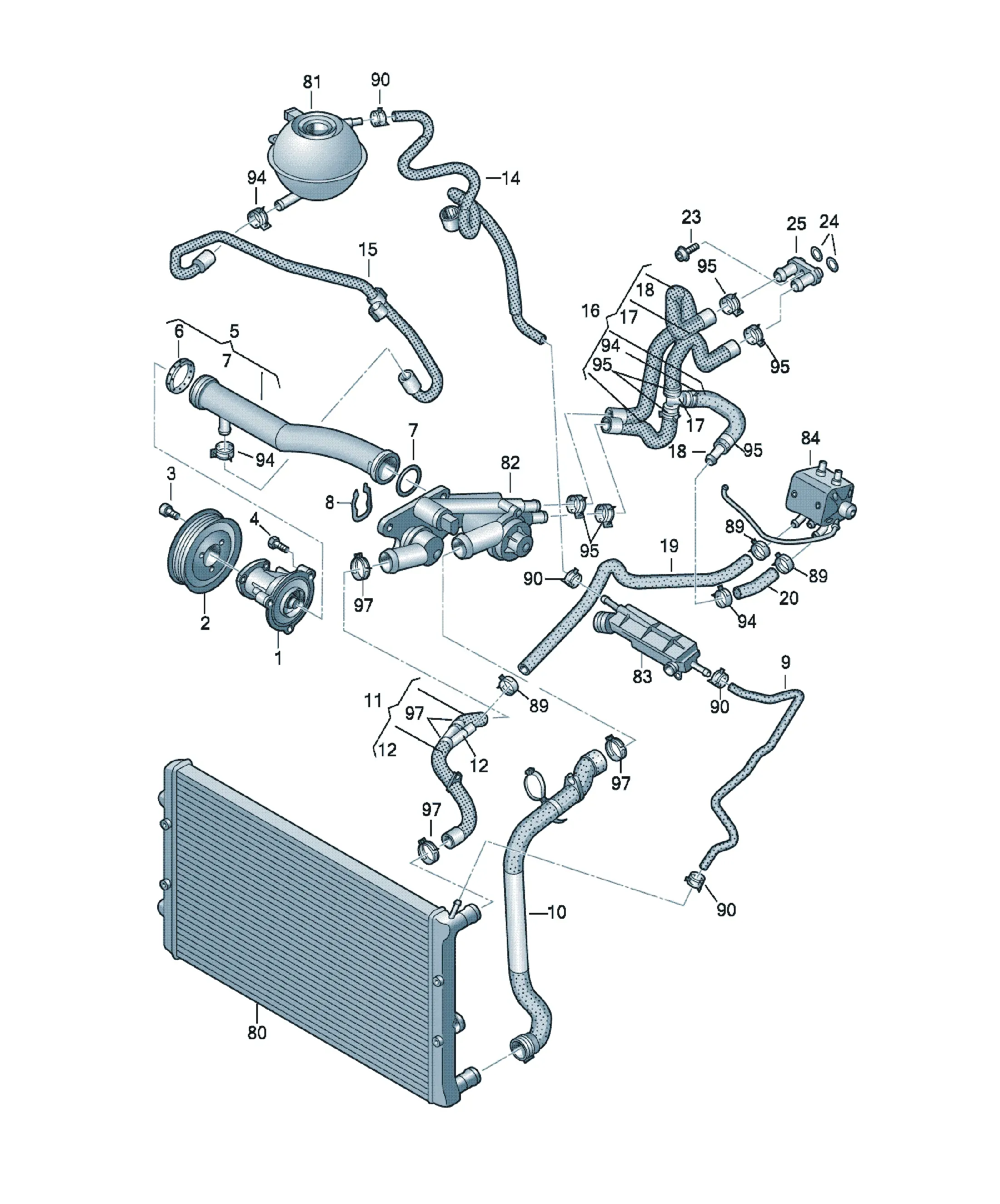

Cooling system

[Name] [QTY]

Coolant pump with glued in sealing ring 1

Old part

03C121005D Coolant pump with glued in sealing ring 1

03C121005K Coolant pump with glued in sealing ring 1

03C121005L Coolant pump with glued in sealing ring 1

03C121005S Coolant pump with glued in sealing ring 1

03C121008C Coolant pump with glued in sealing ring 1

03C121008F Coolant pump with glued in sealing ring 1

03C121008J Coolant pump with glued in sealing ring 1

[Name] [QTY]

Coolant pump with glued in sealing ring 1

[Name] [QTY]

Coolant hose 1

[Name] [Note] [QTY]

Coolant hose feed 1

[Name] [QTY]

Distributor 1

[Name] [QTY]

Coolant hose 1

[Name] [QTY]

Coolant hose 1

D >> - 04.11.2013

[Name] [QTY]

Coolant hose 1

(Expansion tank > coolant pipe)

D - 04.11.2013>>

[Name] [Note] [Model info] [QTY]

Coolant hose feed/return PR:D3H 1

[Name] [Note] [Model info] [QTY]

Coolant hose feed/return PR:DP1 1

[Name] [Note] [QTY]

t-piece 20X16X20 2

[Name] [QTY]

Connector union 1

[Name] [Note] [QTY]

Coolant hose 1

contains: N 104 787 01

[Name] [QTY]

v-belt pulley 1

[Name] [QTY]

Coolant hose 1

[Name] [Note] [QTY]

Socket head bolt with inner multipoint head M8X30 1

[Name] [Note] [QTY]

O-ring 17,12X2,62 2

[Name] [QTY]

Coolant pipe 1

heat exchanger

[Name] [Note] [QTY]

Socket head collared bolt with inner multipoint head M8X12 3

[Name] [Note] [QTY]

round hd. screw M6X35 4

[Name] [QTY]

Coolant pipe 1

[Name] [QTY]

Coolant regulator housing 1

[Name] [Note] [QTY]

Coolant pipe 1

Alternative installation: 03C.121.065.K

[Name] [Note] [QTY]

O-ring 35,0X6,0 1

[Name] [Note] [QTY]

O-ring 35,0X6,0 1

[Name] [QTY]

retaining spring 1

[Name] [Note]

Cooler for coolant

see illustration, item: 121-079,30

[Name] [Note]

Reservoir

see illustration, item: 121-079,20

[Name] [Note]

Coolant regulator housing with thermostat

see illustration, item: 121-079,1

[Name] [QTY]

heater pipe 1

[Name] [Note]

evaporator

see illustration, item: 133-042,1

[Name] [Note] [QTY]

Spring band clamp 21X12 2

[Name] [QTY]

Coolant hose 1

[Name] [Note] [QTY]

Spring band clamp 14X12 X

[Name] [Note] [QTY]

Spring band clamp 23X12 X

[Name] [Note] [QTY]

Spring band clamp 27X12 X

[Name] [Note] [QTY]

Spring band clamp 40X12 X
