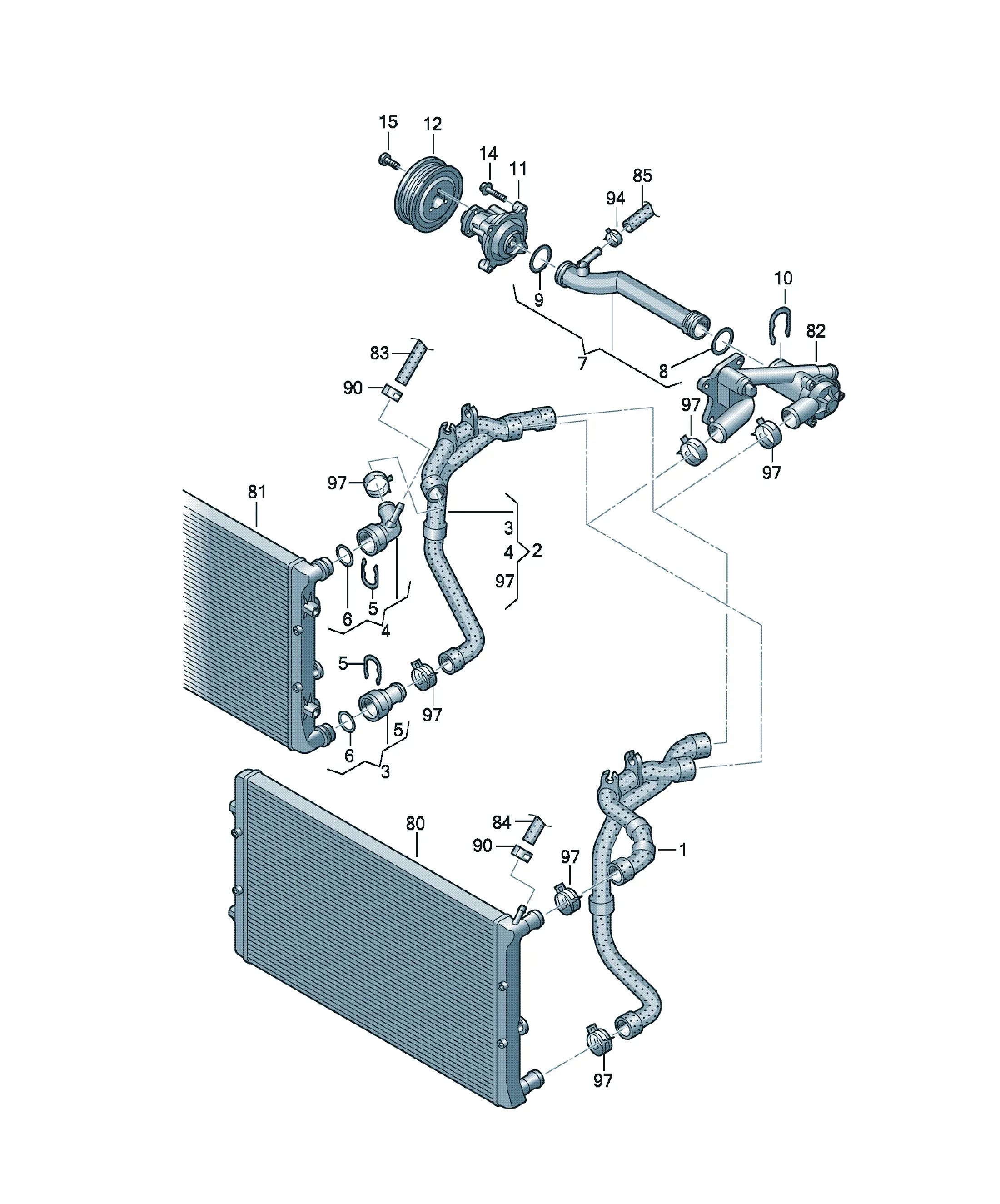

Cooling system

[Name] [Note] [QTY]

Coolant hose feed/return 1

for vehicle use in cold and moderate climates

and

for vehicles with air condit.

[Name] [Note] [QTY]

Coolant hose feed/return 1

for models with towing attachment and used in cold and moderate climates

and

for vehicles with no air conditioning system

[Name] [Note] [QTY]

Coolant hose feed/return 1

for vehicle use in warm climates

[Name] [QTY]

retaining spring 1

[Name] [QTY]

Coolant pump with glued in sealing ring 1

[Name] [QTY]

Coolant pump with glued in sealing ring 1

Old part

03D121005 Coolant pump with glued in sealing ring 1

03D121013B Coolant pump 1

[Name] [QTY]

v-belt pulley 1

[Name] [Note] [QTY]

Socket head bolt M8X37 4

[Name] [Note] [QTY]

Socket head bolt with inner multipoint head M8X11 3

[Name] [Note] [QTY]

Coolant hose with quick release coupling feed/return 1

for vehicles without trailer operation and vehicle use in cold and mild climate zones

and

for vehicles with no air conditioning system

[Name] [QTY]

Quick acting coupling 1

for vehicles without trailer operation and vehicle use in cold and mild climate zones

and

for vehicles with no air conditioning system

Items supplied

Quick acting coupling 1

WHT009138 O-ring 32X4 NW26 1

Spring clip 1

Retaining ring 1

connection piece 1

Potential individual parts

[Name] [QTY]

Quick acting coupling 1

for vehicles without trailer operation and vehicle use in cold and mild climate zones

and

for vehicles with no air conditioning system

[Name] [Note] [QTY]

retaining spring 32MM 2

for vehicles without trailer operation and vehicle use in cold and mild climate zones

and

for vehicles with no air conditioning system

[Name] [Note] [QTY]

O-ring 32X4 1

for vehicles without trailer operation and vehicle use in cold and mild climate zones

and

for vehicles with no air conditioning system

[Name] [Model info] [QTY]

Coolant pipe CGPA,CGPB 1

[Name] [Note] [QTY]

O-ring 35X3,5 1

[Name] [Note]

Cooler for coolant

see illustration, item: 121-080,31

[Name] [Note]

Cooler for coolant

see illustration, item: 121-080,30

[Name] [Note]

Coolant regulator housing

see illustration, item: 121-080,1

[Name] [Note]

Coolant hose

see illustration, item: 121-022,7

[Name] [Note]

Coolant hose

see illustration, item: 121-022,8

[Name] [Note]

Coolant hose

see illustration, item: 121-022,11

[Name] [QTY]

O-ring 1

[Name] [Note] [QTY]

Spring band clamp 14X12 X

[Name] [Note] [QTY]

Spring band clamp 23X12 X

[Name] [Note] [QTY]

Spring band clamp 40X12 X
