Cooling system pump and components

Cooling system

Assembly diagrams

13 diagrams

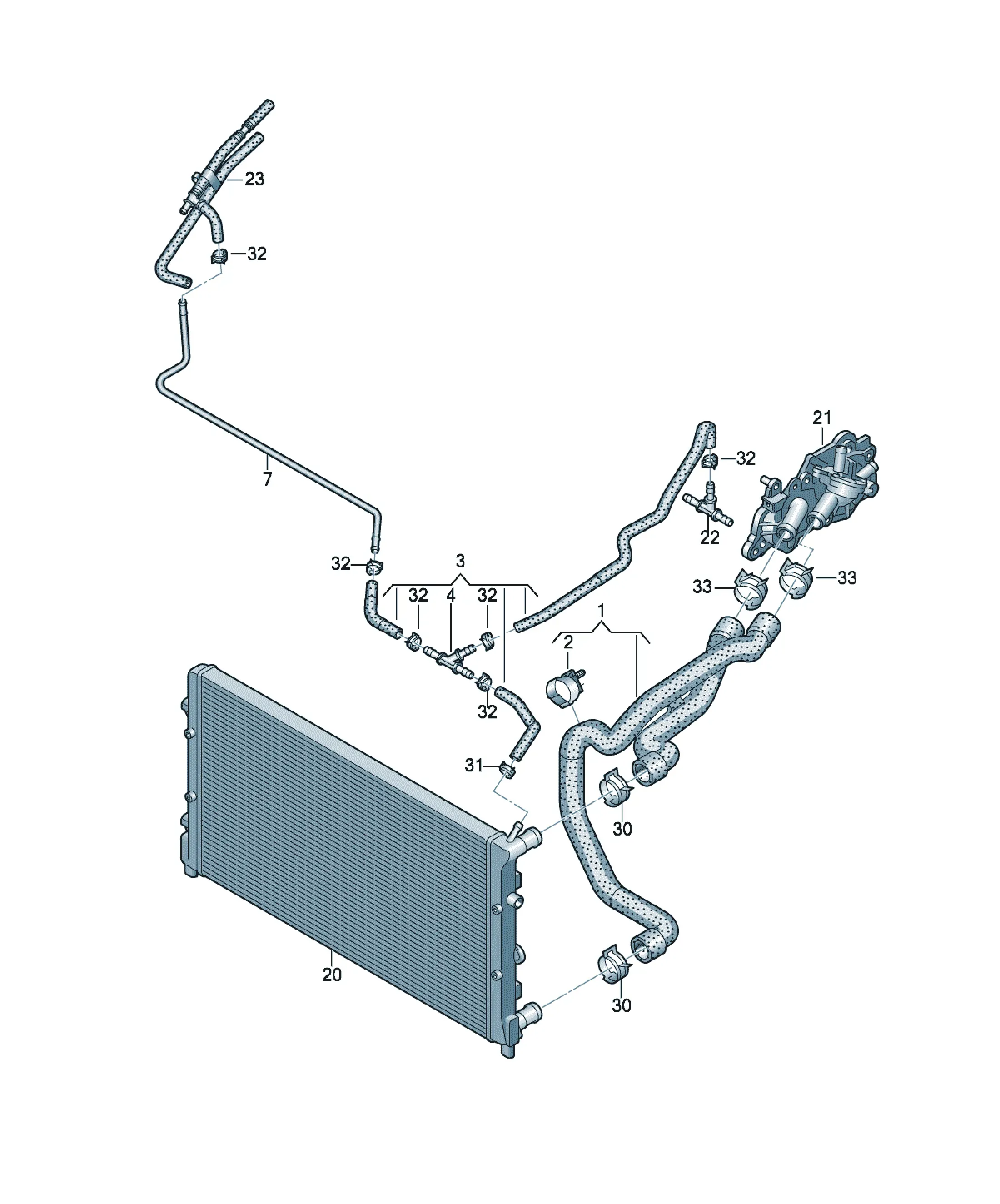

Cooling system diagram

Parts

14 parts

6R0122101CT Offers

[Name] [QTY]
Coolant hose 1
5Q0121093R Offers

[Name] [QTY]
Bracket 1
[Name] [Note] [QTY]
Cooler for coolant 1
see illustration, item: 121-078,14
[Name] [Note] [QTY]
Coolant pump 1
see illustration, item: 121-005,1
[Name] [Note] [QTY]
t-piece 1
see illustration, item: 121-011,8
[Name] [Note] [QTY]
Coolant hose 1
see illustration, item: 121-009,7
6R0122447BK Offers

[Name] [QTY]
Coolant hose 1
D >> - 13.04.2014
6R0122447BN Offers

[Name] [QTY]
Coolant hose 1
D - 14.04.2014>>
N90687201 Offers

[Name] [Note] [QTY]
Spring band clamp 40X12 1
N90686701 Offers

[Name] [Note] [QTY]
Spring band clamp 14X12 1
N90686701 Offers

[Name] [Note] [QTY]
Spring band clamp 14X12 1
N90687201 Offers

[Name] [Note] [QTY]
Spring band clamp 40X12 1
1K0121087B Offers

[Name] [Note] [QTY]
Distributor 8X8X8 1
04E121064S Offers

[Name] [QTY]
Coolant pipe 1
