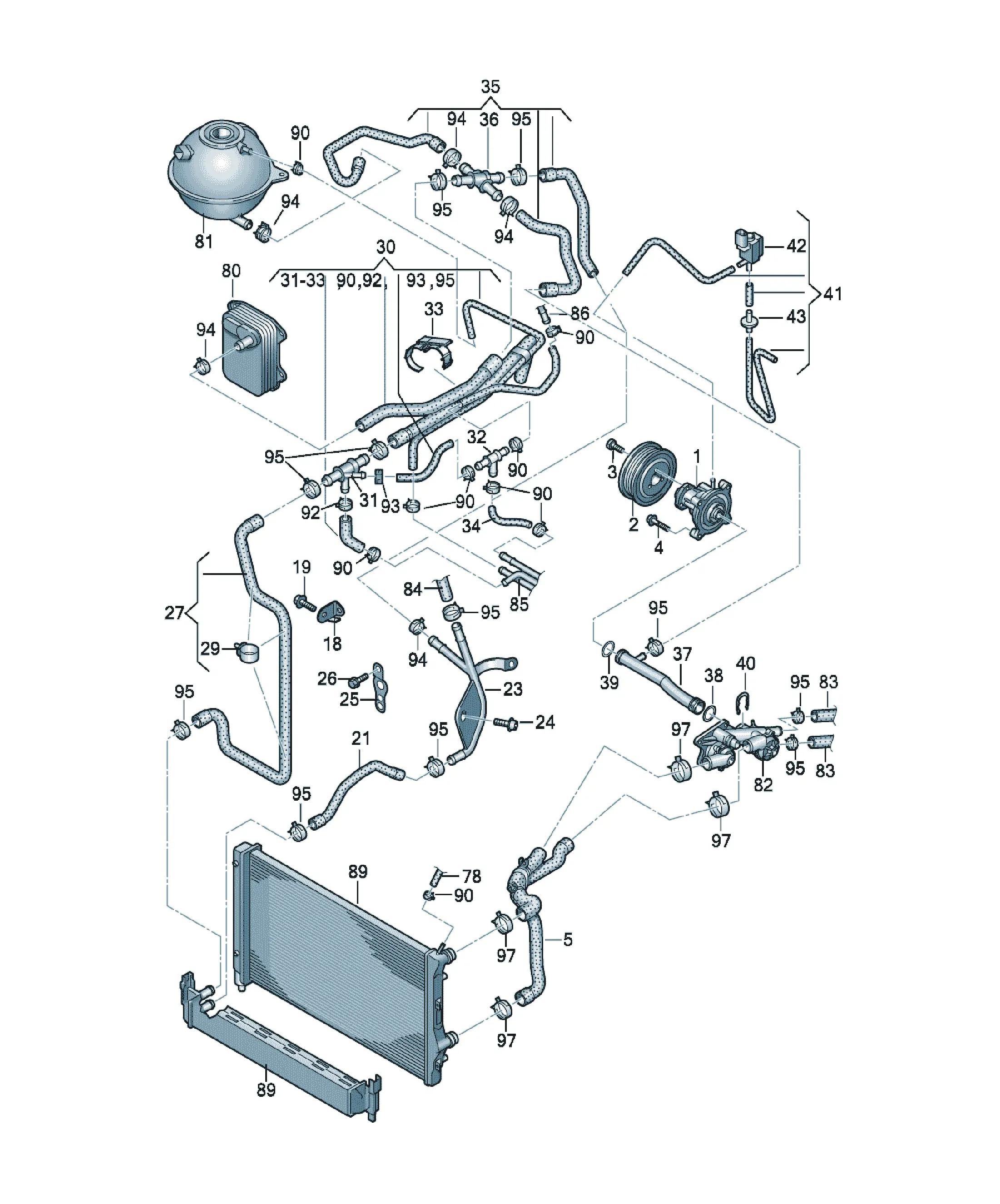

Cooling system

[Name] [QTY]

Coolant pump with glued in sealing ring 1

Exchange program parts: 03F121004EX

[Name] [Note] [QTY]

Hose bracket steel 1

[Name] [Note] [QTY]

Oval hexagon socket head bolt M6X16 1

[Name] [QTY]

v-belt pulley 1

[Name] [QTY]

Coolant hose 1

(coolant radiator>/pipe)

[Name] [Note] [QTY]

Coolant pipe plastic 1

[Name] [Note] [QTY]

hexagon head bolt (combi) M6X18 2

[Name] [QTY]

Retaining plate 1

[Name] [Note] [QTY]

hexagon head bolt (combi) M10X16 1

[Name] [QTY]

Coolant hose 1

(Distributor > coolant radiator)

[Name] [QTY]

Hose bracket 3

[Name] [Note] [QTY]

Socket head collared bolt with inner multipoint head M8X12 3

[Name] [QTY]

Coolant hose 1

[Name] [QTY]

Distributor 1

[Name]

No replacement part

[Name] [Note] [QTY]

Hose bracket 50 MM 1

[Name] [QTY]

Coolant hose 1

[Name] [QTY]

Coolant hose 1

(Expansion tank > distributor > coolant pipe)

[Name]

No replacement part

[Name] [Note] [QTY]

Coolant pipe plastic 1

[Name] [QTY]

O-ring 1

[Name] [QTY]

O-ring 1

[Name] [Note] [QTY]

Hexagon socket flat head bolt M6X25 3

[Name] [QTY]

retaining spring 1

[Name] [QTY]

Control line 1

[Name] [QTY]

Solenoid valve 1

mating connector

1J0973722 Flat contact housing with contact locking mechanism 2 pin 1

black

[Name] [QTY]

Non-return valve 1

[Name] [Model info] [QTY]

Coolant hose automatic 1

(Coolant regulator > coolant radiator

D - 08.04.2013>>

[Name] [Model info] [QTY]

Coolant hose automatic 1

(Coolant regulator > coolant radiator

D >> - 08.04.2013

[Name] [Model info] [QTY]

Coolant hose manual gearbox 1

(Coolant regulator > coolant radiator

[Name] [Note]

Coolant hose

see illustration, item: 121-017,5

[Name] [Note]

Oil cooler

see illustration, item: 115-006,13

[Name] [Note]

Reservoir

see illustration, item: 121-084,20

[Name] [Note]

Coolant regulator housing with thermostat

see illustration, item: 121-084,1

[Name] [Note]

Coolant hose

see illustration, item: 121-017,4

[Name] [Note]

Coolant hose

see illustration, item: 121-017,16

[Name] [Note]

Coolant pipe

see illustration, item: 121-017,6

[Name] [Note]

Coolant hose

see illustration, item: 121-017,14

[Name] [Note]

Cooler for coolant

see illustration, item: 121-084,30

[Name] [Note] [QTY]

Spring band clamp 14X12 X

[Name] [Note] [QTY]

Spring band clamp 17X12 1

[Name] [Note] [QTY]

Spring band clamp 19X12 X

[Name] [Note] [QTY]

Spring band clamp 23X12 1

[Name] [Note] [QTY]

Spring band clamp 27X12 X

[Name] [Note] [QTY]

Spring band clamp 40X12 1
