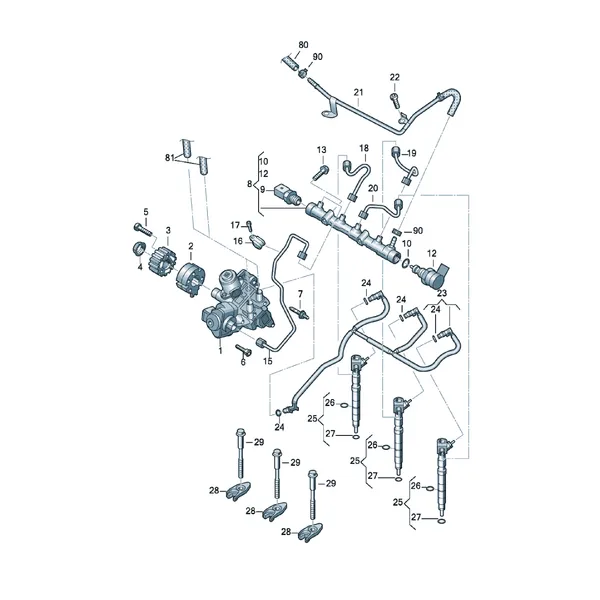

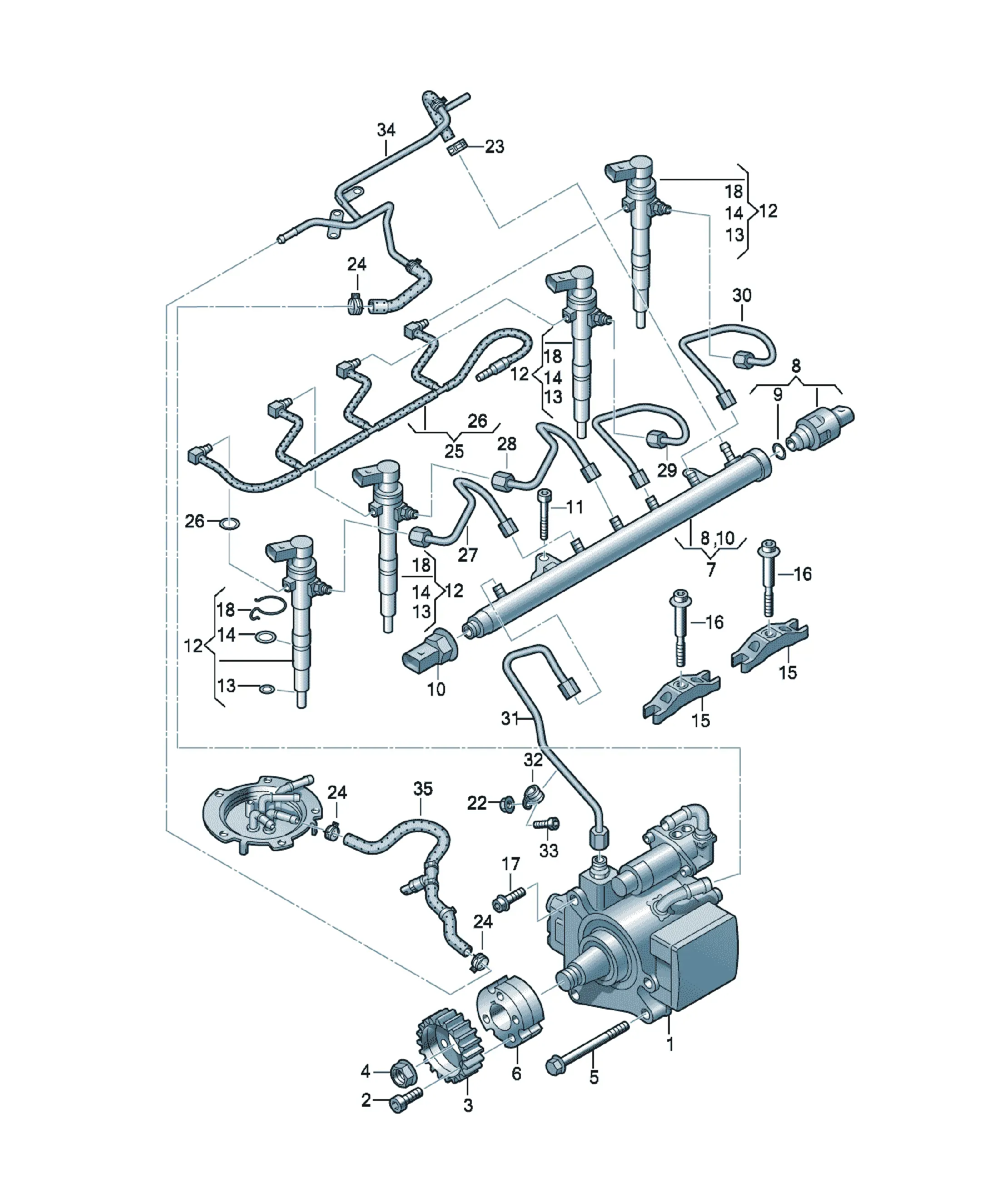

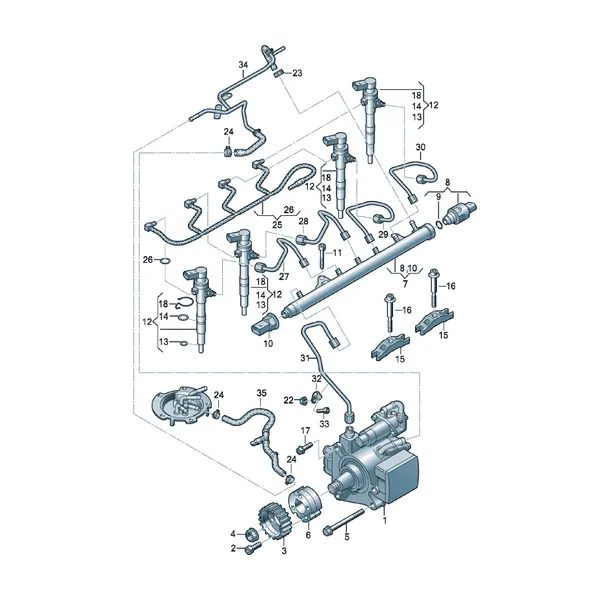

High pressure fuel system

[Name] [Model info] [QTY]

high pressure pump CAYB,CAYC 1

Exchange program parts: 03L130851MX

[Name] [Model info] [QTY]

high pressure pump CAYB,CAYC 1

Old part

03L130755AL high pressure pump

03L130755E high pressure pump

03L130755AH high pressure pump

[Name] [QTY]

high pressure pump 1

[Name] [QTY]

high pressure pump 1

Solenoid valve

Exchange program parts: 03L130851HX

[Name] [Model info] [QTY]

high pressure pump CLNA 1

mating connector

4D0971992 Flat connector housing with contact locking mechanism 2 pin 1

black/violet

[Name] [Note] [QTY]

Pressure sensor M18X1,5 1

mating connector

4D0971993 Flat connector housing with contact locking mechanism 3 pin 1

black

[Name] [Note] [QTY]

Pressure sensor M18X1,5 1

Fuel rail 2000 BAR

mating connector

4D0971993 Flat connector housing with contact locking mechanism 3 pin 1

black

[Name] [Note] [QTY]

Socket head bolt with inner multipoint head M8X70 2

[Name] [QTY]

Injector unit 4

Exchange program parts: 03L130855CX

[Name] [QTY]

Injector unit 4

Exchange program parts: 03L130277SX

[Name] [QTY]

Injector unit 4

Old part

03L130277J Injector unit 1

Labelled with part number

[Name] [QTY]

seal ring 1

Injector unit

[Name] [QTY]

seal ring 4

[Name] [Note] [QTY]

O-ring 16,2X1,5 4

[Name] [QTY]

Clamping piece 2

[Name] [QTY]

tensioning plate 2

[Name] [Note] [QTY]

Socket head bolt with inner multipoint head M6X70.2 2

[Name] [Note] [QTY]

Socket head bolt with inner multipoint head M6X70.2 2

[Name] [Note] [QTY]

Socket head collared bolt with inner multipoint head M8X28 1

[Name] [QTY]

Not for this model 4

[Name] [QTY]

Clip 1

[Name] [Note] [QTY]

Socket head bolt with inner multipoint head (Kombi) M8X35 3

[Name] [QTY]

Socket head bolt with inner multipoint head (Kombi) 3

[Name] [Note] [QTY]

Hexagon collar nut M6 1

[Name] [Note] [QTY]

Spring band clamp 14X12 3

Non-return valve

[Name] [Note] [QTY]

Spring band clamp 14,5X12 3

[Name] [Note] [QTY]

Spring band clamp 14,5X12 1

[Name] [Note] [QTY]

Spring band clamp 16X12 2

[Name] [Note] [QTY]

Spring band clamp 16X12 1

[Name] [Note] [QTY]

return line 1

Non-return valve with hoses

contains: WHT 006 492

[Name] [QTY]

return line 1

Non-return valve

[Name] [Note] [QTY]

O-ring 3,3X1,4 1

green

only for: 03L 130 235 AF

[Name] [Note] [QTY]

O-ring 3,3X1,55 1

orange

only for: 03L 130 235 AF

[Name] [Note] [QTY]

O-ring 3,5X1,25 1

[Name] [Note] [QTY]

pressure pipe cylinder 1 1

[Name] [Note] [QTY]

pressure pipe cylinder 1 1

[Name] [Note] [QTY]

pressure pipe cylinder 2 1

[Name] [Note] [QTY]

pressure pipe cylinder 2 1

[Name] [Note] [QTY]

pressure pipe cylinder 3 1

[Name] [Note] [QTY]

pressure pipe cylinder 3 1

[Name] [QTY]

toothed belt pulley 1

[Name] [Note] [QTY]

pressure pipe cylinder 4 1

[Name] [Note] [QTY]

pressure pipe cylinder 4 1

[Name] [QTY]

pressure pipe 1

high pressure pump

[Name] [QTY]

pressure pipe 1

high pressure pump

[Name] [Note] [QTY]

Clamp 1-6X15 1

[Name] [Note] [QTY]

Oval hexagon socket head bolt M6X12 X

[Name] [Note] [QTY]

Oval hexagon socket head bolt M6X12 1

[Name] [QTY]

Fuel line 1

[Name] [QTY]

Fuel line 1

[Name] [Note] [QTY]

fuel pipe feed 1

see illustration, item: 127-040,8

[Name] [Note] [QTY]

see illustration: 127-050 X

[Name] [Note] [QTY]

Hexagon collar nut M18X1,5 1

[Name] [Note] [QTY]

Socket head collared bolt with inner multipoint head M8X90X80 2

[Name] [QTY]

hub 1

[Name] [Note] [QTY]

Fuel rail 1

also use: N 911 316 01 2

Accompanying details: N 91131601

[Name] [Note] [QTY]

Fuel rail 1

also use: N 911 316 01 1

[Name] [Note] [QTY]

Pressure regulating valve 1800 BAR 1

mating connector

4D0971992A Flat connector housing with contact locking mechanism 2 pin 1

black/blue

[Name] [Note] [QTY]

Pressure regulating valve 1600 BAR 1

with:

O-ring WHT 004 740

mating connector

4D0971992A Flat connector housing with contact locking mechanism 2 pin 1

black/blue

Possible single wire: 000 979 016 0,35 X

000 979 141 1,0 X

000 979 237 2,5 X

[Name] [Note] [QTY]

O-ring 20X2,6 1

[Name] [Note] [QTY]

O-ring 16X1,5 1

see drawing: N904519
