Seats

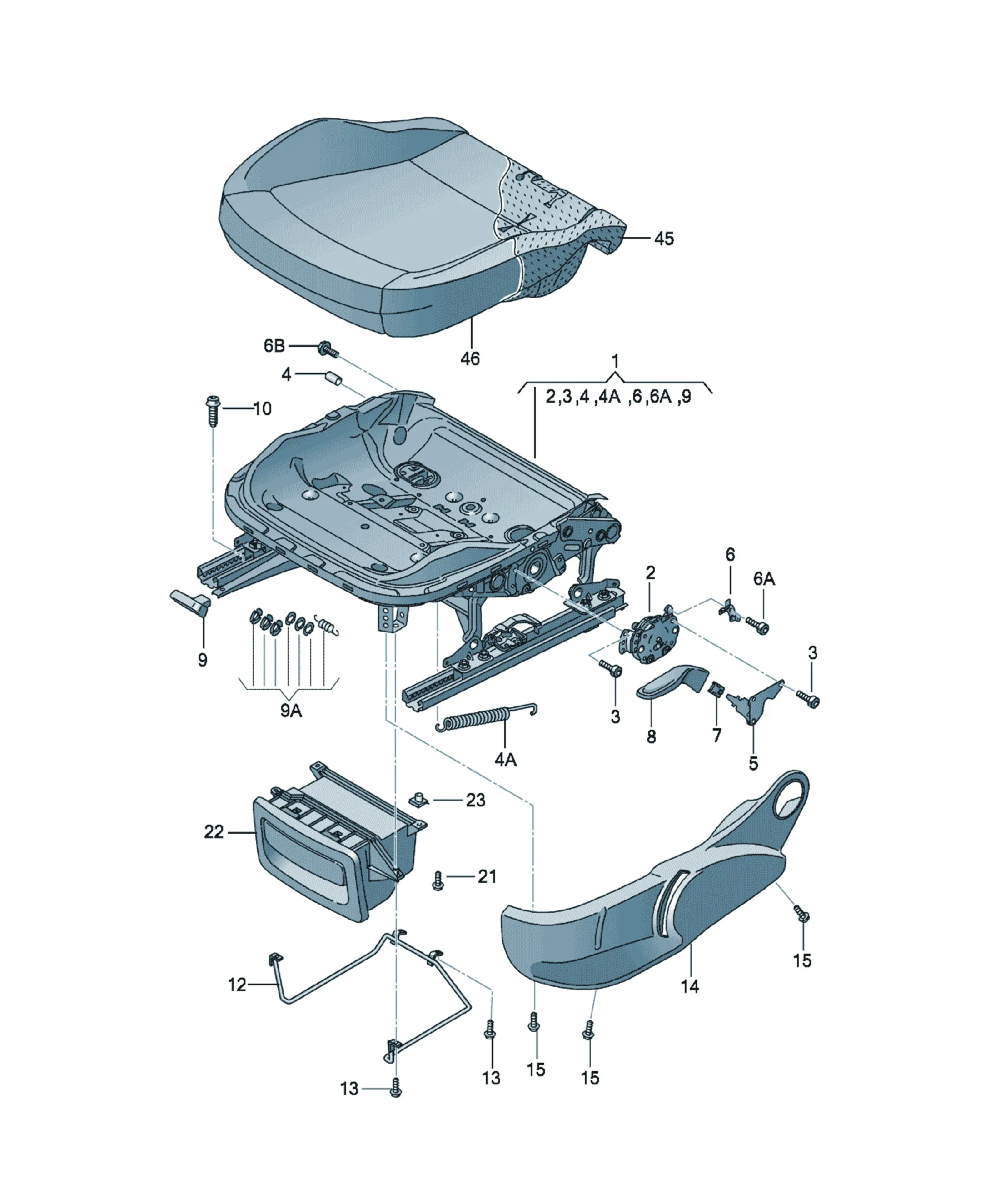

Front seat

Assembly diagrams

4 diagrams

Parts

109 parts

Bowden cable
8X0881271 Offers

[Name] [Note] [Model info] [QTY]
Bowden cable left a. right PR:3H9,5B0, 2
Note technical product information: 5B1
2023508/1
to be used for item: 1
Retaining clip
6Q0881727B Offers

[Name] [Note] [QTY]
Retaining clip 2
to be used for item: 1
Винт с цил.скругл.головкой с внут.TORX,резьбовыдавливающий
N90804901 Offers

[Name] [Note] [QTY]
Hexagon socket head collared bolt, thread forming M5X12 X
Sleeve
WHT007071 Offers

[Name] [Note] [Model info] [QTY]
Sleeve left a. right PR:N0Q,N1H, 2
to be used for item: 5 N2K,N2S+3L1,
3L2,3L3
6R3881106L Offers

[Name] [Note] [Model info] [QTY]
seat frame with height adjustment right PR:3H3,5B1+ 1
2 doors 3L2,3L3
6R4881105AA Offers

[Name] [Note] [Model info] [QTY]
seat frame with height adjustment left PR:3H0+3L1, 1
4-door 3L3
6R3881106M Offers

[Name] [Note] [Model info] [QTY]
seat frame with height adjustment right PR:3H9+3L3 1
2 doors
D - 05.03.2013>>
6R3881106K Offers

[Name] [Note] [Model info] [QTY]
seat frame with height adjustment right PR:3H9+3L3 1
2 doors
D >> - 04.03.2013
6R3881106M Offers

[Name] [Note] [Model info] [QTY]
seat frame with height adjustment right PR:5B0+3L2, 1
2 doors 3L3
D - 05.03.2013>>
6R3881106K Offers

[Name] [Note] [Model info] [QTY]
seat frame with height adjustment right PR:5B0+3L2, 1
2 doors 3L3
D >> - 04.03.2013
6Q4881105DA Offers

[Name] [Note] [Model info] [QTY]
Seat frame left PR:3H0+3L2 1
4-door
6Q3881106CR Offers

[Name] [Note] [Model info] [QTY]
Seat frame right PR:3H3,5B1+ 1
2 doors 3L1
6R3881105K Offers

[Name] [Note] [Model info] [QTY]
seat frame with height adjustment left PR:5B1+3L1, 1
2 doors 3L3
D >> - 04.03.2013
6R4881106AA Offers

[Name] [Note] [Model info] [QTY]
seat frame with height adjustment right PR:3H0+3L2, 1
4-door 3L3
6R3881105L Offers

[Name] [Note] [Model info] [QTY]
seat frame with height adjustment left PR:3H3,5B0+ 1
2 doors 3L1,3L3
6R3881105M Offers

[Name] [Note] [Model info] [QTY]
seat frame with height adjustment left PR:5B1+3L1, 1
2 doors 3L3
D - 05.03.2013>>
6Q3881105CR Offers

[Name] [Note] [Model info] [QTY]
Seat frame left PR:3H3,5B0+ 1
2 doors 3L2
6R3881105K Offers

[Name] [Note] [Model info] [QTY]
seat frame with height adjustment left PR:3H9+3L3 1
2 doors
D >> - 04.03.2013
6R3881105M Offers

[Name] [Note] [Model info] [QTY]
seat frame with height adjustment left PR:3H9+3L3 1
2 doors
D - 05.03.2013>>
6Q4881106DC Offers

[Name] [Note] [Model info] [QTY]
Seat frame right PR:3H0+3L1 1
4-door
N90892101 Offers

[Name] [Note] [QTY]
Socket head bolt with inner multipoint head M8X28 8
[Name]
footboard
No replacement part
N10671501 Offers

[Name] [Note] [QTY]
Oval hexagon socket head bolt M4X16 6
6J4881318J Offers

[Name] [Note] [Model info] [QTY]
Seat frame trim right PR:3H0+3L2, 1
4-door 3L3
6J3881318E4W4 Offers

[Name]
Carbon black
6J3881317D4W4 Offers

[Name]
Carbon black
6J3881318D4W4 Offers

[Name]
Carbon black
6J3881318D Offers

[Name] [Note] [Model info] [QTY]
Seat frame trim right PR:3H3,5B0, 1
2 doors 5B1,3H9+3L2,
3L3
6J3881317E4W4 Offers

[Name]
Carbon black
6J3881317E Offers

[Name] [Note] [Model info] [QTY]
Seat frame trim left PR:3H3,5B0, 1
2 doors 5B1+3L2
6J3881318E Offers

[Name] [Note] [Model info] [QTY]
Seat frame trim right PR:3H3,5B0, 1
2 doors 5B1+3L1
6J3881317D Offers

[Name] [Note] [Model info] [QTY]
Seat frame trim left PR:3H3,5B0, 1
2 doors 5B1,3H9+3L1,
3L3
6J4881318H4W4 Offers

[Name] [Note]
Carbon black 4-door
6J4881318H Offers

[Name] [Note] [Model info] [QTY]
Seat frame trim right PR:3H0+3L1 1
6J4881318J4W4 Offers

[Name]
Carbon black
6J4881317H4W4 Offers

[Name] [Note]
Carbon black 4-door
6J4881317H Offers

[Name] [Note] [Model info] [QTY]
Seat frame trim left PR:3H0+3L2 1
6J4881317J Offers

[Name] [Note] [Model info] [QTY]
Seat frame trim left PR:3H0+3L1, 1
4-door 3L3
6J4881317J4W4 Offers

[Name]
Carbon black
WHT001868 Offers

[Name] [Note] [QTY]
Oval socket head bolt with hex drive M4X11 8
6Q0881053B Offers

[Name] [Note] [QTY]
adjuster (height adjustment) left a. right 2
N10622401 Offers

[Name] [Note] [QTY]
Oval hexagon socket head bolt M5X18 2
6J0882601A4W4 Offers

[Name]
Carbon black
6J0882601A Offers

[Name] [Note] [Model info] [QTY]
drawer left PR:QN1,QN3 1
6J0882602C4W4 Offers

[Name]
Carbon black
6J0882602C Offers

[Name] [Note] [Model info] [QTY]
drawer right PR:QN2,QN3 1
N90475903 Offers

[Name] [Note] [QTY]
Speed nut M5X13,6X11,5 2
N90804901 Offers

[Name] [Note] [QTY]
Hexagon socket head collared bolt, thread forming M5X12 X
1J3881299A Offers

[Name] [QTY]
Mounting 1
6J0881375S Offers

[Name] [Note] [Model info] [QTY]
Seat padding left a. right PR:Q1D 2
for sports seat
D - 15.10.2013>>
6J0881375R Offers

[Name] [Note] [Model info] [QTY]
Seat padding left a. right PR:Q4H 2
for sports seat
6J0881375Q Offers

[Name] [Note] [Model info] [QTY]
Seat padding left a. right PR:Q1A 2
6J0881375P Offers

[Name] [Note] [Model info] [QTY]
Seat padding left a. right PR:Q1D 2
for sports seat
D >> - 14.10.2013
6J0881405MVIH Offers

[Name] [Note]
Mundaka grey -BU
6J0881405LAYC Offers

[Name] [Note]
black/grey -BW
D >> - 24.02.2014
6J0881405D Offers

[Name] [Note] [Model info] [QTY]
Seat covering (fabric) left a. right PR:N7B+4X0, 2
4X1
6J0881405DSIO Offers

[Name] [Note]
Galway grey -AI
D >> - 03.03.2014
6J0881405P Offers

[Name] [Note] [Model info] [QTY]
Seat covering (fabric) left a. right PR:N7B+4X3 2
6J0881405PBKL Offers

[Name] [Note]
Grey/anthracite -AI
D >> - 03.03.2014
6J0881405DSIO Offers

[Name] [Note]
Galway grey -AI
D - 04.03.2014>>
6J0881405QBVW Offers

[Name] [Note]
black/grey -BT
6J0881405M Offers

[Name] [Note] [Model info] [QTY]
Seat covering (fabric) left a. right PR:N7C,N2T 2
6J0881405MVIG Offers

[Name] [Note]
black/grey -BT
6J0881405L Offers

[Name] [Note] [Model info] [QTY]
Seat cover (leather) left a. right PR:N0K,N0Q 2
6J0881405LOLA Offers

[Name] [Note]
soul (black) -BT,BU
6J0881405LCBI Offers

[Name] [Note]
schwarz/flashrot -CA
6J0881405AA Offers

[Name] [Note] [Model info] [QTY]
Seat cover (leather) left a. right PR:N0K 2
6J0881405Q Offers

[Name] [Note] [Model info] [QTY]
Seat cover (leather) left a. right PR:N2S 2
6J0881405RCQD Offers

[Name] [Note]
Blue/black -10
6JL881405BAWQ Offers

[Name] [Note]
black/grey -BW
6J0881405R Offers

[Name] [Note] [Model info] [QTY]
seat cover (cloth/leatherette) left PR:N2K 1
6J0881405QJHF Offers

[Name] [Note]
black/beige -30
6JL881406 Offers

[Name] [Note] [Model info] [QTY]
Seat covering (fabric) right PR:N5F 1
6JL881406AWQ Offers

[Name] [Note]
black/grey -BW
6JL881406A Offers

[Name] [Note] [Model info] [QTY]
Seat covering (fabric) right PR:N5F 1
6JL881406AAWQ Offers

[Name] [Note]
black/grey -BW
6J0881406 Offers

[Name] [Note] [Model info] [QTY]
seat cover (cloth/leatherette) right PR:N2K 1
6J0881406CQD Offers

[Name] [Note]
Blue/black -10
6J0881405QMGL Offers

[Name] [Note]
black/grey -BW
6J0881405AAAYC Offers

[Name] [Note]
black/grey -BW
D - 25.02.2014>>
6J0881405QBVX Offers

[Name] [Note]
schwarz/flashrot -CA
6J0881405D Offers

[Name] [Note] [Model info] [QTY]
Seat covering (fabric) left a. right PR:N7B 2
6J0881405C Offers

[Name] [Note] [Model info] [QTY]
Seat covering (fabric) left a. right PR:N0D 2
6J0881405CVII Offers

[Name] [Note]
black/black -CA
6J0881405DSIO Offers

[Name] [Note]
Galway grey -AI
6JL881405B Offers

[Name] [Note] [Model info] [QTY]
Seat covering (fabric) left PR:N5F 1
6J0881405N Offers

[Name] [Note] [Model info] [QTY]
Seat cover (leather) left a. right PR:N1H 2
6J0881405NAWS Offers

[Name] [Note]
black/grey -BW
6J0881405S Offers

[Name] [Note] [Model info] [QTY]
Seat covering (fabric) left a. right PR:N3K 2
6J0881405SFSU Offers

[Name] [Note]
grey/blue -10
6JL881405A Offers

[Name] [Note] [Model info] [QTY]
Seat covering (fabric) left PR:N5F 1
6JL881405AAWQ Offers

[Name] [Note]
black/grey -BW
6Q0881245 Offers

[Name] [Note] [Model info] [QTY]
tension spring for height- adjustment outer PR:Q1A,Q4H 2
6J0881092B Offers

[Name] [Note] [Model info] [QTY]
operating lever for height adjustment right PR:3L2,3L3 1
6J0881091B Offers

[Name] [Note] [Model info] [QTY]
operating lever for height adjustment left PR:3L1,3L3 1
6Q0881548 Offers

[Name] [Note] [Model info] [QTY]
Retainer for cover right PR:3L2,3L3 1
for seat: right
6Q0881547 Offers

[Name] [Note] [Model info] [QTY]
Retainer for cover left PR:3L1,3L3 1
for seat: left
N90999801 Offers

[Name] [Note] [QTY]
Oval hexagon socket head bolt M4X8,5 2
N90699002 Offers

[Name] [Note] [Model info] [QTY]
fitted bolt, self-locking M8X24,5 PR:3H3 6
1K0881449 Offers

[Name] [QTY]
Retaining clip 2
5P0881253 Offers

[Name] [Note] [Model info] [QTY]
Handle for seat height adjust. left PR:3L1,3L3 1
5P08812531MM Offers

[Name]
persia black
5P0881254 Offers

[Name] [Note] [Model info] [QTY]
Handle for seat height adjust. right PR:3L2,3L3 1
5P08812541MM Offers

[Name]
persia black
3C0881254A Offers

[Name] [Note] [QTY]
handle: seat longit. adjustm. right 1
3C0881253A Offers

[Name] [Note] [QTY]
handle: seat longit. adjustm. left 1
3C0881254A9B9 Offers

[Name]
Satin black
3C0881253A9B9 Offers

[Name]
Satin black
6J0898031 Offers

[Name] [QTY]
repair kit for seat 1
comprising:
repair set
Coil spring 1
bush 3
ring 9X1 3
