Cylinder block

Cylinder block

Assembly diagrams

2 diagrams

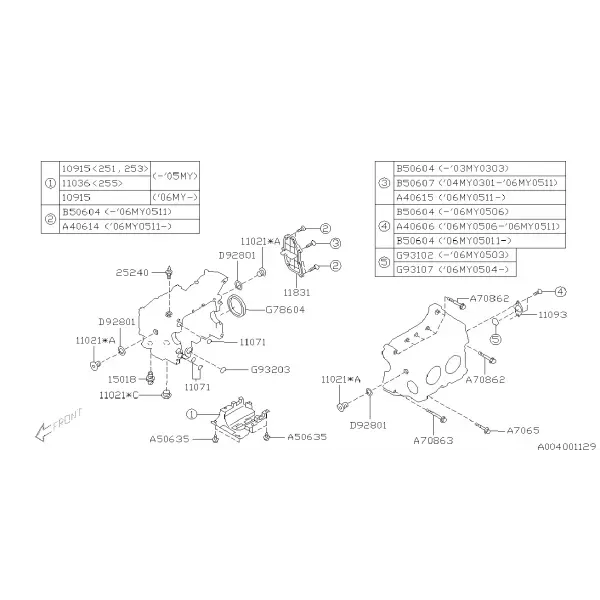

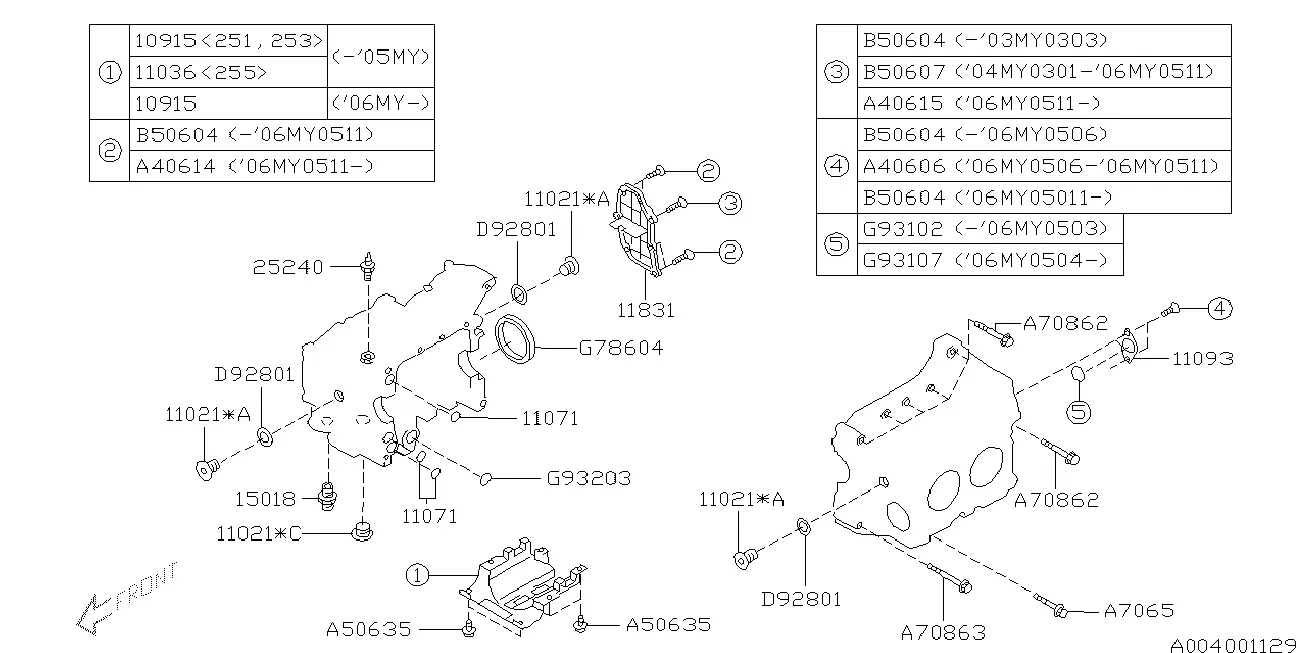

Cylinder block diagram

Parts

19 parts

Cylinder block baffle assembly
10915AA010 Offers

× 1
Cylinder block plug
11021AA020 Offers

× 1
Cylinder block plug
11021AA121 Offers

× 1
Cylinder block O-ring
10991AA001 Offers

× 1
Service hole cover
11093AA000 Offers

× 1
Oil separator cover
11831AA150 Offers

× 1
Union
15018AA050 Offers

× 1
Oil pressure sensor
25240KA040 Offers

× 1
Болт с углублением в головке
800406060 Offers

× 1
Гайка и шайба
800506350 Offers

× 1
Болт
800706500 Offers

× 1
Болт
800708620 Offers

× 1
Болт
800708630 Offers

× 1
Винт с потайной головкой
801506040 Offers

× 1
Винт с потайной головкой
801506070 Offers

× 1
Уплотнительная прокладка
803928010 Offers

× 1
Сальник
806786040 Offers

× 1
Уплотнительное кольцо
806931070 Offers

× 1
Уплотнительное кольцо
806932030 Offers

× 1
