Camshaft

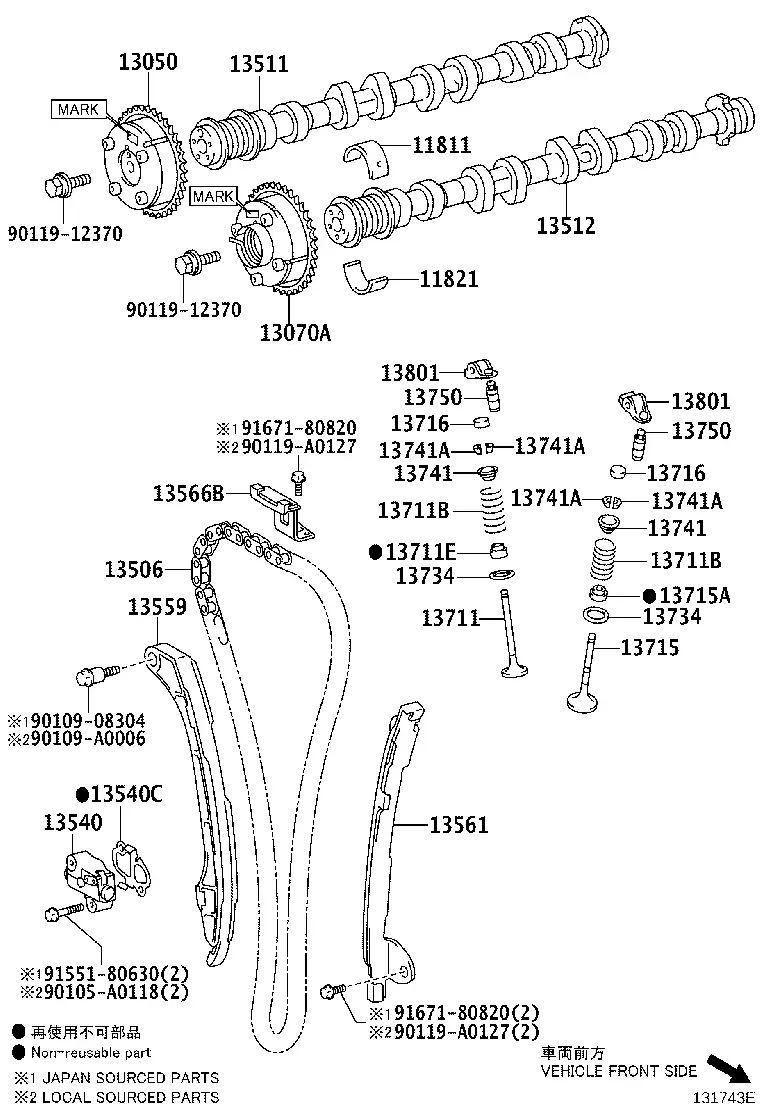

Camshaft and Valves
Assembly diagrams
2 diagrams
Parts
53 parts- Camshaft bearing
118110V020Offers - Camshaft bearing
1181136010Offers - Camshaft bearing No. 2
118210V020Offers - Camshaft bearing No. 2
1182136010Offers - VVT actuator
130500V040Offers - VVT actuator
1305036030Offers - Camshaft gear assembly
130700V040Offers - Camshaft gear assembly
1307036030Offers - Timing chain
135060V010Offers - Timing chain
1350636010Offers - Camshaft
135010V010Offers - Camshaft
1350136050Offers - Camshaft No. 2
135020V010Offers - Camshaft No. 2
1350236030Offers - Timing chain tensioner No. 1
135400V030Offers - Chain tensioner No. 1
1354036040Offers - Timing chain tensioner gasket
135520V010Offers - Timing chain tensioner gasket
1355236010Offers - Timing chain guide
135590V010Offers - Timing chain guide
1355936010Offers - Timing chain guide No. 1
135610V010Offers - Timing chain guide No. 1
1356136010Offers - Timing chain guide
135660V011Offers - Timing chain guide
1356636011Offers - Intake valve
137110V010Offers - Intake valve
1371136060Offers - Нажимная пружина
9050134016Offers - Нажимная пружина
9050134017Offers - Нажимная пружина
90501A0090Offers - Сальник или уплотнительное кольцо
9008031043Offers - Сальник или уплотнительное кольцо
9091302101Offers - Exhaust valve
137150V010Offers - Exhaust valve
1371536020Offers - Сальник или уплотнительное кольцо
9008031101Offers - Сальник или уплотнительное кольцо
9091302112Offers - Valve stem seal
1371675020Offers - Valve spring retainer
137340P010Offers - Valve spring retainer
1373462020Offers - Valve spring retainer
137410V010Offers - Valve spring retainer
1374120021Offers - Стопор пружины клапана
9091303028Offers - Стопор пружины клапана
90913A3001Offers - Hydraulic valve lifter
137500P020Offers - Hydraulic valve lifter
1375031030Offers - Valve rocker arm No. 1
138010P010Offers - Valve rocker arm No. 1
1380123011Offers 90105A0118Offers9010908304Offers90109A0006Offers9011912370Offers90119A0127Offers9155180630Offers9167180820Offers
