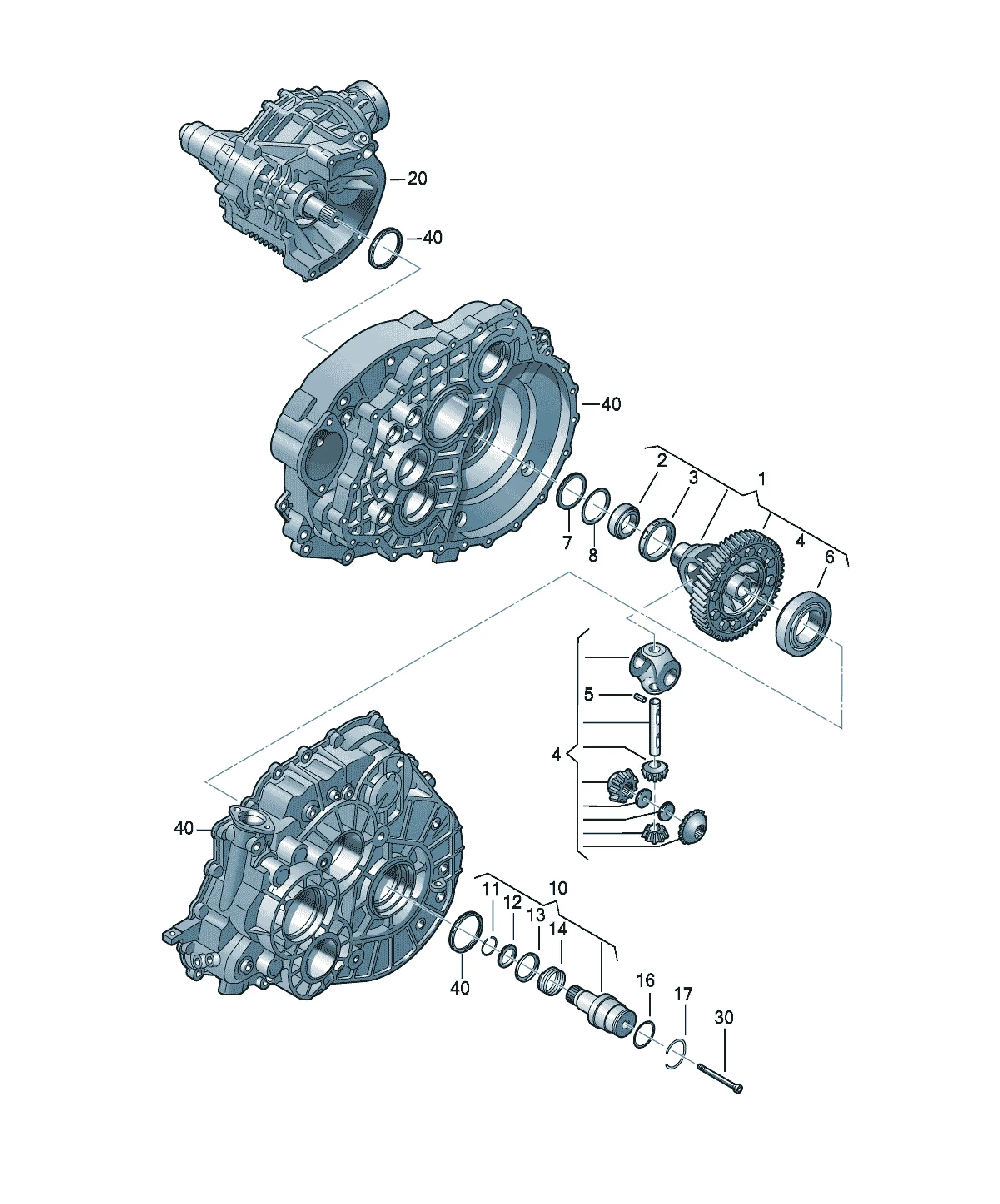

Differential

[Name] [Note] [Model info] [QTY]

Differential 67/14/19/17 KKJ,KQQ,KUG, 1

KVB,LMV,LMX

Replacements: 0A6409021K

[Name] [Note] [Model info] [QTY]

Differential 66/15/20/18 KVC,LMU 1

Replacements: 0A6409021L

[Name] [QTY]

Stub shaft 1

[Name] [QTY]

Stub shaft 1

Replacements: 0A6409343C

[Name] [Note] [QTY]

Securing ring 30,5 1

[Name] [QTY]

tapered ring 1

[Name] [Note] [QTY]

thrust washer 32X47 1

[Name] [QTY]

Pressure spring 1

[Name] [Note] [QTY]

O-ring 28X2,5 1

[Name] [QTY]

snap ring 1

[Name] [Note] [QTY]

Taper roller bearing 55X90X23 1

Replacements: 0A5409123B

[Name] [Note]

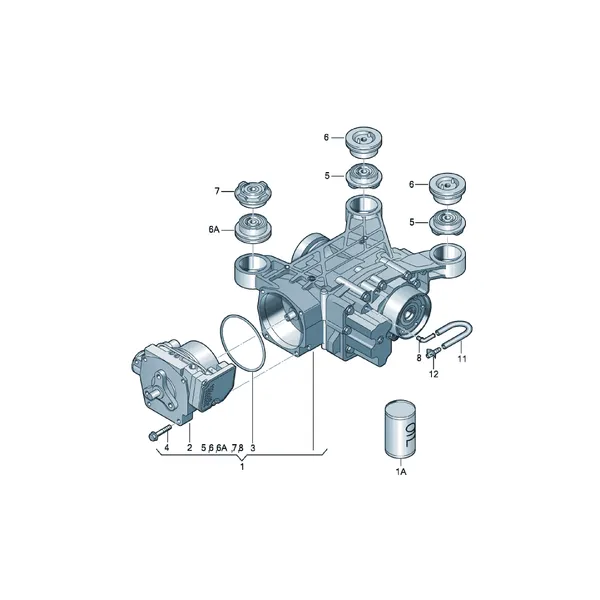

final drive

see illustration, item: 409-040,1

[Name]

impulse rotor

Not for this model

[Name] [Note] [QTY]

Socket head bolt with hexagon socket head M8X45,9 1

[Name]

1 set: differential pinions

Not for this model

[Name] [Note]

Gear housing

see illustration, item: 301-040,2

[Name] [Note] [QTY]

Spring pin 5,4X35 1

[Name] [Note] [QTY]

Taper roller bearing 55X90X23 1

Replacements: 0A5409123B

[Name] [Note] [QTY]

Washer 62X78X2,8 1

[Name] [Note] [QTY]

1 set shims 0,65-1,25 X

repair set

0A5409114 adjusting washer 0,65 1

0A5409114A adjusting washer 0,70 1

0A5409114B adjusting washer 0,75 1

0A5409114C adjusting washer 0,80 1

0A5409114D adjusting washer 0,85 1

0A5409114E adjusting washer 0,90 1

0A5409114F adjusting washer 0,95 1

0A5409114G adjusting washer 1,00 1

0A5409114H adjusting washer 1,05 1

0A5409114J adjusting washer 1,10 1

0A5409114K adjusting washer 1,15 1

0A5409114L adjusting washer 1,20 1

0A5409114M adjusting washer 1,25 1
